59350 | 6 Inch Ford Suspension Lift Kit w/ Vertex Reservoir Shocks (Diesel Engine)

Ford
2005-2007 F-250 Super Duty 4wd
2005-2007 F-350 Super Duty 4wd

59350
Pricing: $3,561.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.

NOTES - IMPORTANT
Does NOT fit dually models.
If vehicle is equipped with rear overload leafs, they will need to be removed.

SPECS
SKU 59350
Est. Install Time 6-8 hours
Recommended Tire Size 37x13.50
Recommended Wheel Backspacing 4.5in

Vehicle Applications

2005 - 2007 Ford F-250 Super Duty
2005 - 2007 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit gas engine models.
Does NOT fit dually models.
If vehicle is equipped with rear overload leafs, they will need to be removed.

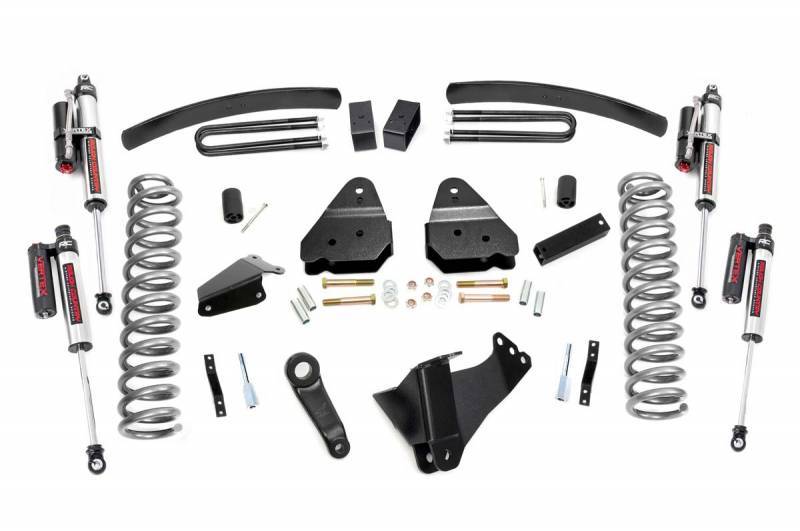

Components

FRONT
Lifted coil springs
Radius arm drop brackets
Sway-bar link extensions
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
3in lift blocks
Add-a-leafs
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Vertex Reservoir Shocks

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
