33970 | Rough Country 6 Inch Lift Kit For Ram 1500 4WD | 2019-2023 | With 22" Factory Wheels, Strut Spacers, V2 Shocks
6 Inch Lift Kit For Ram 1500 4WD | 2019-2023 | With 22" Factory Wheels, Strut Spacers, V2 Shocks | NOT Fit Air Ride Suspension, 2019 "Classic", "TRX" & AWD Models
Description
Transform your 5th generation RAM 1500 into an absolute BEAST with Rough Country’s 6in Suspension Lift Kit. This all-inclusive kit comes with everything you need to give your truck an aggressive look and a formidable stance that complements the revamped design and upgraded look of this rugged vehicle.
Rough Country’s 6in Suspension Lift gives you plenty of increased ground clearance for off-road action and enough additional ride height to run up to 35in tires for a head-turning look that’s sure to command attention.
Each kit features a set of high-quality front and rear crossmembers with a laser-cut RC logo, giving the truck a fierce, but streamlined look after lifting. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance. This kit also includes an upgraded outer tie-rod that’s engineered to optimize turning and minimize bump steer while allowing you to fit a wider variety of wheels.
Best of all? You'll achieve better performance, bigger tires, and considerable protection all without sacrificing the look of your truck. All components are specifically designed to keep things nice and tidy underneath, utilizing drop brackets to promote proper geometry and leaving nothing hanging out in plain sight. Includes Rough Country’s Lifetime Replacement Guarantee.
FEATURES
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Fits Rebel Models
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT fit models with factory air ride suspension.
- Kit is not recommended for AWD models.
- Does NOT fit 2019 "classic" models (5-lug)
- "TRX" models will achieve approximately 1" of additional lift.
- This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
SPECS
- Est. Install Time 7-8 hours
Vehicle Applications
NOTES - IMPORTANT
Does NOT fit models with factory air ride suspension.
Kit is not recommended for AWD models.
Does NOT fit 2019 "classic" models (5-lug)
"TRX" models will achieve approximately 1" of additional lift.
This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift.
Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.

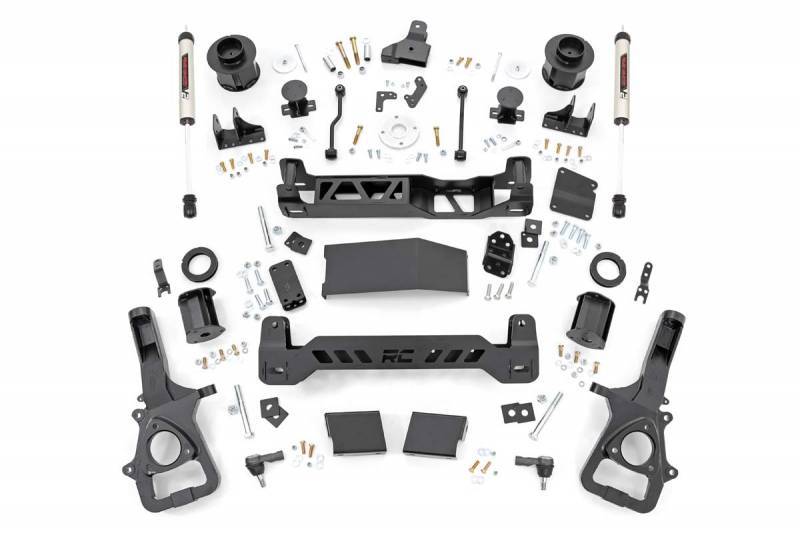

Components
Lifted knuckles
Strut spacers
Front crossmember
Differential drop brackets
Driveshaft spacer
Sway-bar drop brackets
Skid plate
Hardware
REAR
Coil spacers
Rear crossmember
Sway-bar links
Track bar bracket
Bump-stop extensions
Brake line brackets
Hardware
SHOCKS
(2) Rear Shocks
Tire & Wheels
35x12.50R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 -
35x12.50R20 20x10 6x5.5 -25 -
35x12.50R20 20x10 6x5.5 -24 -
35x12.50R20 20x10 6x5.5 -19 -
35x12.50R20 20x10 6x5.5 -18 -
35x12.50R20 20x12 6x5.5 -44 Trimming required
35x12.50R22 22x10 6x5.5 -25 -
35x12.50R22 22x10 6x5.5 -24 -
35x12.50R22 22x10 6x5.5 -19 -
35x12.50R22 22x10 6x5.5 -18 -
35x12.50R22 22x12 6x5.5 -44 Trimming required
35x12.50R24 24x12 6x5.5 -44 Trimming required
Details
- 33970
- 33970
- 843030189433
- Rough Country
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 125.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
