51014 | Rough Country 3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Aluminum Finish, Strut Spacers With N3 Rear Shocks

3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Aluminum Finish, Strut Spacers With N3 Rear Shocks | NOT Fit Regular/Standard Cab Models & Seven Lug Models

SKU: 51014

Pricing: $768.95

Description
Application List
Component List
Tires & Wheels
Details
Shipping
Documents

Description

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.

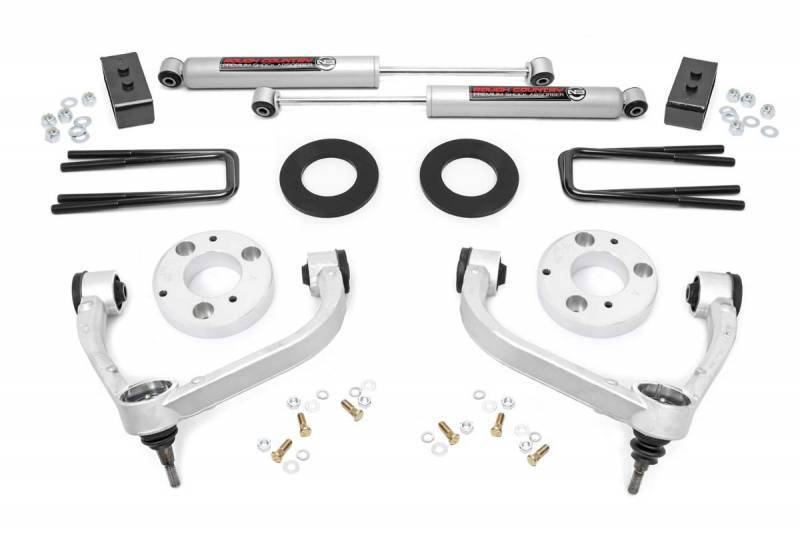

This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

Easy Bolt-On installation
No Cutting or Drilling required!
Includes New forged aluminum upper control Arms
Control arms keep ball joints at optimum angles for less wear and tear
Control arms include Clevite rubber bushings for enhanced durability
Increased ground clearance
Levels the front and rear of the truck
Can be returned to stock
Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
Lifetime Replacement Warranty*

OPTIONAL N3 LOADED STRUTS

Maintains smooth, factory-like ride
Increased ground clearance
Nitrogen-charged
Engineered for lifted applications
Infinitely Variable Damping
Leak-proof piston seal
Massive 1 3/8in Bore
Silver powder coat finish
3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty

OPTIONAL VERTEX COILOVERS

8-Stage Adjustable Damping
Monotube Design
Nitrogen-charged
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body
3-year Manufacturer's Warranty

Fitment Notes

Does NOT fit regular/standard cab models.
Does NOT fit seven lug models.
SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

Specifications

Est. Install Time 5-6 hours

Application List

2014 - 2020 Ford F-150 Pickup

Fitment Notes
Does NOT fit regular/standard cab models.
Does NOT fit seven lug models.
SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
