K1014 | Superlift 3.5 Inch Ford Suspension Lift Kit w/ Shadow Shocks 2019-2023 Ranger)

2019-2023 Ford Ranger 4WD

K1014
Pricing: $1,042.49
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete 3.5” lift kit for the 2019-2021 Ford Ranger 4WD
Provides 3.5” lift height

What does it include?

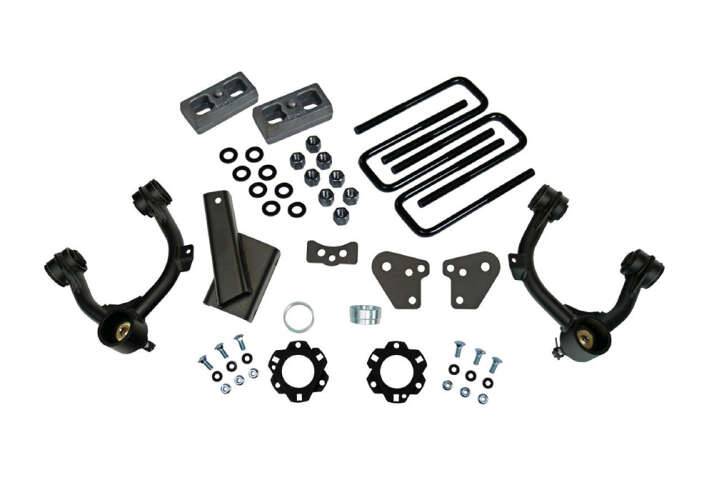

Replacement Front upper control arms, pre-load spacer, strut spacers, rear shocks, differential spacers, and rear block kit
Detailed instruction manual walking you step-by-step through the leveling kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
The best customer service and technical help in the industry

Superlift’s 3.5-inch UCA Lift kit for the 2019-2021 Ford Ranger 4WD is a simple solution for adding more height than just a “leveling kit”. These kits have a strong, modern die-formed design constructed of DOM tubing, beefy gussets and include CNC machined ball joint cup. The UCAs include a pre-installed MOOG® ball joint and bushings for long lasting performance and durability. By using the UCAs, this lift offers a better ride quality and performance over taller leveling spacers.

This kit also includes a differential drop spacers, rear block kit, and rear Shadow Series Shocks. All parts are included to make sure your Ford Ranger handle and performs just like a stock truck.

Superlift’s 3.5-inch Ford Ranger Lift kit is an installer friendly and is backed by a lifetime warranty and Lift Force supplemental powertrain warranty.

Features:
A simple and Super-EZ bolt-on installation
UCA’s include pre-installed MOOG® ball joints and bushings
CNC machined ball joint socket and bushing eye ring for precise fit.
UCA’s include pre-installed MOOG® ball joints and bushings for ease of installation
Front lift is achieved with combination of Pre-load ring and Strut Spacers (3.5 Inch)
Rear lift is achieved with a Block, U-Bolt (1.5 Inch)
Backed by our Limited Lifetime Warranty and LIFT FORCE warranty

Benefits:
Increased Ground Clearance
No drilling of the OEM steering knuckle
OE Like Ride Quality
Levels front to rear of the vehicle

Notes:
Installation time: 4 hours
Difficulty level: 3 of 5

Application List

2019-2023 Ford Ranger 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
285/70R17 17x9 - Stock
285/65R18 18x9 - Stock
285/55R20 20x9 - +30MM

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 79.0 lbs.
  • W33.0000” x H12.5000” x L23.2500”
