74231 | Rough Country 3.5 Inch Lift Kit With Upper Control Arms For Toyota Tacoma 2/4WD | 2005-2023 | Front Lifted Struts, Rear N3 Shocks

3.5 Inch Lift Kit With Upper Control Arms For Toyota Tacoma 2/4WD | 2005-2023 | Front Lifted Struts, Rear N3 Shocks | NOT Fit 5 Lug, T/X Baja, XSP-X Models

74231
Pricing: $1,117.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Rough Country's 3.5in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for Toyota Tacoma.

This kit features a set of high-quality, lightweight forged aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3.5-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of loaded N3 struts and fabricated rear blocks to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for larger tires while offering a clean, level look from front to rear.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring an easy installation process that requires minor cutting and drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

  • Easy installation.
  • Increased ground clearance.
  • Maintains factory ride quality.
  • Levels the front with the rear of the vehicle.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

OPTIONAL N3 LOADED STRUTS

  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX COILOVERS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Requires minor cutting.
  • Does NOT fit models with 5 lug wheels.
  • Does NOT fit T/X Baja models.
  • Does NOT fit XSP-X models.
  • A carrier-bearing drop bracket is advised for trucks equipped with a 2-piece rear driveshaft. SKU: 1776BOX1.

SPECS

  • Est. Install Time 2-4 hours

Vehicle Applications

2005 - 2023 Toyota Tacoma

NOTES - IMPORTANT
Requires minor cutting Does NOT fit models with 5 lug wheels.
Does NOT fit T/X Baja models.
Does NOT fit XSP-X models.
Does NOT fit PRO4X models.

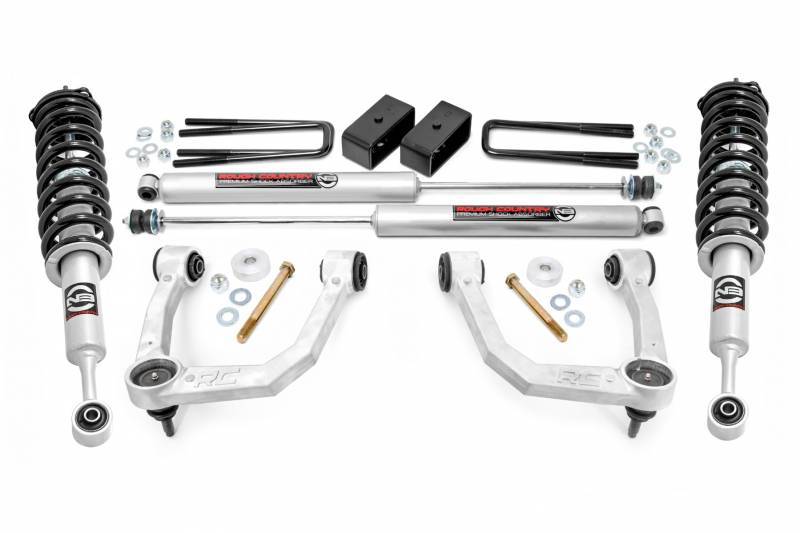

Components

FRONT
(2) Upper control arms
(2) N3 Loaded Struts
(2)Differential spacers
Hardware

REAR
2in lift blocks
U-bolts
Hardware

SHOCKS
(2) Rear Shocks

Tires & Wheels

285/75R16 Factory 16 6x5.5 - 0.25 Spacer
285/70R17 Factory 17 6x5.5 - 0.25 Spacer
285/75R16 16x8 6x5.5 +0 Minor Trimming
285/70R17 17x8.5 6x5.5 +0 Minor trimming
265/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 Minor trimming
265/70R17 17x8.5 6x5.5 +1 -
265/70R17 17x9 6x5.5 -12 -
285/70R17 17x9 6x5.5 -12 Minor trimming
285/70R17 17x9 6x5.5 +0 Minor trimming
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 Minor trimming
265/70R17 17x9 6x5.5 +1 -
285/65R18 18x8.5 6x5.5 +0 Minor trimming
265/70R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 Minor trimming
265/70R18 18x8.5 6x5.5 +1 -
265/70R18 18x9 6x5.5 -12 -
285/65R18 18x9 6x5.5 +0 Minor trimming
265/70R18 18x9 6x5.5 +0 -
275/65R18 18x9 6x5.5 -12 Minor trimming
285/65R18 18x9 6x5.5 -12 Minor trimming
285/65R18 18x9 6x5.5 +1 Minor trimming
265/70R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 Minor trimming
285/65R18 18x9 6x5.5 +20 Minor trimming
275/65R18 18x10 6x5.5 -24 Trimming required
285/65R18 18x10 6x5.5 -24 Trimming required
285/55R20 20x9 6x5.5 +0 Minor trimming
285/55R20 20x9 6x5.5 +1 Minor trimming
285/55R20 20x9 6x5.5 +18 Minor trimming
285/55R20 20x9 6x5.5 +20 Minor trimming
285/55R20 20x10 6x5.5 -25 Trimming required
285/55R20 20x10 6x5.5 -24 Trimming required
285/55R20 20x10 6x5.5 -19 Trimming required
285/55R20 20x10 6x5.5 -18 Trimming required
285/55R22 22x10 6x5.5 -25 Trimming required
285/55R22 22x10 6x5.5 -24 Trimming required
285/55R22 22x10 6x5.5 -19 Trimming required
285/55R22 22x10 6x5.5 -18 Trimming required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
