K255B | Superlift 6 inch Suspension Lift Kit with Bilstein Shocks (2020-2023 Silverado, Sierra 2500HD, 3500 HD 4WD)

2020-2023 Chevrolet Silverado 2500 HD, 3500 HD 4WD | 2020-2023 GMC Sierra 2500 HD, 3500 HD 4WD

K255B
Pricing: $3,794.69
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete 6” lift kit for the 2020-2021 Chevy Silverado and GMC Sierra 2500HD and 3500HD
Provides 6” of Lift height

What does it include?

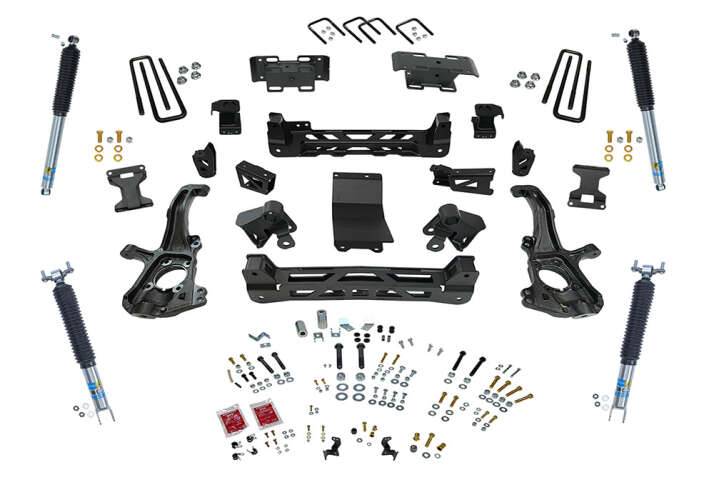

Steering knuckles, crossmembers, “No Drop” torsion bar brackets, bump stops, belly pan, brakeline brackets, front sway bar links, Front and Rear Bilstein 5100 Series Shocks, and all hardware specific
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

6 Inch Lift Kit – 2020-2022 Chevrolet Silverado and GMC Sierra 2500 | 3500 HD

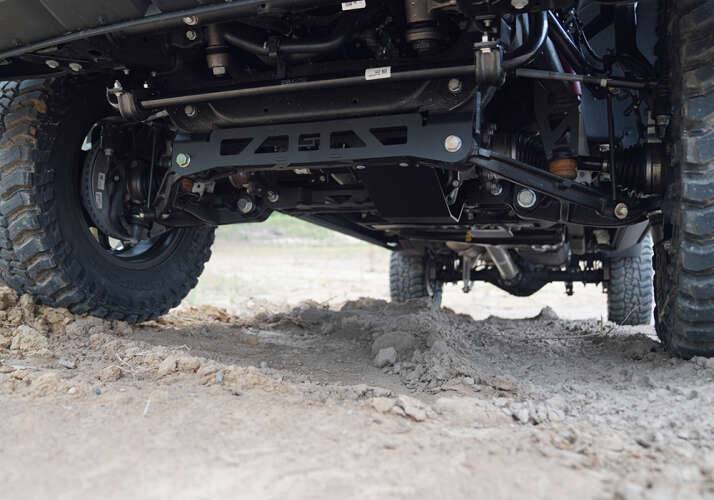

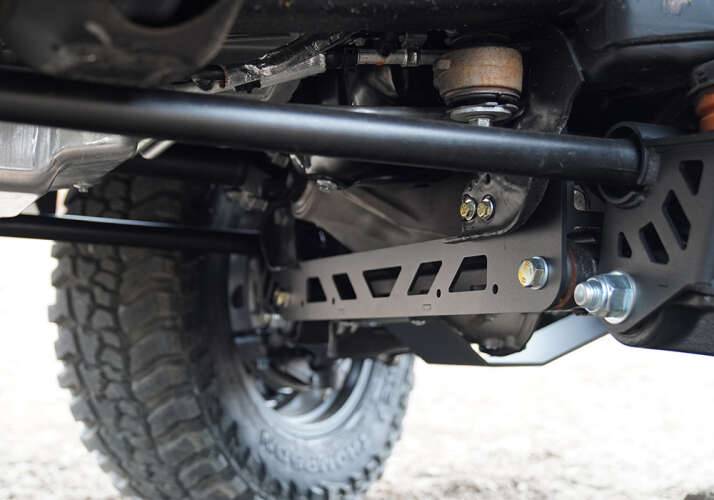

Superlift’s 6 Inch Lift kit for the 2020-2022 Silverado and Sierra 2500HD and 3500 HD utilizes a “NO DROP” Torsion Bar relocation bracket that keeps the torsion bar crossmember raised up and in the stock location. This design maximizes ground clearance at the frame for a clean look and prevents damaging the torsion bar assembly while off-roading. Precision CNC Machines Steering Knuckles and heavy duty lower control arm crossmembers insure your Silverado or Sierra will have and maintain perfect alignment specifications.

This Kit features the following Shock options: Shadow Shocks or Front and Rear Bilstein 5100 Series Shocks.

The rear lift is achieved with a heavy duty fabricated rear block. The primary axle u-bolts are captured in the upper and lower plates with the secondary u-bolts attached to the OE leaf Spring to reduce pinion wrap. Fully functional, axle mounted, compression stop system prevents over compression.

This kit includes steering knuckles, crossmembers, torsion bar brackets, front sway bar links, belly pan, brake line brackets, bump stops, rear block kit and shocks. All required parts are included to make sure your Silverado or Sierra handles and performs just like a stock truck!

Superlift’s 6-inch 2020-2022 GM 2500|3500 HD UCA Lift kit is an installer friendly and is backed by a lifetime warranty and Lift Force supplemental powertrain warranty.

Features:
Made in the USA
Front and Rear Bilstein 5100
Adds Clearance for 37 Inch diameter Tires
Maximum Ground Clearance
Rear lift is achieved with Block and & U-bolt Kit
“No Drop” Torsion Bar Brackets
Backed by our Limited Lifetime Warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.
Compatible with Factory Stabilitrac® and Anti-skid control features (No Problem or irritating dash lights)
No Excessive Ball Joint or Steering Components

NOTES:
Installation time: 8 to 9 Hours
Difficulty level: 3 of 5

DOES NOT FIT DUALLY MODELS
DOES NOT WORK WITH FACTORY WHEELS
DOES NOT FIT 'MAGNARIDE' MAGNETIC RIDE CONTROL MODELS
GAS MODELS MAY REQUIRE EXHAUST MODIFICATION FOR FRONT DRIVESHAFT CLEARANCE

**Due to the differences in manufacturing and dimensions in the Silverado vs Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation
**Due to GM larger Front brakes on the 2020-2022, Check with Aftermarket wheel manufacturer for wheel compatibility on 2020-2022

Application List

2020-2023 Chevrolet Silverado 2500 HD 4wd
2020-2023 Chevrolet Silverado 3500 HD 4wd
2020-2023 GMC Sierra 2500 HD 4wd
2020-2023 GMC Sierra 3500 HD 4wd

NOTES:
DOES NOT WORK WITH MAGNETIC RIDE CONTROL MODELS
DOES NOT FIT DUALLY MODELS
DOES NOT WORK WITH FACTORY WHEELS

Tires & Wheels

Tire Wheel Backspacing Offset 37 x 12.5 20 x 9 5" -

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
