75331 | 4.5in Toyota Suspension Lift Kit w/ N3 Struts (07-15 Tundra)
Toyota | 2007-2015 Tundra 2/4wd
75331
Pricing:
$1,997.95
Description
Take your Toyota Tundra to the next level with Rough Country's 4.5in Suspension Lift for 07 & up models. With heavy-duty components and a high-clearance design, this kit offers aggressive looks, unparalleled off-road performance, and enough ride height to run up to 35in tires.
Instantly gain a meaner lifted and level stance with high-quality equipment that's made to handle the hazards of high-performance while withstanding the test of time. A set of durable lifted knuckles, high-clearance front and rear crossmembers, upper strut spacers, and long-lasting, fabricated rear blocks give you plenty of lift and uncompromised toughness.
This all-inclusive kit features everything you need to take your Tundra off the tread and through the trenches; featuring steering stops, brake line brackets, differential drop brackets, sway-bar drop brackets, and anything else one would need to keep everything working at optimum angles after lifting. Best of all, you can get up and running with Rough Country's 4.5in Toyota Tundra Lift at a price that won't break the bank!
Instantly gain a meaner lifted and level stance with high-quality equipment that's made to handle the hazards of high-performance while withstanding the test of time. A set of durable lifted knuckles, high-clearance front and rear crossmembers, upper strut spacers, and long-lasting, fabricated rear blocks give you plenty of lift and uncompromised toughness.
This all-inclusive kit features everything you need to take your Tundra off the tread and through the trenches; featuring steering stops, brake line brackets, differential drop brackets, sway-bar drop brackets, and anything else one would need to keep everything working at optimum angles after lifting. Best of all, you can get up and running with Rough Country's 4.5in Toyota Tundra Lift at a price that won't break the bank!
FEATURES
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- No strut disassembly or strut compressor required for installation.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
N3 STRUTS
- Maintains smooth, factory-like ride
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Increased ground clearance
- Only fits 4WD models
- 3-year Limited Warranty
NOTES - IMPORTANT
- N3 Loaded Struts are ONLY for 4WD models.
- Does NOT fit Pro Series models
- Does NOT fit Rock Warrior models
- Does NOT fit XSP-X models.
- Minor cutting and drilling is required.
- Requires 18-inch or larger wheels.
- Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
- In some cases minor trimming may be needed to clear 35-inch tires.
- On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.
SPECS
| Est. Install Time | 8-10 hours |
|---|---|
| SKU | 75331 |
Application List
2007-2015 4WD Toyota Tundra
2007-2015 2WD Toyota Tundra
NOTES - IMPORTANT
N3 Loaded Struts are ONLY for 4WD models.
Does NOT fit Pro Series models
Does NOT fit Rock Warrior models
Does NOT fit XSP-X models.
Minor cutting and drilling is required.
Requires 18-inch or larger wheels.
Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
In some cases minor trimming may be needed to clear 35-inch tires.
On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.
2007-2015 2WD Toyota Tundra
NOTES - IMPORTANT
N3 Loaded Struts are ONLY for 4WD models.
Does NOT fit Pro Series models
Does NOT fit Rock Warrior models
Does NOT fit XSP-X models.
Minor cutting and drilling is required.
Requires 18-inch or larger wheels.
Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
In some cases minor trimming may be needed to clear 35-inch tires.
On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.

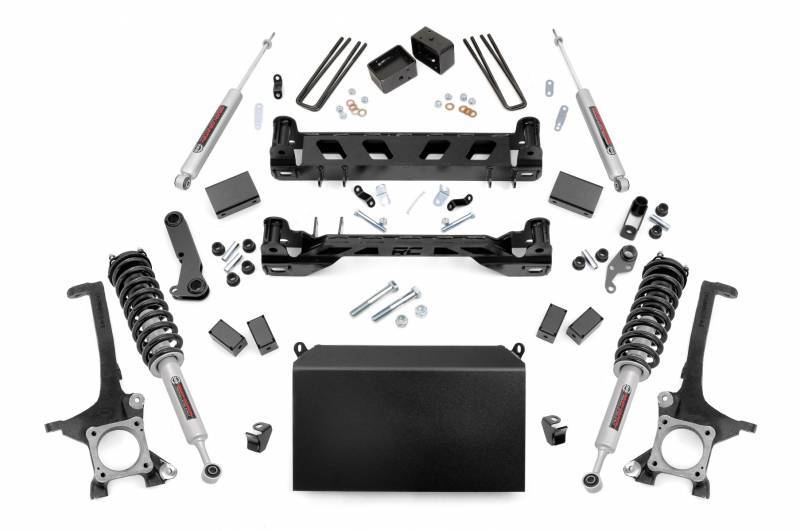

Components
FRONT
Lifted knuckles
Premium N3 Lifted Struts
Front crossmember
Rear crossmember
Steering stops
Brake line brackets
Differential drop brackets
Bumpstop brackets
Sway-bar brackets
Lower skid plate
Hardware
REAR
Fabricated lift blocks
U-bolts
Brake line brackets
Hardware
SHOCKS
(2) Premium N3 Series (Rear)
Lifted knuckles
Premium N3 Lifted Struts
Front crossmember
Rear crossmember
Steering stops
Brake line brackets
Differential drop brackets
Bumpstop brackets
Sway-bar brackets
Lower skid plate
Hardware
REAR
Fabricated lift blocks
U-bolts
Brake line brackets
Hardware
SHOCKS
(2) Premium N3 Series (Rear)
Tires & Wheels
| Tire | Wheel | Bolt Pattern | Offset | Note |
|---|---|---|---|---|
| 35x12.50R18 | 18x8.5 | 5x150 | +0 | Minor Trimming |
| 35x12.50R18 | 18x8.5 | 5x150 | +1 | Minor Trimming |
| 35x12.50R18 | 18x9 | 5x150 | -12 | Minor Trimming |
| 35x12.50R18 | 18x9 | 5x150 | +0 | Minor Trimming |
| 35x12.50R18 | 18x9 | 5x150 | +1 | Minor Trimming |
| 35x12.50R18 | 18x9 | 5x150 | +18 | - |
| 35x12.50R18 | 18x9 | 5x150 | +20 | - |
| 35x12.50R20 | 20x9 | 5x150 | -12 | Minor Trimming |
| 35x12.50R20 | 20x9 | 5x150 | +0 | Minor Trimming |
| 35x12.50R20 | 20x9 | 5x150 | +1 | Minor Trimming |
| 35x12.50R20 | 20x9 | 5x150 | +18 | - |
| 295/60R20 | 20x9 | 5x150 | +18 | - |
| 35x12.50R20 | 20x9 | 5x150 | +20 | - |
| 295/60R20 | 20x9 | 5x150 | +20 | - |
| 295/60R20 | 20x10 | 5x150 | -19 | Trimming Required |
| 295/60R20 | 20x10 | 5x150 | -18 | Trimming Required |
| 295/50R22 | 22x10 | 5x150 | -19 | Trimming Required |
| 295/50R22 | 22x10 | 5x150 | -18 | Trimming Required |
