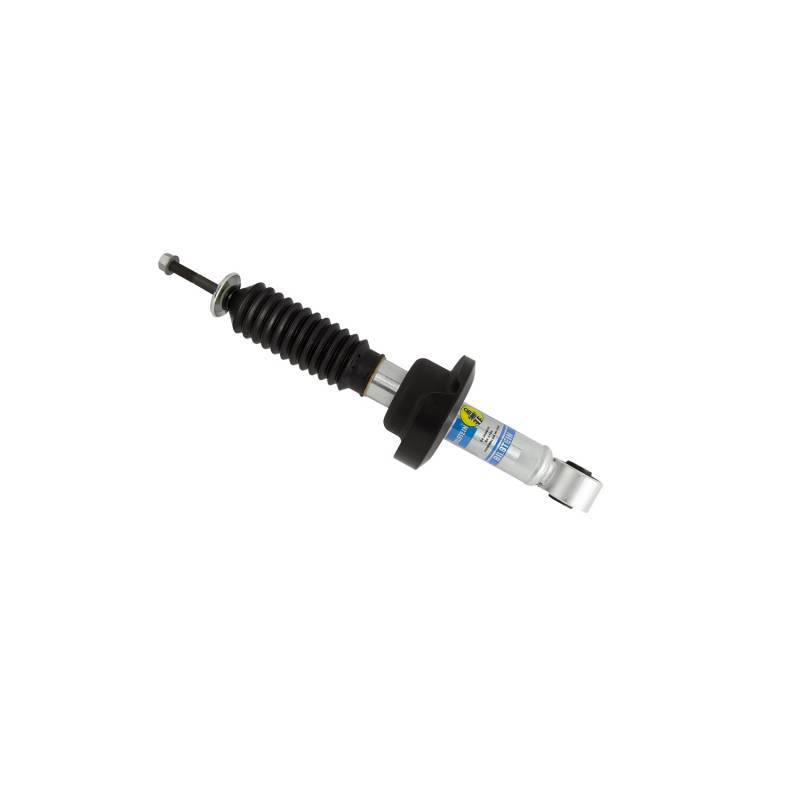

24-266659 | Bilstein B8 5100 Series Adjustable Front Shock (2016-2024 Titan XD 4WD)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• Collapsed Length (in) :11.26
• Extended Length (in) :16.41
• Collapsed Length (mm) :286.1
• Extended Length (mm) :416.9
• Finish :Zinc Plated
• Reservoir :No
• Body Design :Snap Ring Grooved Body (Coilover)
• Body Diameter (id) :46mm
• Replacement Mounting Kit: B4-KT1-Z352A00
• Spring Seat Included :Yes
• Adjustable Damping :Non-Adjustable

Details

• Applications :Y
• Country of Origin :US
• Quantity per Vehicle :2
• UPC :00651860804736
• Warranty :Limited Lifetime Warranty
• Position :Front
