50781 | McGuaghys 7 to 9 Inch Lift Kit 2014-2018 GM Truck 1500 4WD STAMPED STEEL or ALUMINUM factory control arms

7″-9″ Premium Lift kit | For vehicles with STAMPED STEEL or ALUMINUM factory control arms only
Lift kit comes powder-coated silver

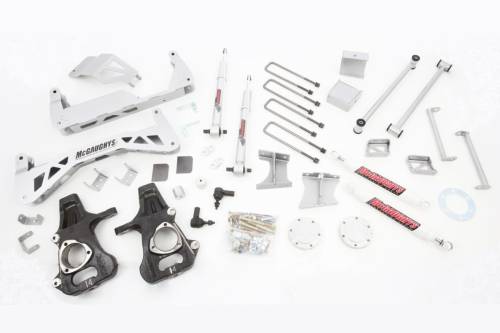

Kit Includes:
(2) Spindles
(1) Front Crossmember
(1) Rear Crossmember
(2) Compression Struts
(1) Skid Plate
(2) Lift Blocks w/ U-bolts & Hardware
(2) Differential Drop Brackets
(2) CV Axle Spacers
(2) Lower A-Frame Support Rods
(4) Compression Strut Brackets
(2) Sway Bar Drops
(2) Sway Bar Extenders
(1) Wheel Spacer
(2) Re-Enforcement Plates
(2) Tie-rods
(2) Front Brake Line Brackets
(2) Rear Shocks
(2) Adjustable Lift Struts

Fitment
2014-2018 GM 1500 Trucks 4wd Models

Vehicle must have STAMPED STEEL or ALUMINUM factory control arms | If factory arms are cast steel, then this lift kit will not fit

Optional Add-Ons

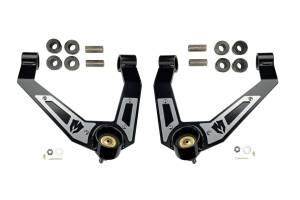

MS50785 Upper Control Arms (sold separately)
MS51052 Billet Ball Joint Caps for Upgraded Upper Control Arms (sold separately)
MS50115 Upgraded Compression Struts (sold separately)
MS50716 Traction Bars (sold separately) *for reg cabs only*
MS50718 Traction Bars (sold separately) *for ext/quad cabs only*
MS50005 Rear Add-a-Leaf (sold separately)

Replacement Parts
MS3507 Front Strut
MS2950 Rear Shock
MS50704 Outer Tie Rod End
MS50770 Rear Lift Blocks & U-Bolts

Notes:
If you are adjusting this kit to 8″ or 9″, you will need the Rear Add-a-Leaf #50005 (sold separately) to bring the rear of vehicle up

If running this kit at the 9″ position, we highly recommend using Upper Control Arms #50785 (sold separately) to help with bump stop clearance issues

Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc… You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.

Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
