153712BK | Belltech 6 Inch Complete Lift Kit with Trail Performance Shocks (2019-2023 Ram 1500 4WD)
2019-2023 Ram 1500 Pickup 4WD | Does NOT Fit Models with 22" OEM Wheels | Does NOT Fit Classic Models | Does NOT Fit E Torque Models
Description
Elevate your truck or Jeep to new heights with Belltech's all new suspension lift kit systems from Belltech. Precision engineered in the USA to ensure every aspect was considered to provide you with the highest quality Lift Kit Suspension System that delivers on performance. Through innovative design with the focus on performance, these suspension lift kit systems are the best riding lift kits on the market - period. Built to ride, handle and tackle off road obstacles with ease!
2019-2023 Ram 1500 4WD (All Cabs) exc. Classic Body, Will NOT fit eTorque models
Trim Models Excluded: TRX, Diesel engines, Air-Ride
*PLEASE NOTE: RAM trucks with OEM 22" wheels require a larger bore steering knuckle due to a larger wheel bearing assembly, and this lift kit will not fit these OEM 22" wheels. Check for build sales code WPM or WPZ on your RAM to see if this might apply to you*

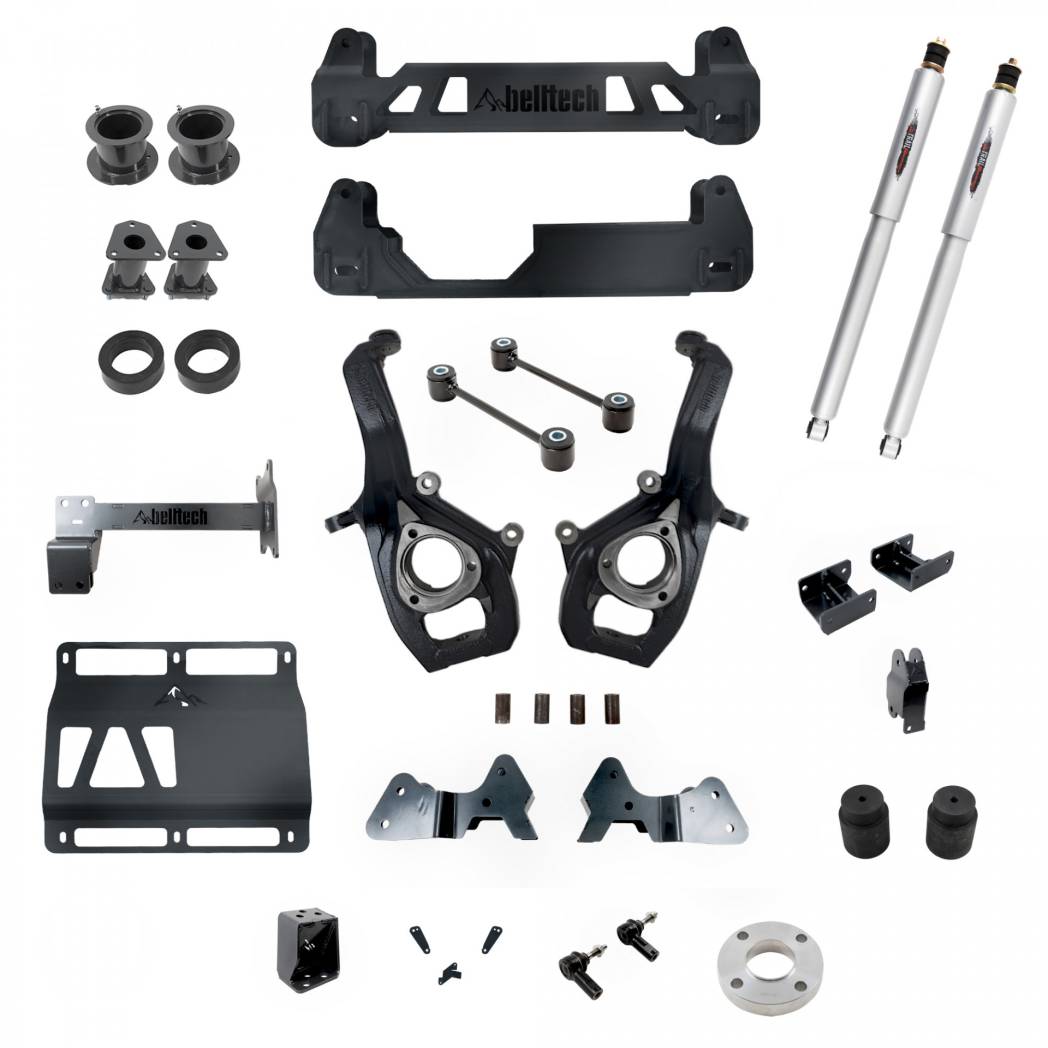

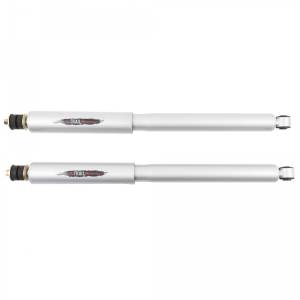

Belltech's precisely engineered 153712BK kit includes our rear Trail Performance Twin Tube shocks. This lift kit not only improves your ride quality but also preserves factory alignment cams and specifications, retains the factory track width, and most importantly, does not induce bump steer! Our Belltech lift kit keeps the steering nice and tight.

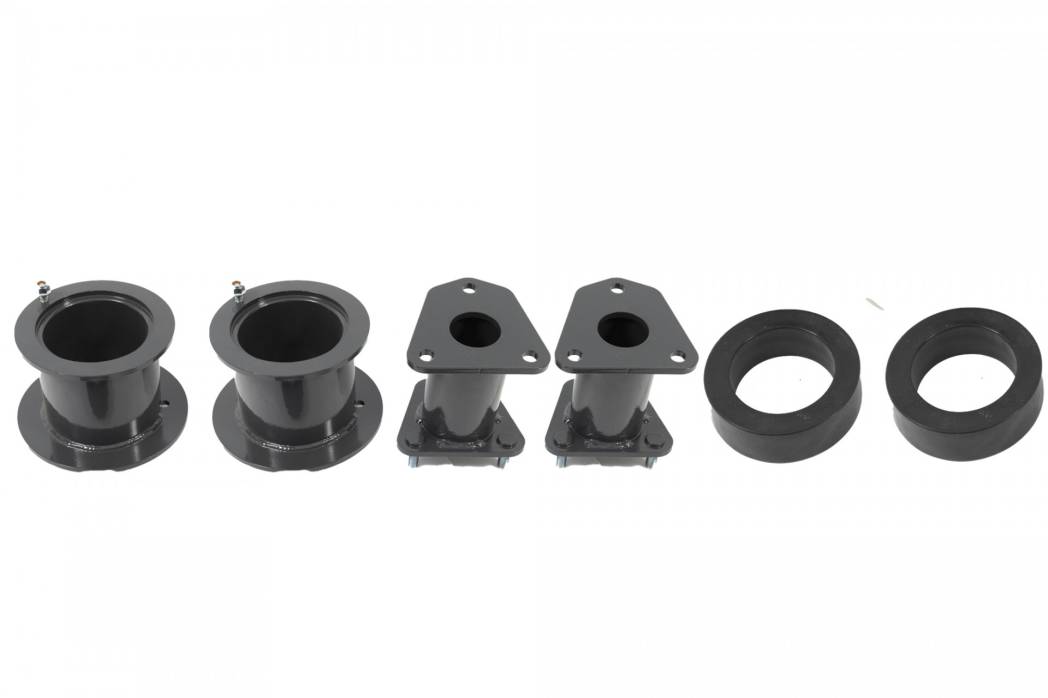

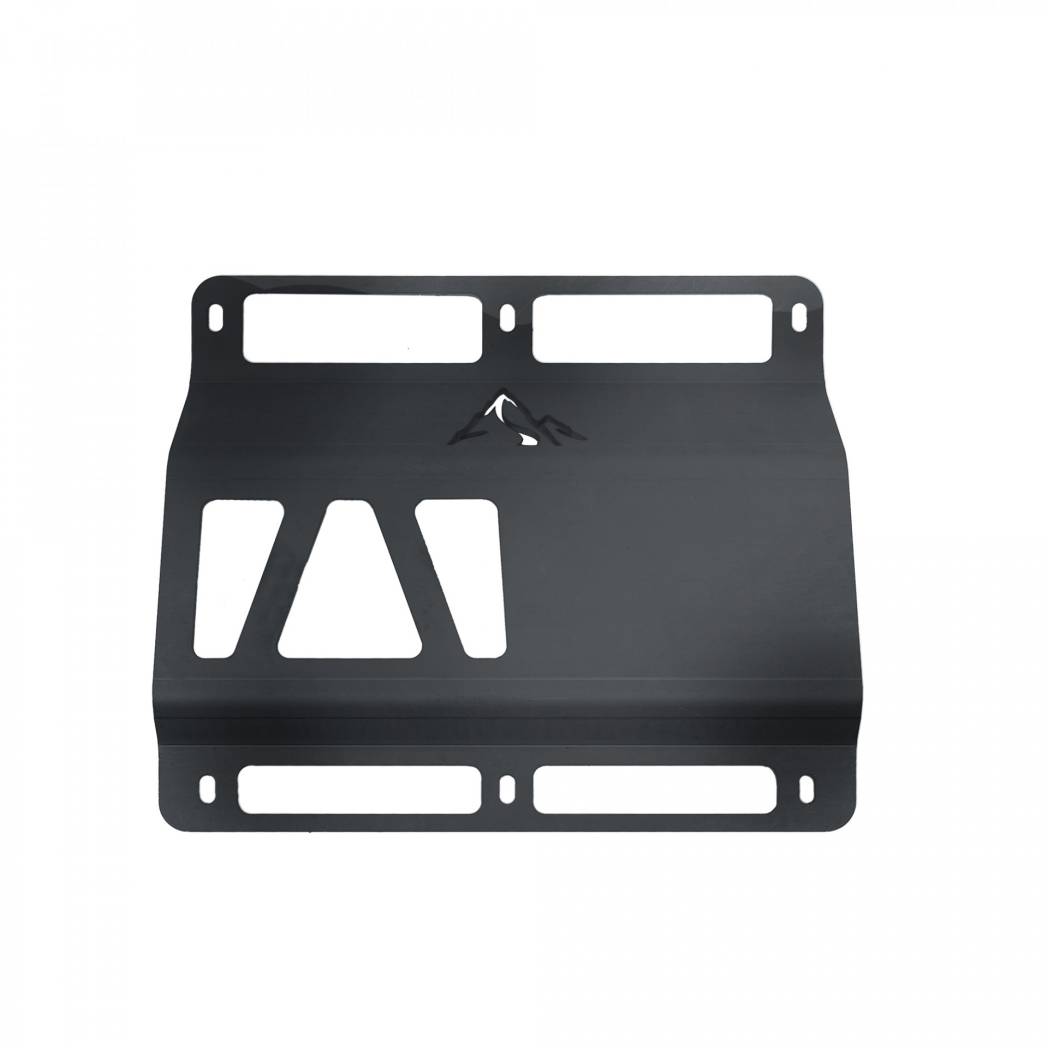

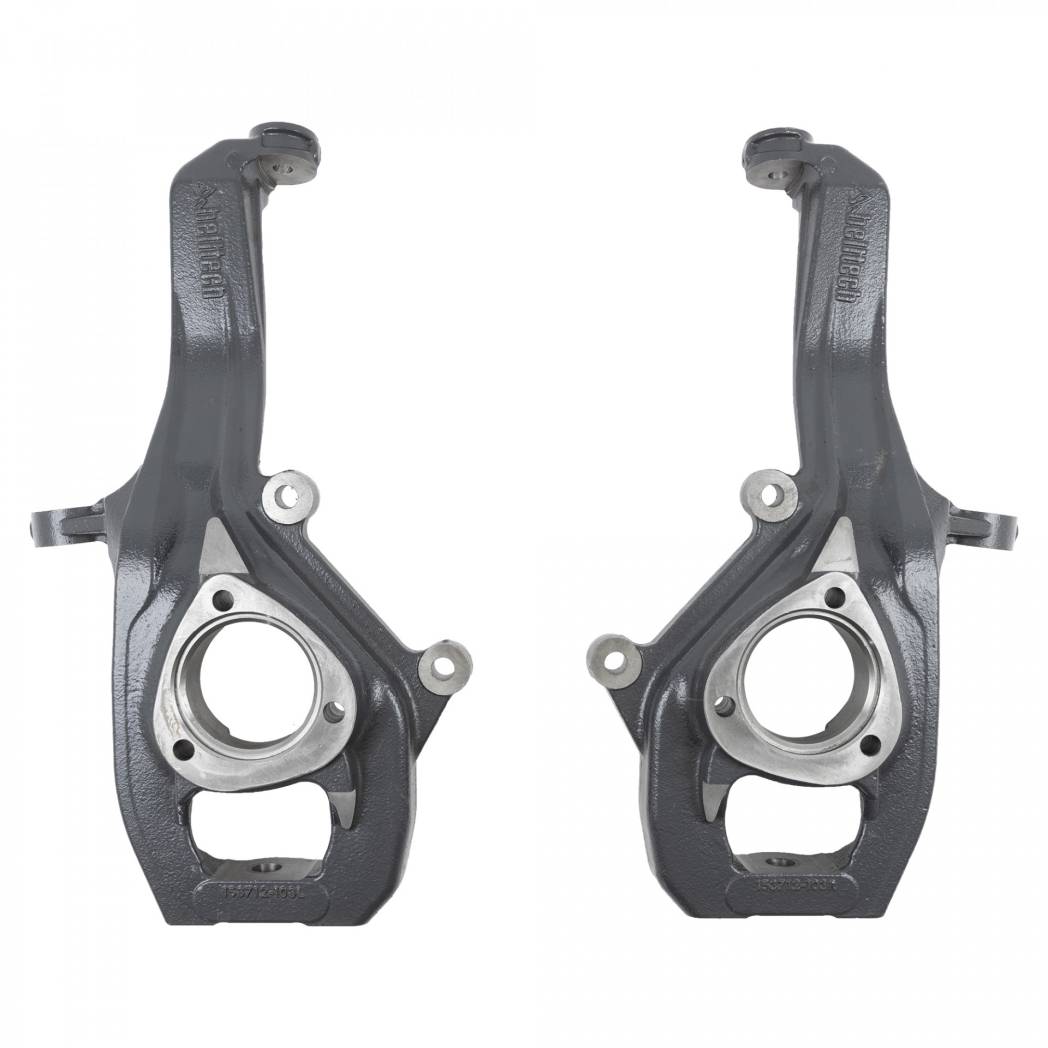

Starting with the front end, our kit uses durable strut spacers and preload spacers to successfully achieve a full 6" of lift. The front also end includes replacement spindles, which are purposely engineered to improve strength and reduce weight while amplifying durability. Belltech Lift Kits preserve your factory turning radius and steering angle. The kits contain a ¼" thick laser-cut skid plate to protect your ride's front differential and increase rigidity when tackling off-road terrain.

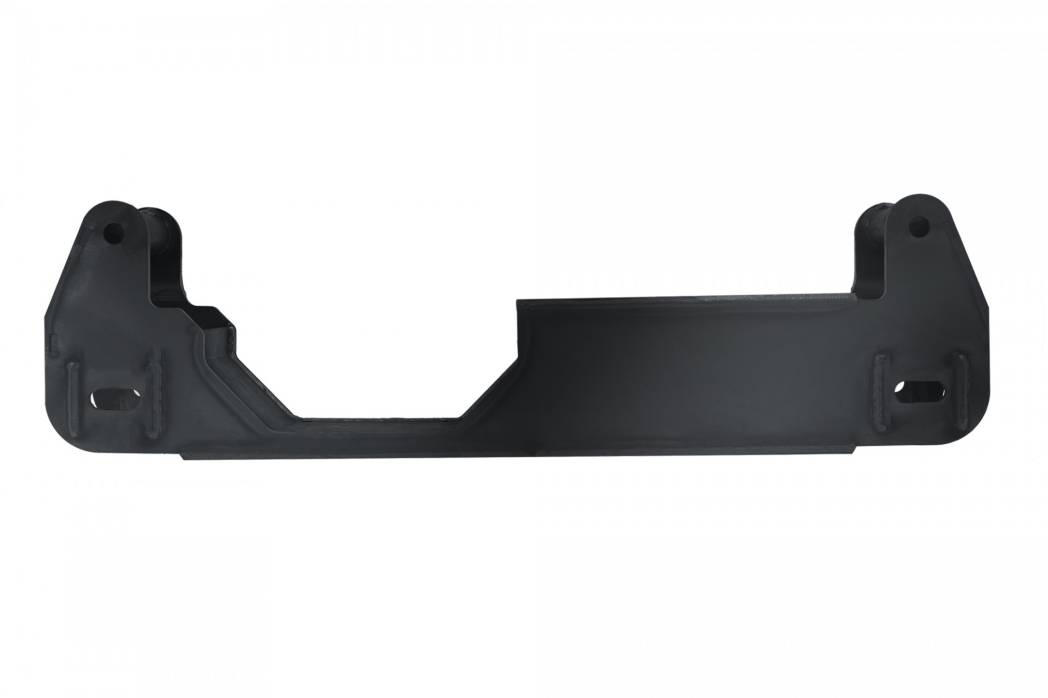

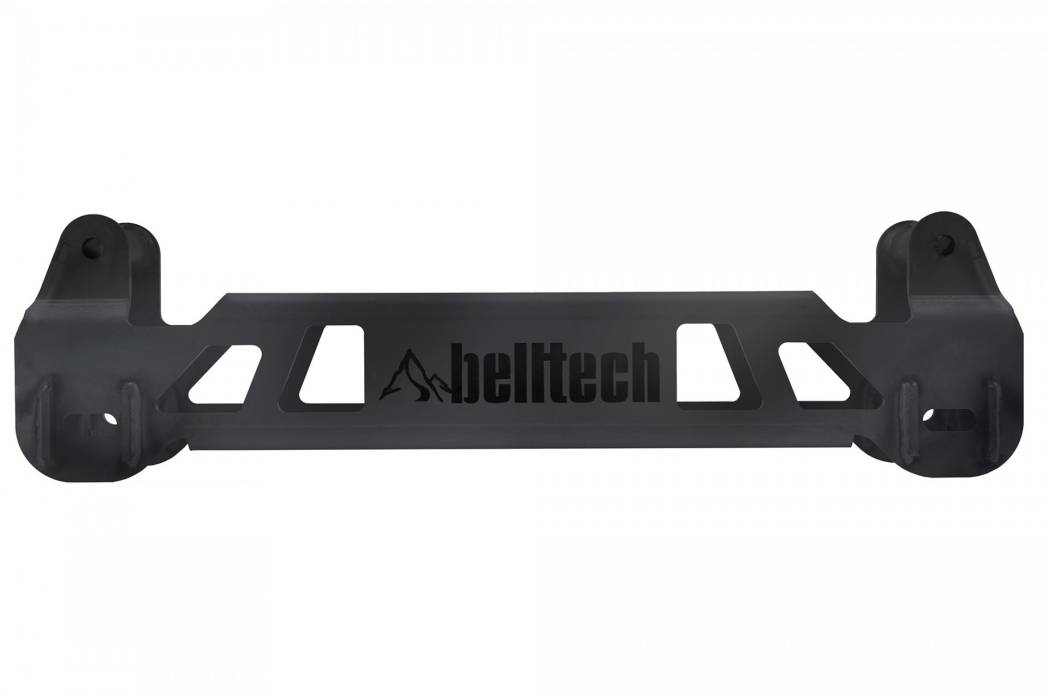

We also include easy to install, durable outer tie rods. Rounding out the front end, we also include a one-piece differential drop down bracket that mimics the OE factory alignment adjustability, our ¼" thick high-clearance cross-members, a front stainless steel braided brake line, and a billet aluminum driveshaft spacer.

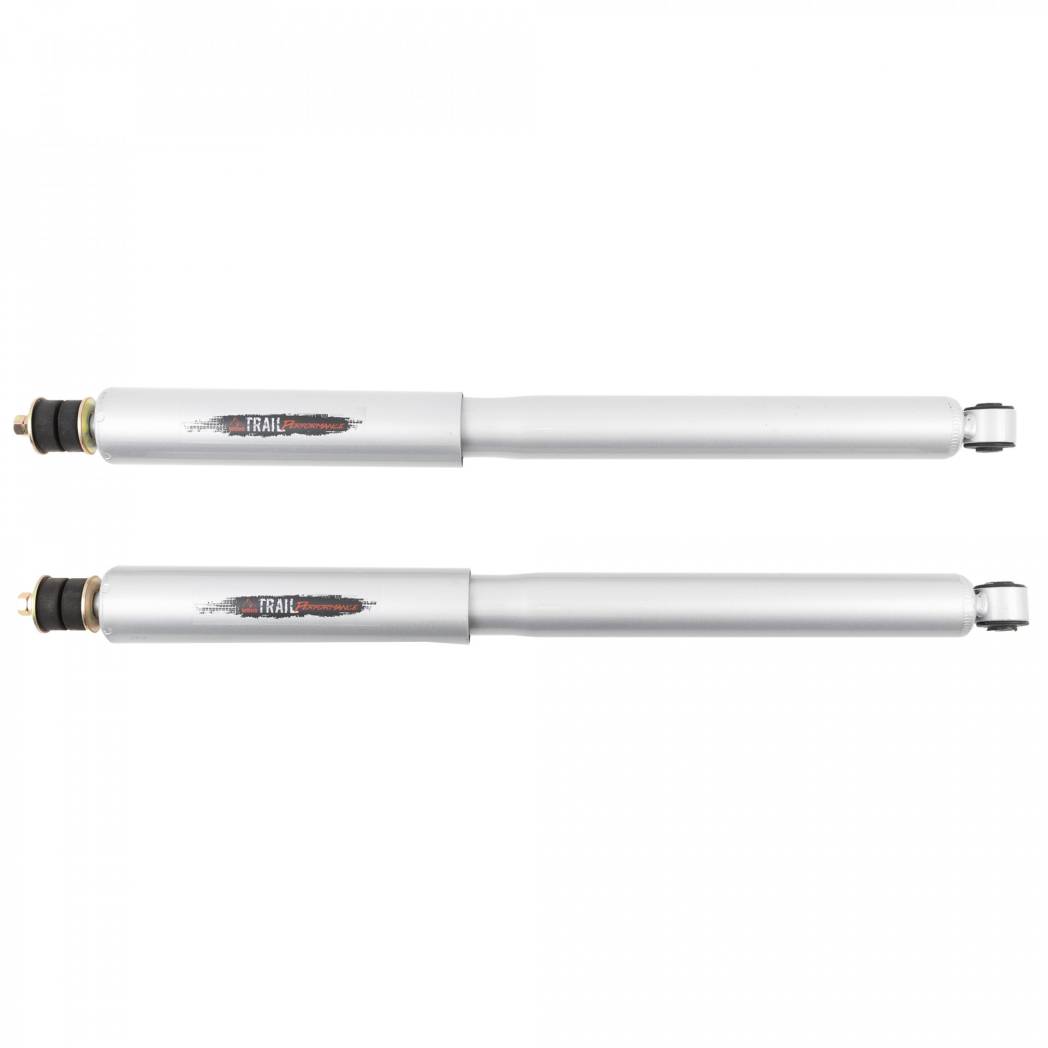

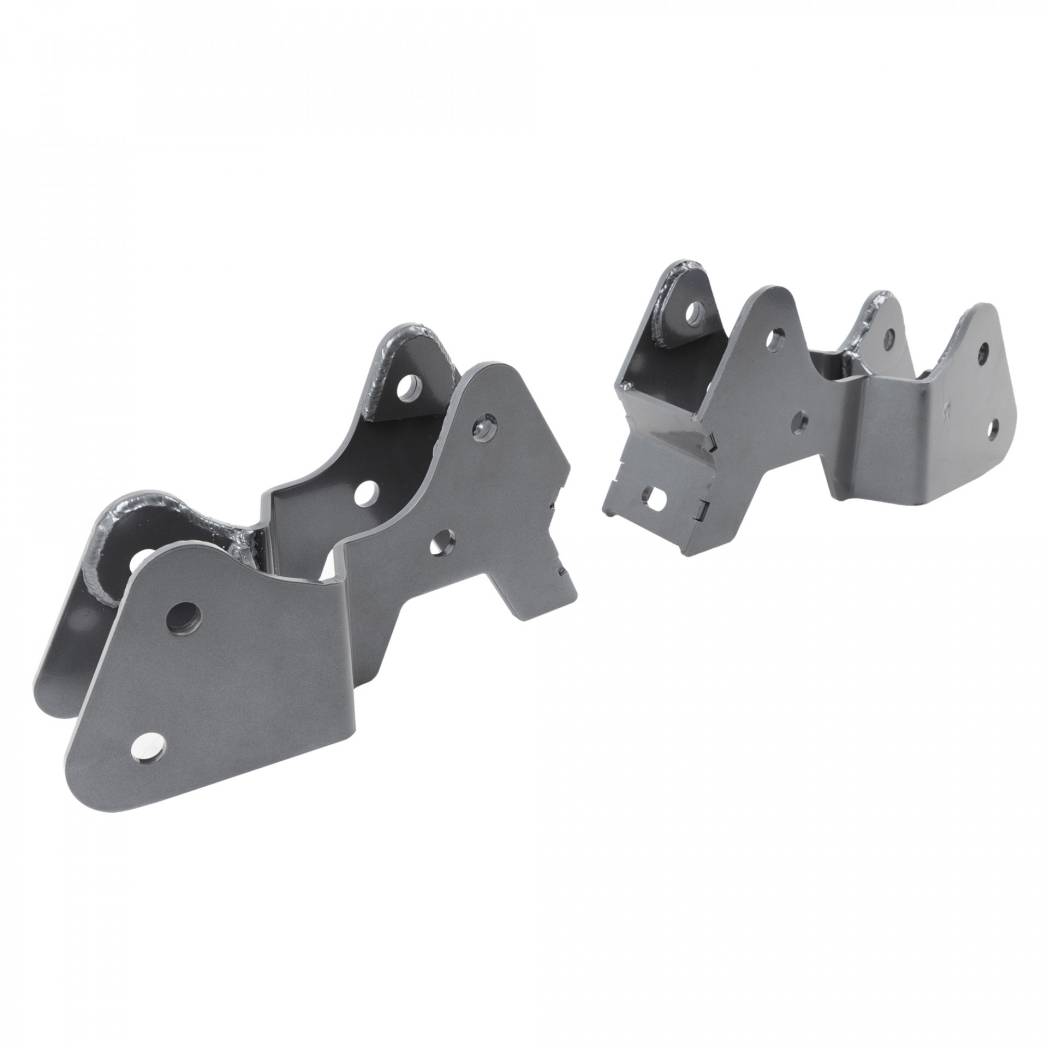

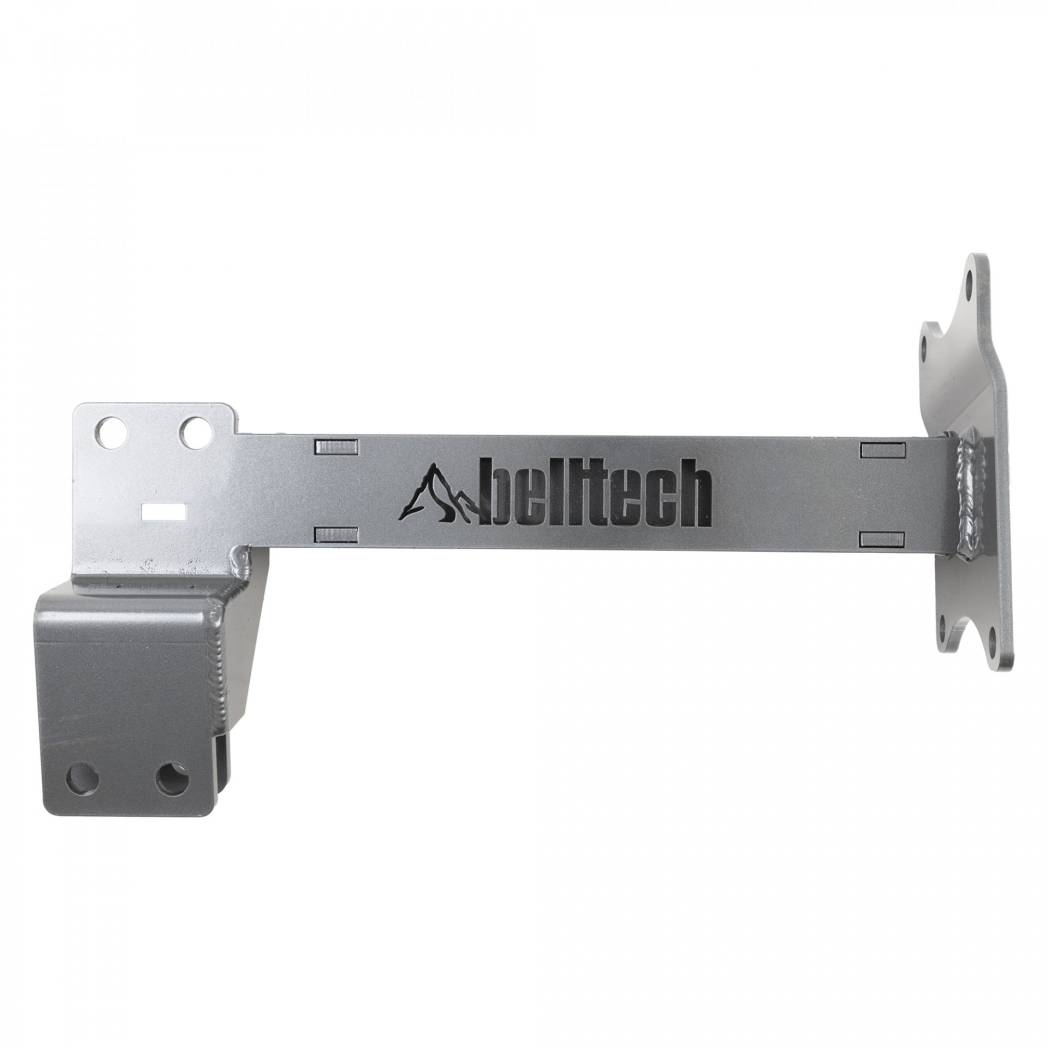

To achieve lift in the rear end of the vehicle, we use two heavy-duty spring spacers. Belltech engineers have developed a rear control arm drop down bracket that keeps everything centered. Our rear control arm drop down bracket maintains the OE "anti-squat" and all of the OE rear axle and suspension dynamics while driving. Without retaining the OE "anti-squat," it can mimic the receptivity of a stiff spring rate, leaving you with a feeling of an unsafe ride, especially in inclement weather. Our control arm drop down maintains all of that, improves the ride quality, and improves vehicle safety with increased wet and dry weather grip in the rear end. All of which leaves you more confident in the driver's seat. Also included for the rear are brake line relocation brackets, extended length sway bar links, rear Belltech twin-tube custom-tuned Trail Performance shocks, rear bump stop extensions, and a track bar relocation bracket to center the axle preventing swaying and rolling while turning.
Another great benefit of our Belltech Lift Kits is that they are an easy to install, direct bolt on solution (high-quality hardware), that requires no welding. Our Belltech Suspension Lift Kits also feature a Limited Lifetime Warranty - so you're covered, no matter what.
This lift kit does not fit on trucks equipped with rear air ride, diesel engines or the TRX trim model.
• Precision Designed and Engineered in the USA
• Includes rear Trail Performance twin tube shocks
• Retains factory alignment specifications using factory cams
• Maintains OE front differential geometry
• Retains OEM CV angles
• Improved ride quality over factory
• Maintains factory turning radius
• Can use OE wheels and tires
• ¼" thick steel bracketry for strength under the toughest conditions
• Easy installation - no welding needed, direct bolt on kit
• Retains factory track width
• No bump steer
• High clearance crossmembers for superior obstacle clearance when off-road
Application List
2019 Ram 1500 Big Horn 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Big Horn 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Big Horn 3.0l V6 EXH 4WD Extended Cab Pickup
2022 - 2023 Ram 1500 HFE 3.0l V6 EXH 4WD Crew Cab Pickup
2022 - 2023 Ram 1500 HFE 3.0l V6 EXH 4WD Extended Cab Pickup
2022 - 2023 Ram 1500 HFE 3.6l V6 ERG 4WD Crew Cab Pickup
2022 - 2023 Ram 1500 HFE 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Laramie 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Laramie 3.0l V6 EXH 4WD Extended Cab Pickup
2019 Ram 1500 Laramie Longhorn 3.6l V6 ERB 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2020 - 2021 Ram 1500 Laramie Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2019 Ram 1500 Limited 3.6l V6 ERB 4WD Crew Cab Pickup
2019 - 2020 Ram 1500 Limited 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Limited 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Limited 5.7l V8 EZL 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Limited 3.0l V6 EXH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Lone Star 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Lone Star 3.0l V6 EXH 4WD Extended Cab Pickup
2021 Ram 1500 Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 Ram 1500 Rebel 3.6l V6 ERB 4WD Crew Cab Pickup
2019 Ram 1500 Rebel 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Rebel 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Rebel 3.0l V6 EXH 4WD Extended Cab Pickup
2020 - 2021 Ram 1500 Special Service 5.7l V8 EZL 4WD Crew Cab Pickup
2019 Ram 1500 Tradesman 3.6l V6 ERB 4WD Crew Cab Pickup
2019 Ram 1500 Tradesman 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Tradesman 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Tradesman 3.0l V6 EXH 4WD Extended Cab Pickup
Tires & Wheels
35"x12.5" w/ 20x10 and -18 offset
35"x12.5" w/ 20x10 and -19 offset
35"x12.5" w/ 20x10 and -24 offset
35"x12.5" w/ 20x10 and -25 offset
35"x12.5" w/ 20x9 and +0 offset
35"x12.5" w/ 20x9 and +1 offset
35"x12.5" w/ 20x9 and -12 offset
35"x12.5" w/ 22x10 and -18 offset
35"x12.5" w/ 22x10 and -19 offset
35"x12.5" w/ 22x10 and -24 offset
35"x12.5" w/ 22x10 and -25 offset
Details
- 153712BK
- 153712BK
- 722439009811
- Belltech
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
