15209 | Belltech 3-4 Inch Height Adjustable Lifting Coilover Kit (2021-2023 Tahoe/Yukon 2WD/4WD)

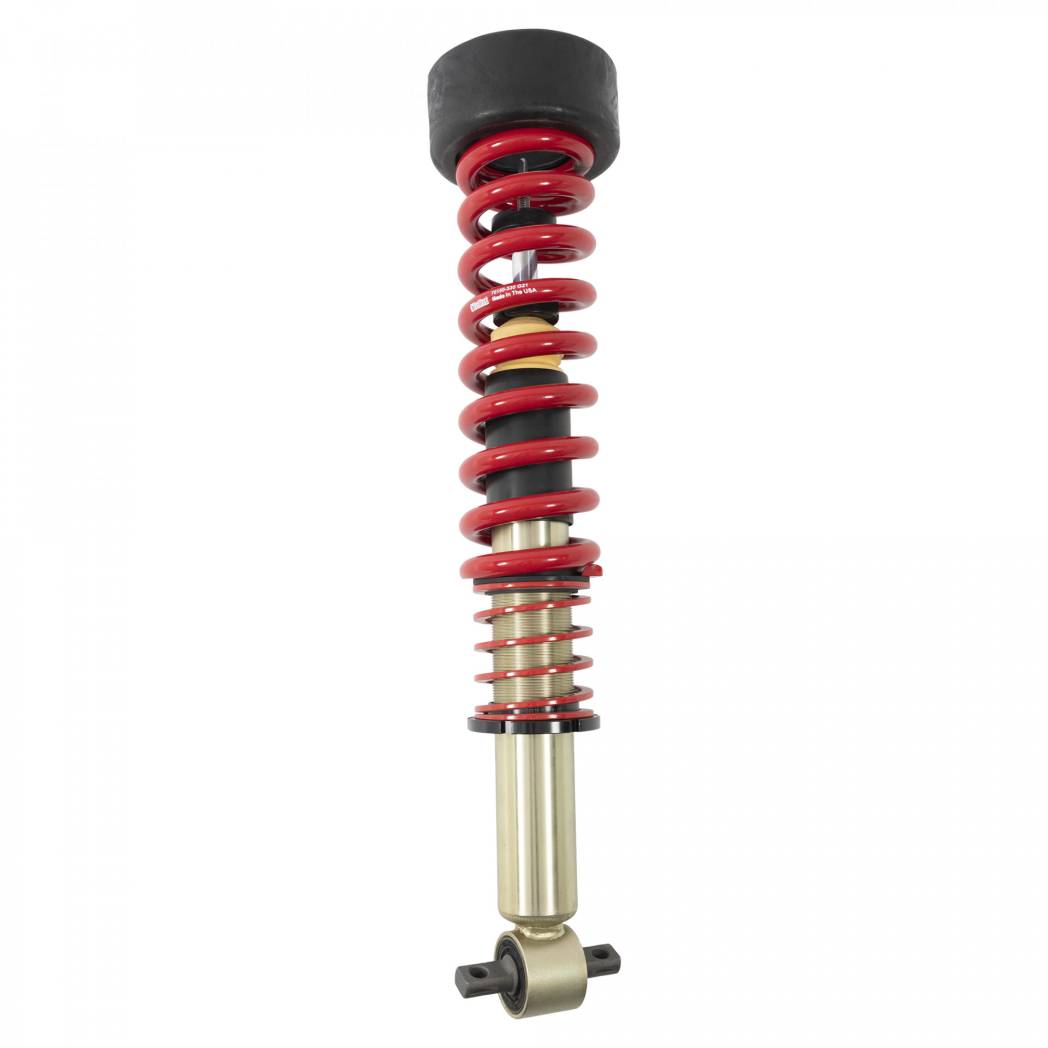

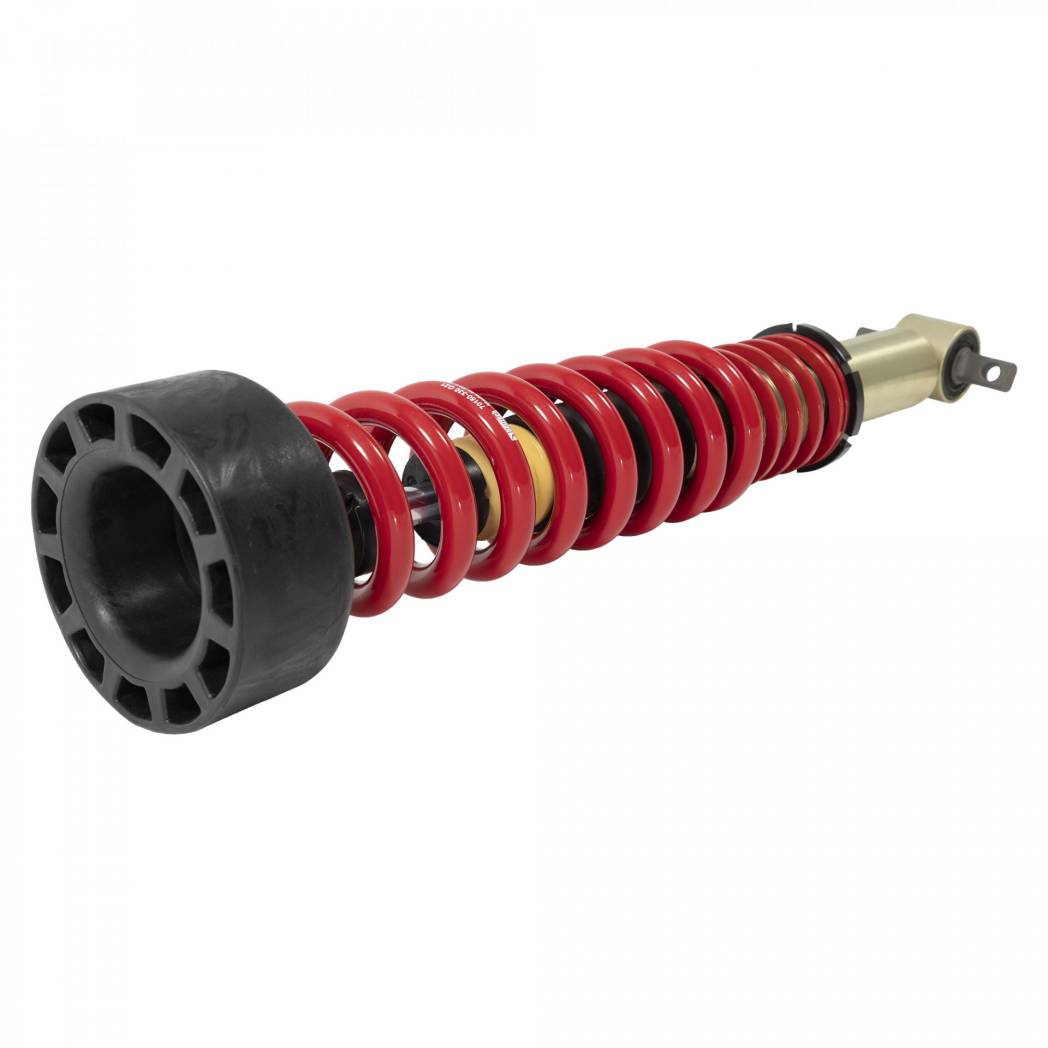

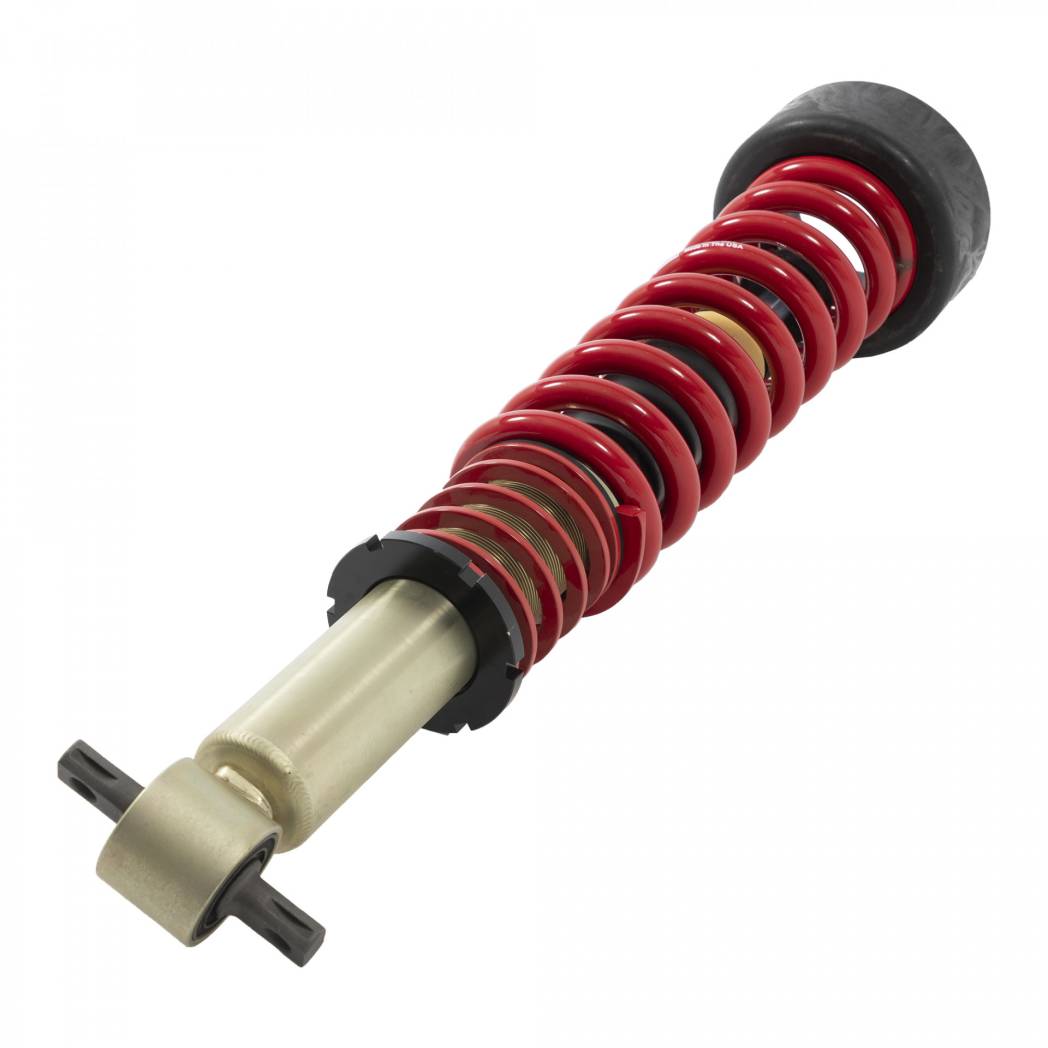

Need the ultimate in ride quality, handling, and ride height adjustability? Belltech coilover systems are the answer, providing complete height adjustable replacement shocks and springs in an application specific complete coilover unit. Belltech now offers a complete solution for the front end of your strut equipped Truck or SUV. Increase grip, reduce body roll, all while retaining the daily driven comfort you require. Each kit consists of two threaded large 60mm body performance dampers with the option of independent compression and rebound damping force adjustability. Belltech coilovers come preassembled with matched performance coil springs, Aluminum spring perches, progressive rate open cell bump stops, and plastic dust boots.

Fits: 2021+ GM Tahoe / Yukon 2WD/4WD

Choosing an exceptional suspension option is quite simple when you look to Belltech. We now offer improved vehicle appearance and performance in one package with our lifting coilover kit for your 2021 GM 1500 4WD SUV. The kit gives your automobile exemplary potential, greater clearance, and superior performance while also providing an aggressive look. Lifting your SUV 3" to 4" adds room for larger tires and wheels, making driving on rocky, uneven roads quite easy. A large portion of that simplicity is also owed to the Trail Performance dampers sitting at the core of each coilover. Our Trail Performance dampers are made with perfectly preset damping forces to provide you with a top-quality suspension upgrade, constructed of steel and powder-coated for longevity. They showcase large, 60mm bodies, 35mm independent valves, and 20mm hardened chrome piston rods. Together, the components add strength to the design and keep oil cool for damping that will not fade even under high stress. To create height adjustability Belltech uses a threaded damper body and spring perch. The spring perch is designed to sit in place and not do any adjusting over time. Since the coilover height is customizable, we made sure the bump stop engagement was also able to be edited. Our use of a progressive rate polymer, open-cell, bump stop, and packers refines the arrangement and gives your vehicle the most ideal suspension results. The Belltech helper spring and main spring are made of cold-formed high tensile steel and are powder coated red to achieve an eye-catching yet protective layer. To reduce noise and vibrations, our Belltech coilovers also use high durometer vulcanized rubber bushings. To keep the damper safe, we utilize a plastic dust boot, and easy installation is achieved by using the OE top mounts. Belltech engineers designed these coilovers by looking into every detail possible to provide you with the most desirable suspension option on the market.
Lifts the front end of your 2021 GM 1500 SUV
Increases clearance
Allows room for larger tires/wheels
Enhances drive quality
Height adjustable 3" to 4"
Perfected and preset damping forces
Progressive rate polymer, open-cell, bump stop
Packers to perfect bump stop engagement
High tensile steel springs, powder coated for longevity
Easy installation
Trail Performance dampers
60mm damper body
20mm hardened chrome piston rod
35mm independent valves
High-quality materials

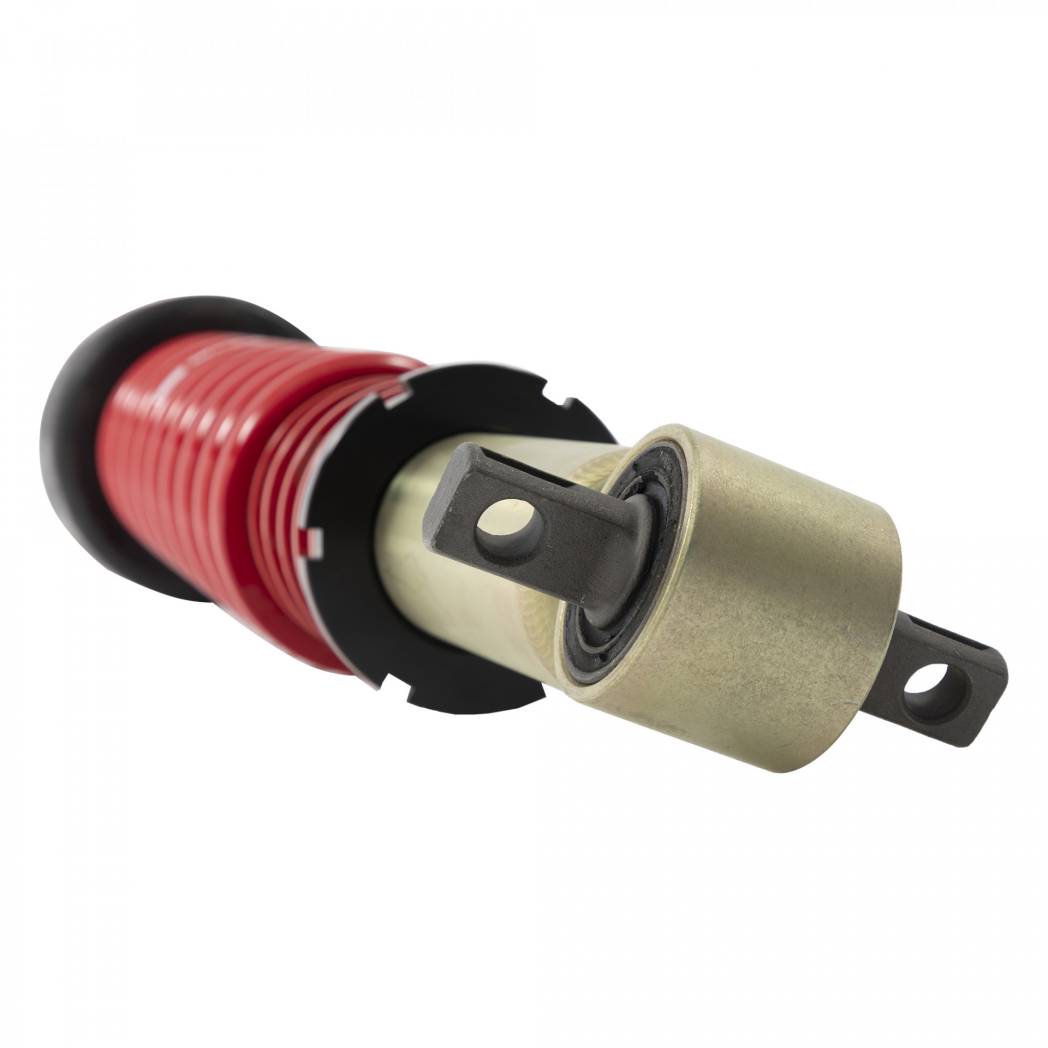

High durometer vulcanized rubber bushing
Plastic dust boot
