28070 | Rough Country 6 Inch Lift Kit Non Torsion Drop For Cadillac Escalade / Chevrolet Tahoe / GMC Yukon 2WD/4WD | 2000-2006 | V2 Monotube Shocks
28070 | Rough Country 6 Inch Lift Kit Non Torsion Drop For Cadillac Escalade / Chevrolet Tahoe / GMC Yukon 2WD/4WD | 2000-2006 | V2 Monotube Shocks | NOT Fit Auto Ride, Auto Leveling, 17" Or Larger Wheels
Description
We've raised the bar for our popular 6" '00 - '06 Tahoe, Yukon, Suburban Lift! We've phased out our torsion drop kit to offer the more popular and better performing Non Torsion Drop option. This NTD kit is easier to install, handles better than ever, and looks killer from any angle since you won't have that unsightly torsion bar peeking out from the underside of the vehicle. Gain greater clearance, better handling, and the cleanest looking 6" lift available!
A set of lifted front knuckles and rear coil springs allow your SUV to run up to 35" tires, while a full set of high-clearance crossmembers, differential drop brackets and torsion bar drop brackets keep everything tucked, hidden, and at optimum angles. But the best gets even better: Now included in this kit are a set of front N3 Shocks - custom valved to the specifics of your model vehicle, and designed for balanced performance both on and off-road. Front CV spacers, sway-bar links, and a protective skid plate are also included to give you everything you need to get rolling in one of our best kits, at our best price.
This all-inclusive kit comes with everything you need, and best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Torsion bars stay in factory location.
- Redesigned for easier installation.
- Maintains factory ride quality.
- Applicable with AutoTrac equipped models.
- Unmatched ground clearance.
- Axles maintain factory position and angle.
- No drivetrain or exhaust modifications required.
- Designed to reuse factory compression travel stops.
- Includes front application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Frame bracket modification required.
- Does NOT fit Auto Ride or Auto Leveling models.
- If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
- Torsion bar unloading tool required for installation. (SKU: 1067)
- AWD models must use replacement driveshaft (SKU: 5083.1)
SPECS
- More Information
- Est. Install Time 8 - 10 hours
Vehicle Applications
2000 - 2006 Chevrolet Tahoe
2000 - 2006 GMC Yukon
NOTES - IMPORTANT
Frame bracket modification required.
Does NOT fit Auto Ride or Auto Leveling models.
If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
Torsion bar unloading tool required for installation.
Available here! SKU: 1067 AWD models must use replacement driveshaft SKU: 5083.1

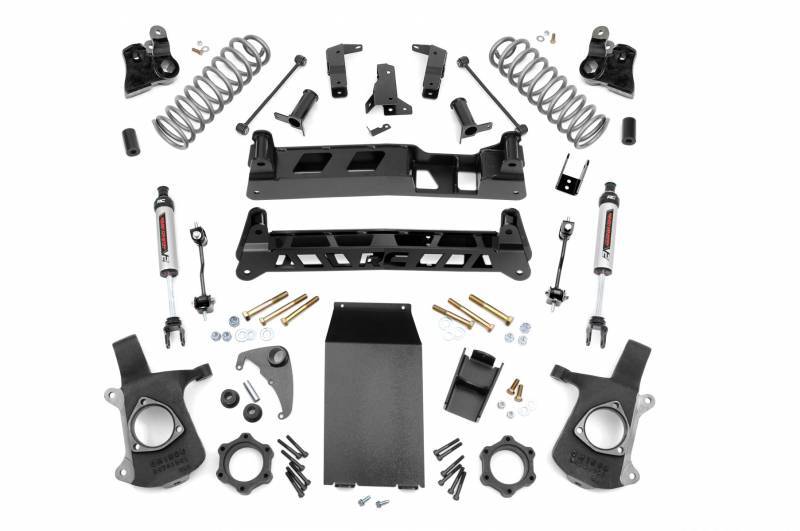

Components
Lifted knuckles
Front crossmember
Rear crossmember
Non-torsion bar drop brackets
Differential drop brackets
CV spacers
Lower skid plate
Sway-bar links
Hardware
REAR
Lifted coil springs
Shock relocation brackets
SHOCKS
(2) Front shocks
Tires & Wheels
35x12.50R17 17x8.5 6x5.5 +1 Minor Trimming
35x12.50R17 17x9 6x5.5 -12 Minor Trimming
35x12.50R17 17x9 6x5.5 +0 Minor Trimming
35x12.50R17 17x9 6x5.5 +1 Minor Trimming
35x12.50R18 18x8.5 6x5.5 +0 Minor Trimming
35x12.50R18 18x8.5 6x5.5 +1 Minor Trimming
35x12.50R18 18x9 6x5.5 -12 Minor Trimming
35x12.50R18 18x9 6x5.5 +0 Minor Trimming
35x12.50R18 18x9 6x5.5 +1 Minor Trimming
35x12.50R20 20x9 6x5.5 +0 Minor Trimming
295/60R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 Minor Trimming
295/60R20 20x9 6x5.5 +1 -
35x12.50R20 20x10 6x5.5 -25 Trimming Required
35x12.50R20 20x10 6x5.5 -24 Trimming Required
35x12.50R20 20x10 6x5.5 -19 Trimming Required
35x12.50R20 20x10 6x5.5 -18 Trimming Required
35x12.50R22 22x10 6x5.5 -25 Trimming Required
35x12.50R22 22x10 6x5.5 -24 Trimming Required
35x12.50R22 22x10 6x5.5 -19 Trimming Required
35x12.50R22 22x10 6x5.5 -18 Trimming Required
Details
- 28070
- 28070
- 840269903014
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 125.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
