69-3422 | ReadyLift 3.5 Inch SST Suspension Lift Kit (2011-2019 Silverado 3500 HD, Sierra 3500 HD)
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD | 2011-2019 GMC Sierra 3500 HD 2WD/4WD | SRW Tow Package & DRW
69-3422
Pricing:
$1,728.94
Description
3.5"F / 2"R SST LIFT KIT - GM SILVERADO / SIERRA 3500 HD SRW-TOW & DRW 2011-2019
ReadyLIFT Suspension is excited to offer 2011-2019 Chevy and GMC 2500HD and 3500HD truck owners a lift solution that won't break the bank nor permanently modify your truck.
This is a true bolt-on Lift kit! The 69-3422 SST Lift Kit by ReadyLIFT will lift the front of your new HD truck a maximum of 3.5 inches! This awesome SST Lift Kit for new GMC/Chevy HD trucks includes a pair of tough heavy-duty tubular steel Upper Control Arms engineered to match the strength of your truck. 2011-2019 HD-specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining the factory ride. These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The 69-3421 Lift Kit also includes CNC-machined differential drop spacers which lower the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of your new GMC Sierra Denali or Silverado 3500 HD truck, the ReadyLIFT SST Lift Kit includes OEM style 2.0" cast iron rear lift blocks complete with new longer U-bolts and hardware. The rear block system of this kit is for use on SRW 3500HD trucks with the factory tow package rear springs - or - dual rear wheels. Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy-duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new GM HD trucks a great raised stance using super strong components and allows for up to a 34" tall tire.
NOTE:
Requires the use of longer front shocks. Shocks not included with kit 69-3411.
Recommend ReadyLIFT SST3000 Performance Front Shocks designed specifically for this lift kit.
Optional ReadyLIFT SST3000 Performance Rear Shocks also available - sold separately.
This kit is for use on 2011-2019 3500HD trucks with Single Rear Wheels and Factory Tow Package Leaf Springs OR Dually Rear Wheels.
This is a true bolt-on Lift kit! The 69-3422 SST Lift Kit by ReadyLIFT will lift the front of your new HD truck a maximum of 3.5 inches! This awesome SST Lift Kit for new GMC/Chevy HD trucks includes a pair of tough heavy-duty tubular steel Upper Control Arms engineered to match the strength of your truck. 2011-2019 HD-specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining the factory ride. These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The 69-3421 Lift Kit also includes CNC-machined differential drop spacers which lower the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of your new GMC Sierra Denali or Silverado 3500 HD truck, the ReadyLIFT SST Lift Kit includes OEM style 2.0" cast iron rear lift blocks complete with new longer U-bolts and hardware. The rear block system of this kit is for use on SRW 3500HD trucks with the factory tow package rear springs - or - dual rear wheels. Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy-duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new GM HD trucks a great raised stance using super strong components and allows for up to a 34" tall tire.
NOTE:
Requires the use of longer front shocks. Shocks not included with kit 69-3411.
Recommend ReadyLIFT SST3000 Performance Front Shocks designed specifically for this lift kit.
Optional ReadyLIFT SST3000 Performance Rear Shocks also available - sold separately.
This kit is for use on 2011-2019 3500HD trucks with Single Rear Wheels and Factory Tow Package Leaf Springs OR Dually Rear Wheels.
Application List
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD

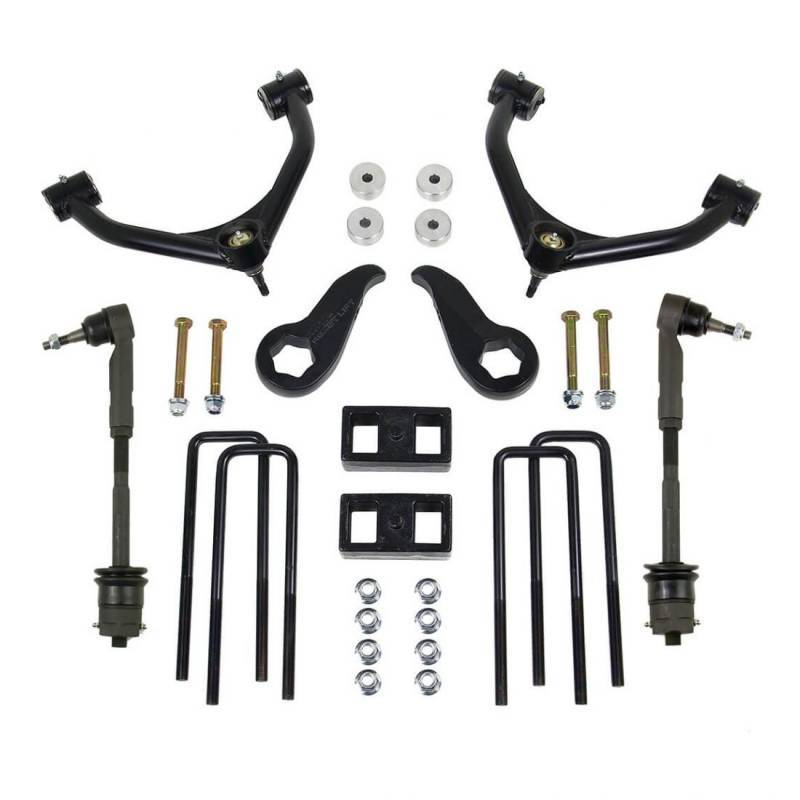

Components
Tubular Upper Control Arms
Forged Torsion Keys indexed for 3.5" of lift.
Heavy Duty replacement tie rod assemblies
Differential drop spacers.
2.0" OEM style cast iron rear lift blocks with longer u-bolts.
Forged Torsion Keys indexed for 3.5" of lift.
Heavy Duty replacement tie rod assemblies
Differential drop spacers.
2.0" OEM style cast iron rear lift blocks with longer u-bolts.
Tires & Wheels
34" Maximum tire diameter
34x11.50 for no rub on a 9" wide wheel with +12 offset
18" - 295/70R18
20" - 275/65R20
22" - 285/55R22
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
34x11.50 for no rub on a 9" wide wheel with +12 offset
18" - 295/70R18
20" - 275/65R20
22" - 285/55R22
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
Details
- 69-3422
- 69-3422
- 804879374718
- ReadyLIFT Suspensions
- New
Categories
Shipping Information
- Item Requires Shipping
- 71.0 lbs.
- W12.0000” x H16.5000” x L20.0000”
