49-1961 | ReadyLift 6.0 Inch Suspension Lift Kit w/ Bilstein Shocks (2019-2024 2500 Pickup)
2019-2024 Ram 2500 Pickup 4WD | Does not work with Factory Air suspension or Auto Level system
49-1961
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$3,119.94
Description
6" LIFT KIT - DODGE RAM 2500 4WD W/ BILSTEIN SHOCKS 2019-2024 WITH DRIVELINE INDEXING KIT
The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2024 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.
- All-new 2019-2024 Ram 2500 4WD HD 6" lift kit 6-inch front/3.5-inch rear lift.
- Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember.
- Includes 4 Bilstein 5100 series shocks tuned specifically for the Ram 2500 HD. For use on Diesel engine Ram 2500 4WD HD trucks only. Allows for up to 37x13.50 tires on 9.5" wide wheels with -18 offset. Does not work with Factory Air suspension or Auto Level system (factory helper bags).
Note:
- Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
Special Note
- RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.
Application List
2019-2024 Ram 2500 Pickup 4WD
Does not work with Factory Air suspension or Auto Level system
Does not work with Factory Air suspension or Auto Level system

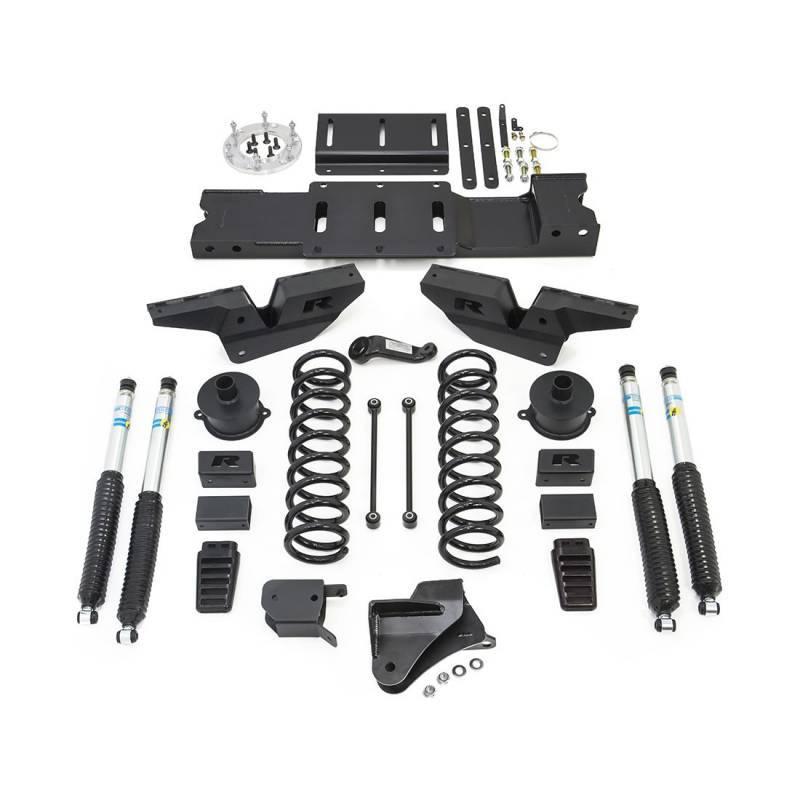

Components
6" lift front springs
3.5" lift rear springs
Radius arm drop brackets
Pitman arm
Bump stops and extensions
Front sway bar spacers
Rear sway bar end links
Front track bar relocation bracket
Transmission crossmember
Transfer case clocking ring
Bilstein 5100 series shocks
3.5" lift rear springs
Radius arm drop brackets
Pitman arm
Bump stops and extensions
Front sway bar spacers
Rear sway bar end links
Front track bar relocation bracket
Transmission crossmember
Transfer case clocking ring
Bilstein 5100 series shocks
Tires & Wheels
Maximum fitment: 37x13.50 tire
9.5-10" wheel -18 offset
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
9.5-10" wheel -18 offset
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
Details
- 49-1961
- 49-1961
- 194933151691
- ReadyLIFT Suspensions
- New
Categories
Shipping Information
- Item Requires Shipping
- 250.0 lbs.
- W12.6300” x H24.0000” x L47.7500”
