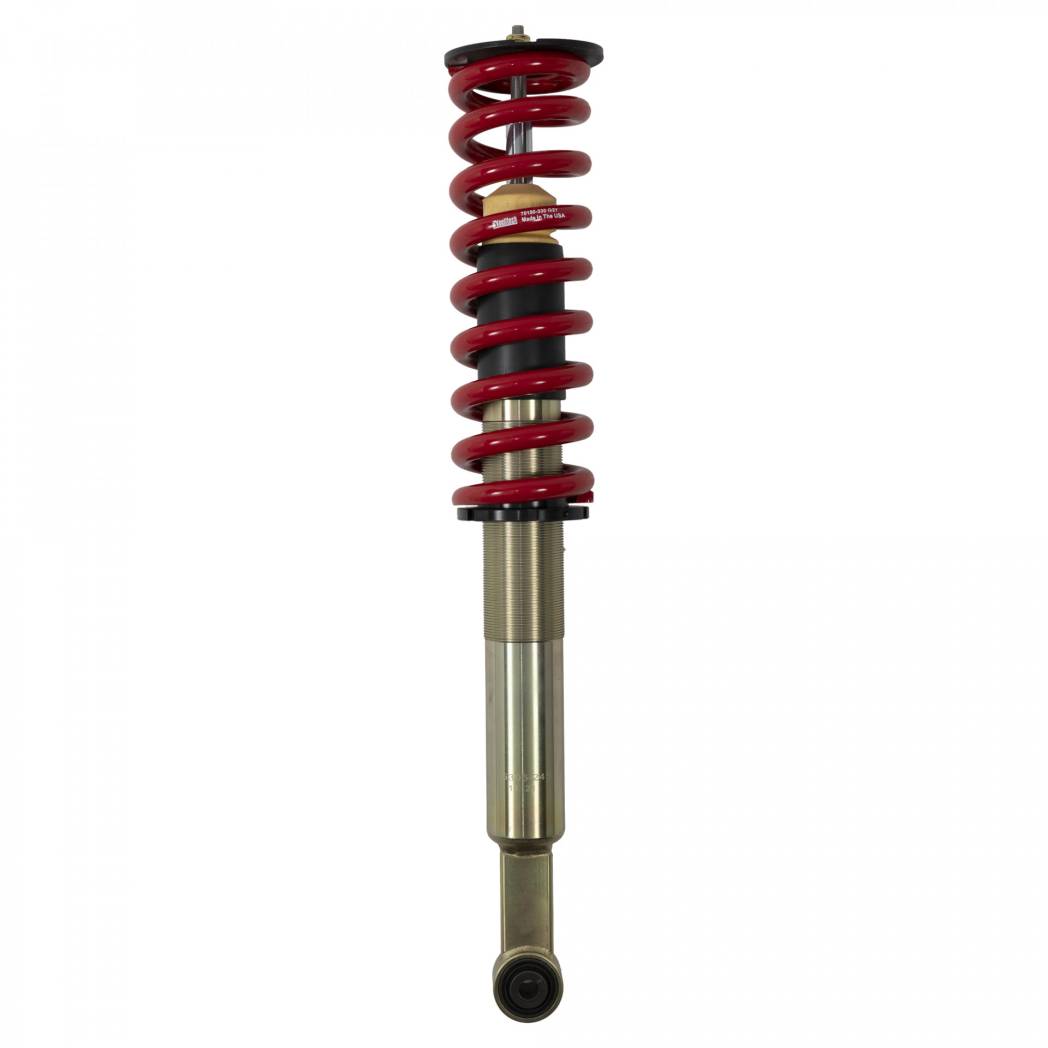

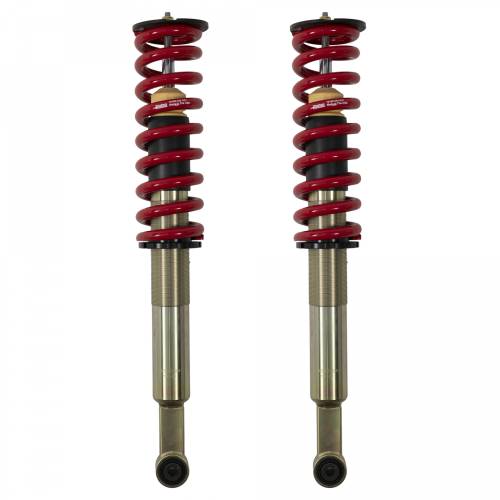

15306 | Belltech 4-6 Inch Height Adjustable Lifting Coilover Kit (2005-2023 Tacoma 4WD | Excludes TRD Pro)

Need the ultimate in ride quality, handling, and ride height adjustability? Belltech coilover systems are the answer, providing complete height adjustable replacement shocks and springs in an application specific complete coilover unit. Belltech now offers a complete solution for the front end of your strut equipped Truck or SUV. Increase grip, reduce body roll, all while retaining the daily driven comfort you require. Each kit consists of two threaded large 60mm body performance dampers with the option of independent compression and rebound damping force adjustability. Belltech coilovers come preassembled with matched performance coil springs, Aluminum spring perches, progressive rate open cell bump stops, and plastic dust boots.

2016-2023 Toyota Tacoma 4WD (Excludes TRD Pro) 4-6" Lifted Application

Built for adventure seekers and off-road enthusiasts, Belltech lift coilovers offer unmatched performance and durability. Conquer rugged terrain with confidence as you enjoy improved ground clearance and enhanced suspension travel. Whether you are tackling rocky trails or navigating through urban jungles, our coilovers provide superior handling and stability, giving your 2016-2023 Toyota Tacoma the freedom to explore without limits.

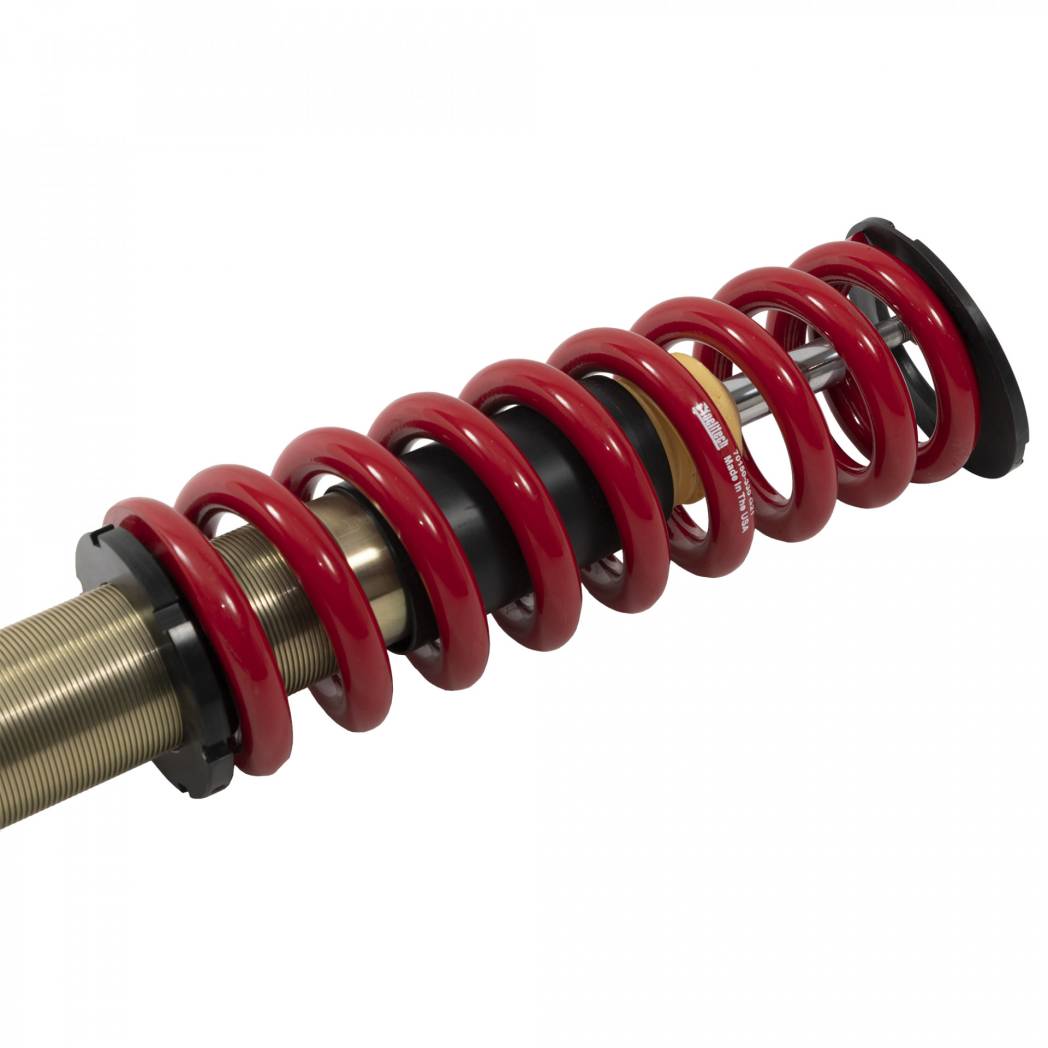

Designed to update the front end of your Tacoma with existing lift of 4” to 6”, our coilovers make even the most demanding trails feel smooth, with specific preset damping that is custom tuned for the Tacoma. Trail performance coilovers feature a large, 60mm body, a 20mm hardened chrome piston rod, and 35mm independent valves. All of which work together to keep oil cool for consistent damping that does not fade while in motion. To achieve an adjustable height, we utilize a threaded damper and spring perch that can be moved along the threads into the perfect placement for you. With customized spring placement, Belltech engineers added a progressive rate polymer open-cell bump stop and packers for ideal bump stop engagement at each height option. In turn, this technology adds to the balanced ride and prevents bottoming out when driving on imperfect roads. The high tensile steel springs are brightly powder-coated for an eye-catching look that is also durable. To go one step further, Belltech engineers added a coilover spring shim system to correct the angle of the top mount. This keeps the spring in line with the coilover housing to prevent unwanted rubbing.

Join countless adventurers who trust Belltech lift coilovers for unrivaled performance and reliability.

• For applications with a 4” to 6” front lift
• Trail Performance dampers
• 60mm damper body
• 20mm hardened chrome piston rod
• 35mm independent valves
• High durometer vulcanized rubber bushing
• Perfected preset damping
• Low-friction internal design
• Added clearance and enhanced ride quality
• Easy installation
