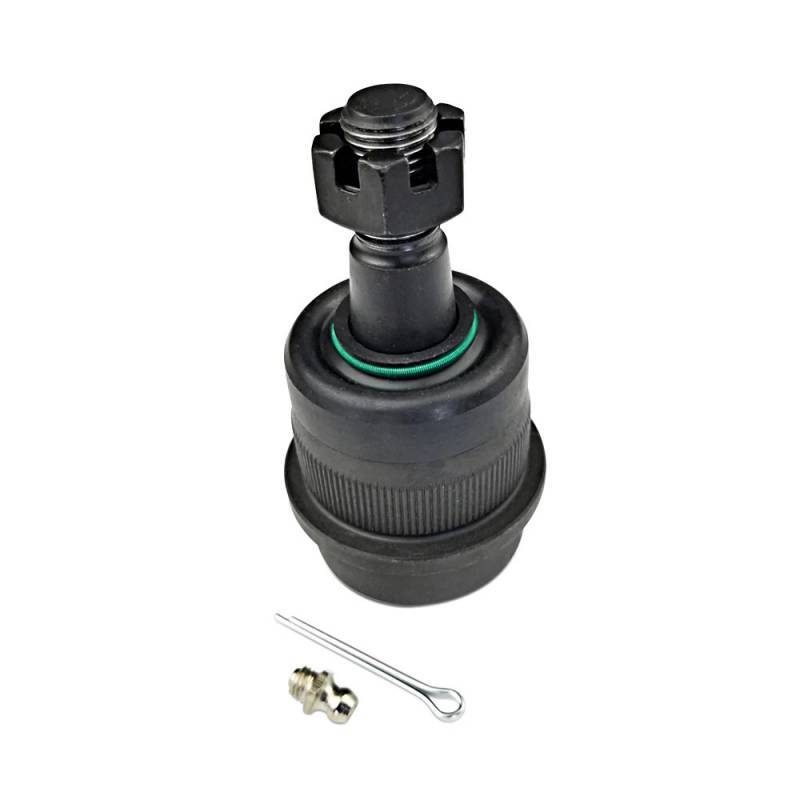

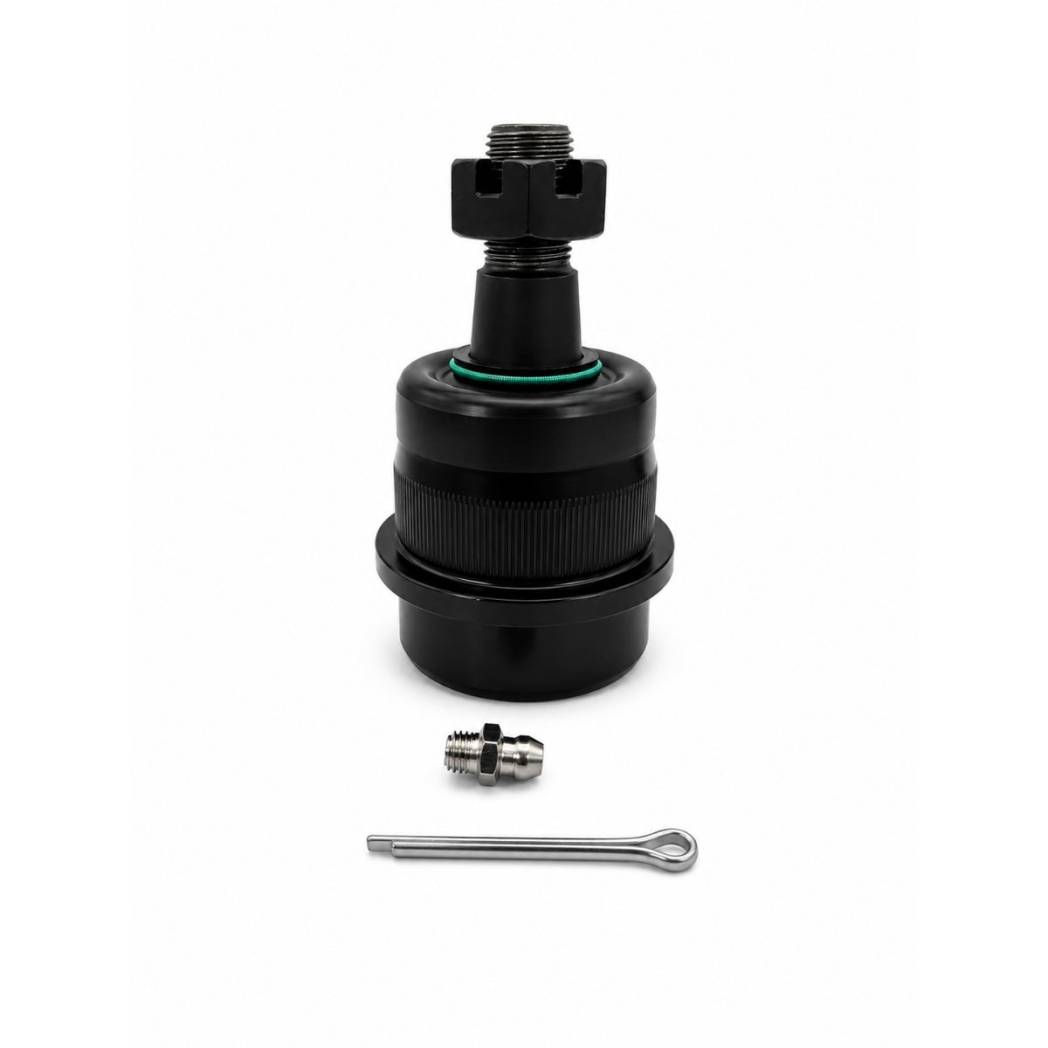

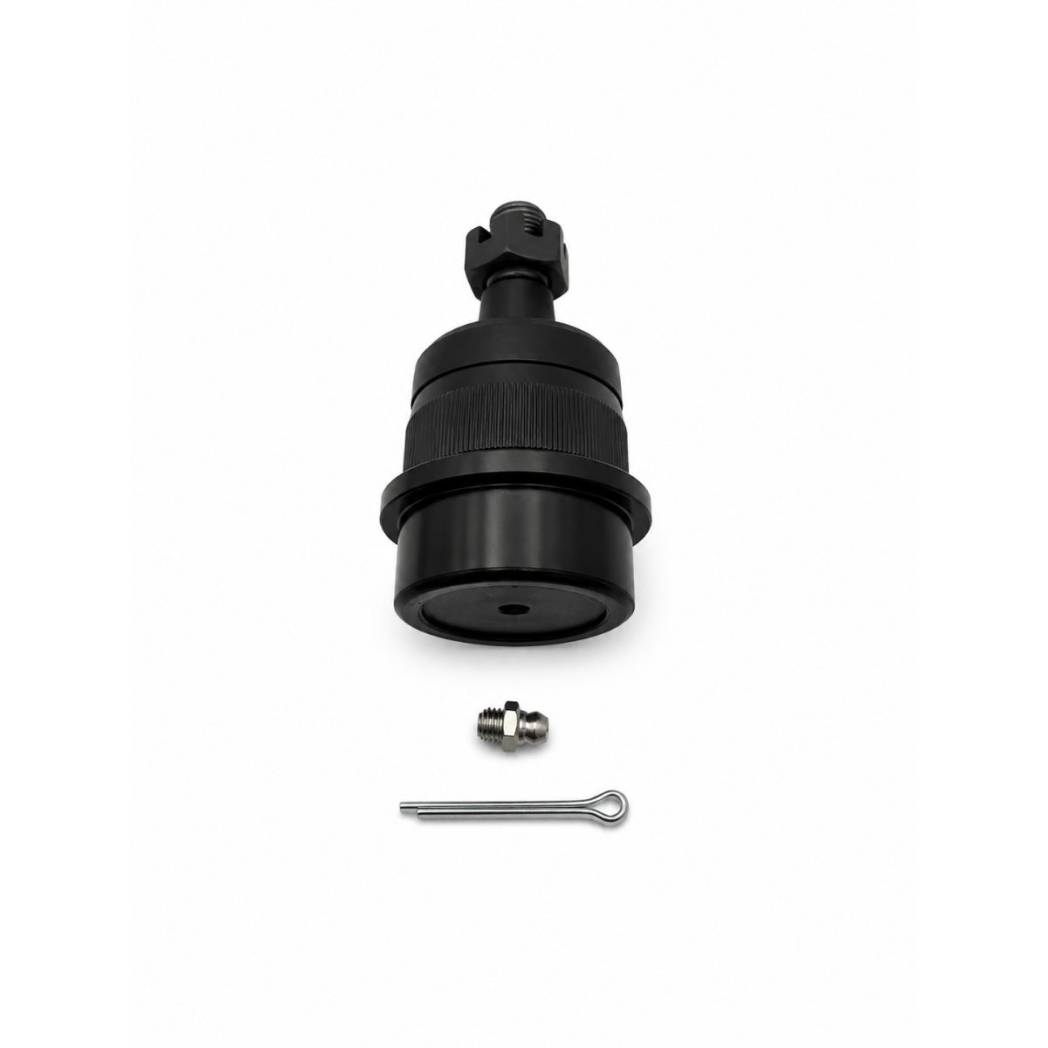

BJ107 | Apex Chassis Front Upper Ball Joint For Jeep / Dodge Super HD | 1984-2019

Front Upper Ball Joint | 1984-2019 | Jeep: Cherokee, Comanche, Grand Cherokee, Grand Wagoneer, Wrangler TJ, Wagoneer, Wrangler JK, Wrangler YJ / Dodge RAM: 1500, 4WD

BJ107
Pricing: $82.01
Qty:

Description



THE SPECIAL SAUCE:

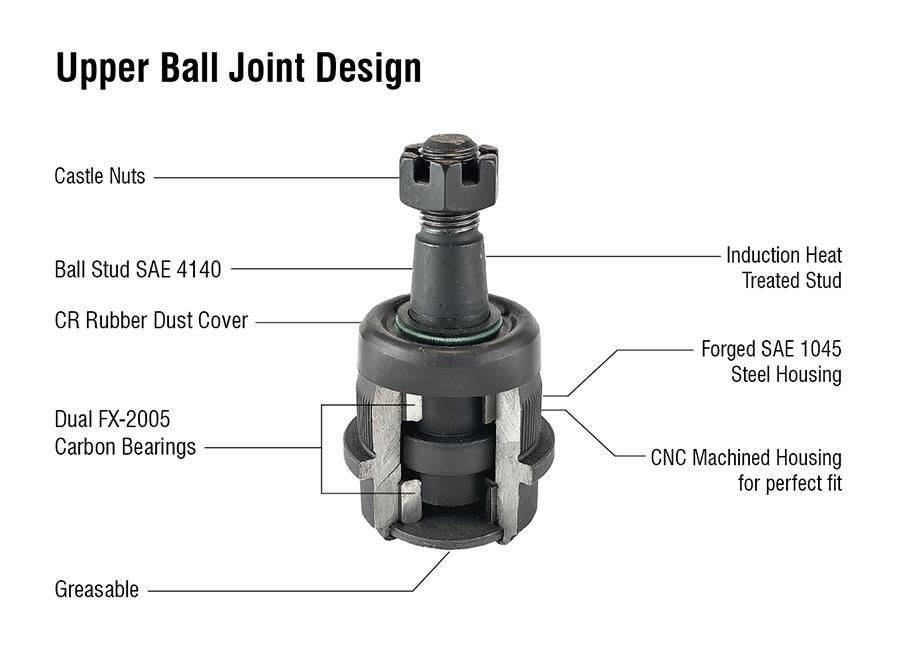

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Carbon Bearing Design: Used mainly in Jeep and Dodge upper ball joints is the solver of all things wobbly. Like all of our product.

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications.
  • Pancake Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.

SPECIAL FEATURES

  • Custom Features: Custom bearing design to eliminate 'Death Wobble'.

WHERE IT FITS:

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K3134T
XRF Interchange: K3134TX

Application List

Dodge RAM 1500 (1994-2001) 4WD
Dodge RAM 2500 (1994-1999) 4WD
Jeep Cherokee (1984-2001) 2WD or 4WD
Jeep Comanche (1986-1992) 2WD or 4WD
Jeep Grand Cherokee (1993-2004) 2WD or 4WD
Jeep Grand Wagoneer (1993) 2WD or 4WD
Jeep Wrangler TJ (1997-2006) 4WD
Jeep Wagoneer (1984-1990) 2WD or 4WD
Jeep Wrangler JK (2007-2018) 4WD
Jeep Wrangler YJ (1987-1995) 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.5 lbs.
  • W4.0000” x H4.0000” x L4.0000”
