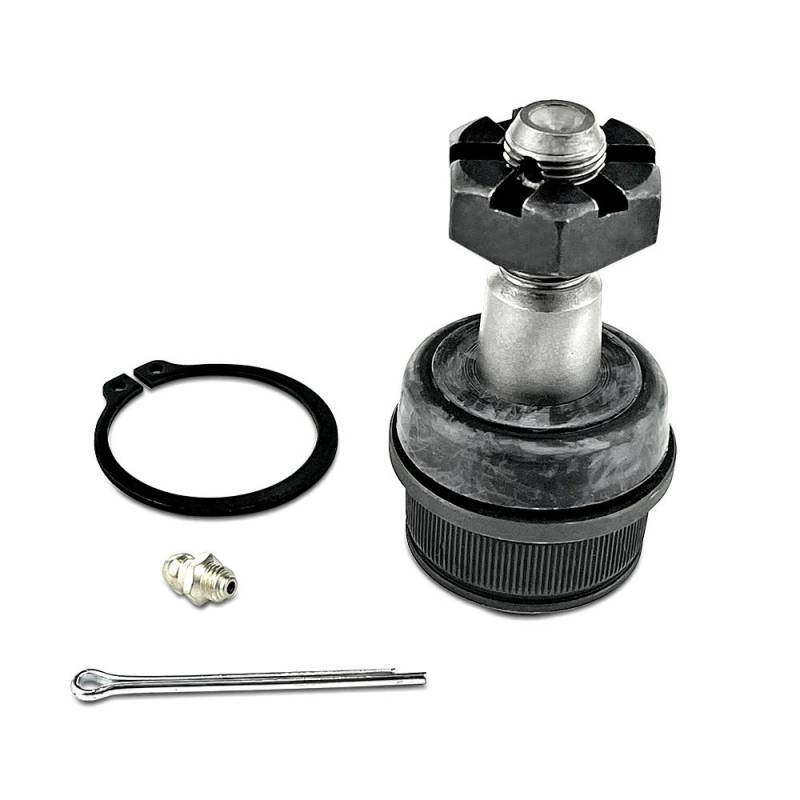

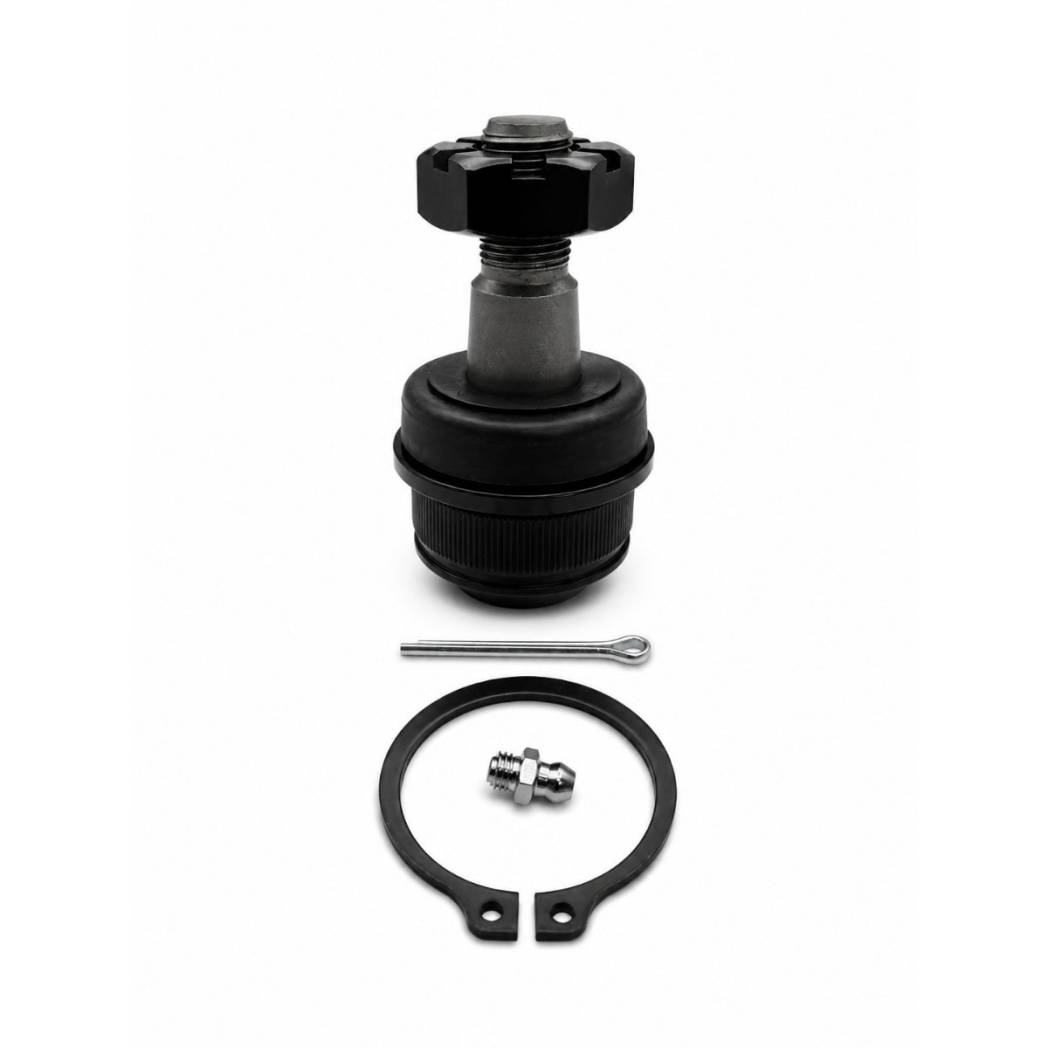

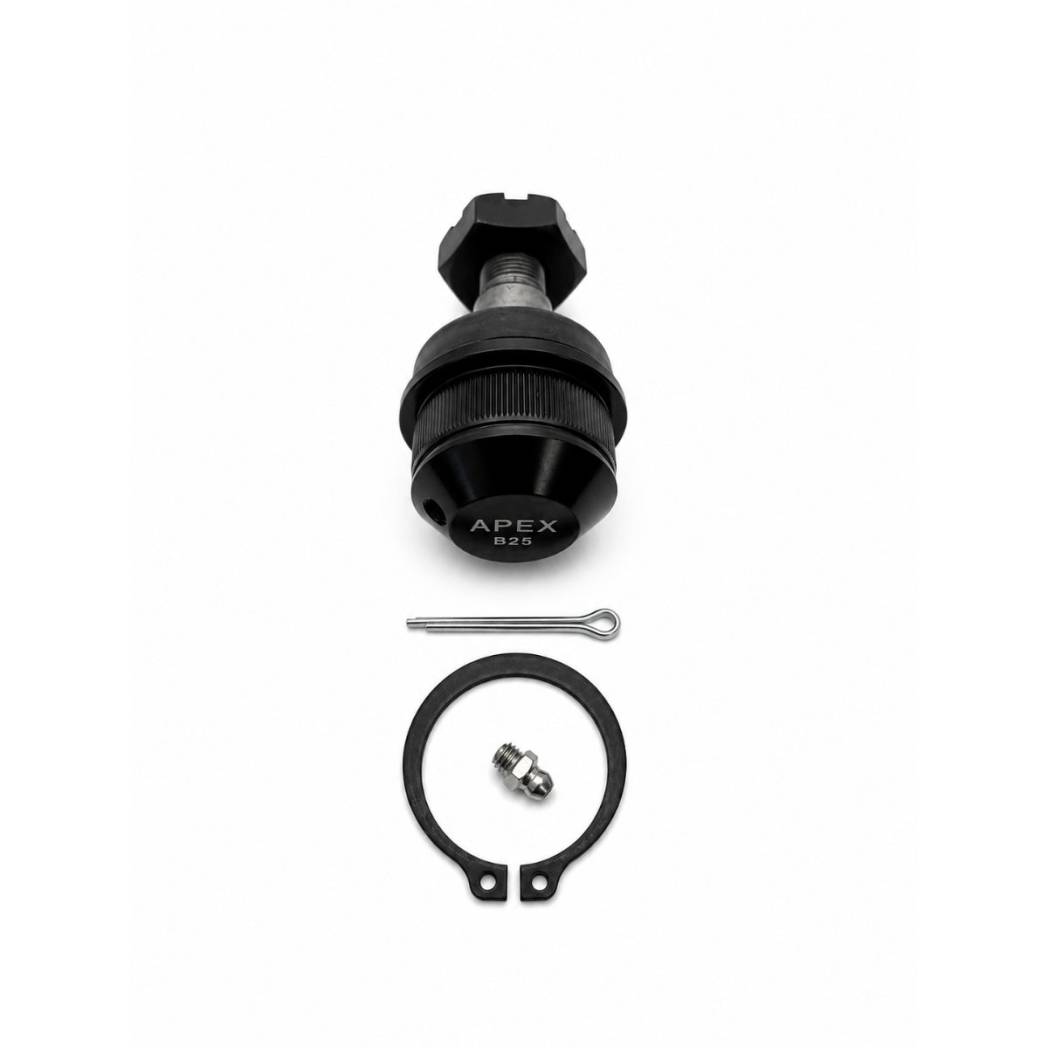

BJ108 | Apex Chassis Front Lower Ball Joint For Jeep Cherokee, Comanche, Wagoneer, Wrangler | 1990-2006

Front Lower Ball Joint | 1990-2006 | Jeep Cherokee, Comanche, Wagoneer, Wrangler TJ, Wrangler YJ

BJ108
Pricing: $82.01
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : Allow for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undecar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Pancake Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be
  • Pre-Greased: Just in case you forget, we have you covered
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application

SPECIAL FEATURES

  • Custom Features: Angled Zerk housing for easier servicing.



WHERE IT FITS:

Vehicle Position: Front Lower
Quantity per Vehicle: 2
Moog Interchange: K3161T

Application List

Jeep Cherokee (1990-2001) 2WD or 4WD
Jeep Comanche (1990-1992) 2WD or 4WD
Jeep Grand Cherokee (1993-1998) 2WD or 4WD
Jeep Grand Wagoneer (1993) 2WD or 4WD
Jeep Wagoneer (1990) 2WD or 4WD
Jeep Wrangler TJ (1997-2006) 4WD
Jeep Wrangler YJ (1986-1995) 4WD

Details

  • BJ108
  • BJ108
  • 786899961492
  • Apex Chassis
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.2 lbs.
  • W4.0000” x H4.0000” x L4.0000”
