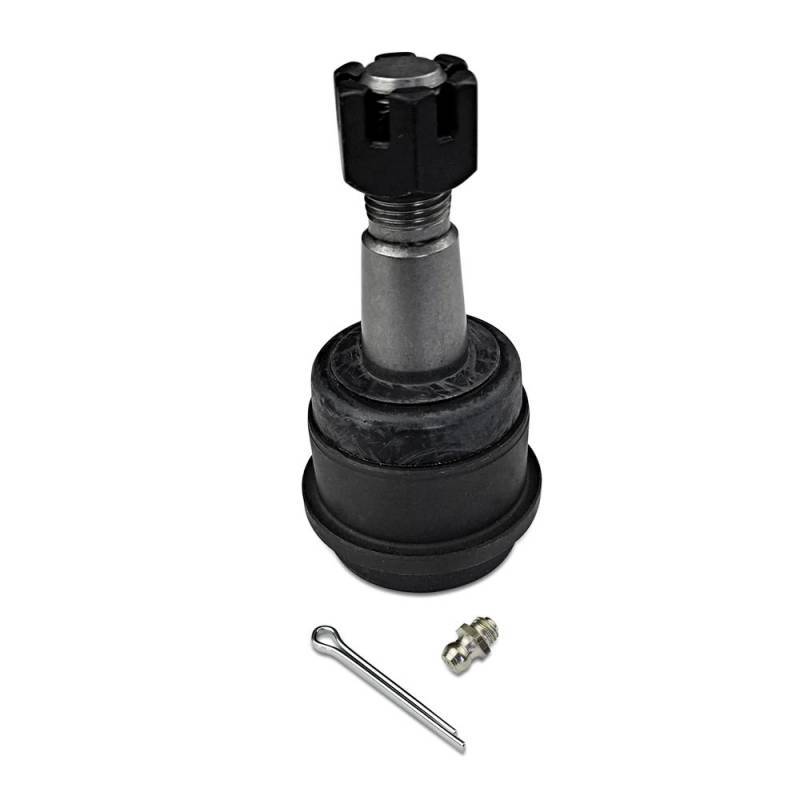

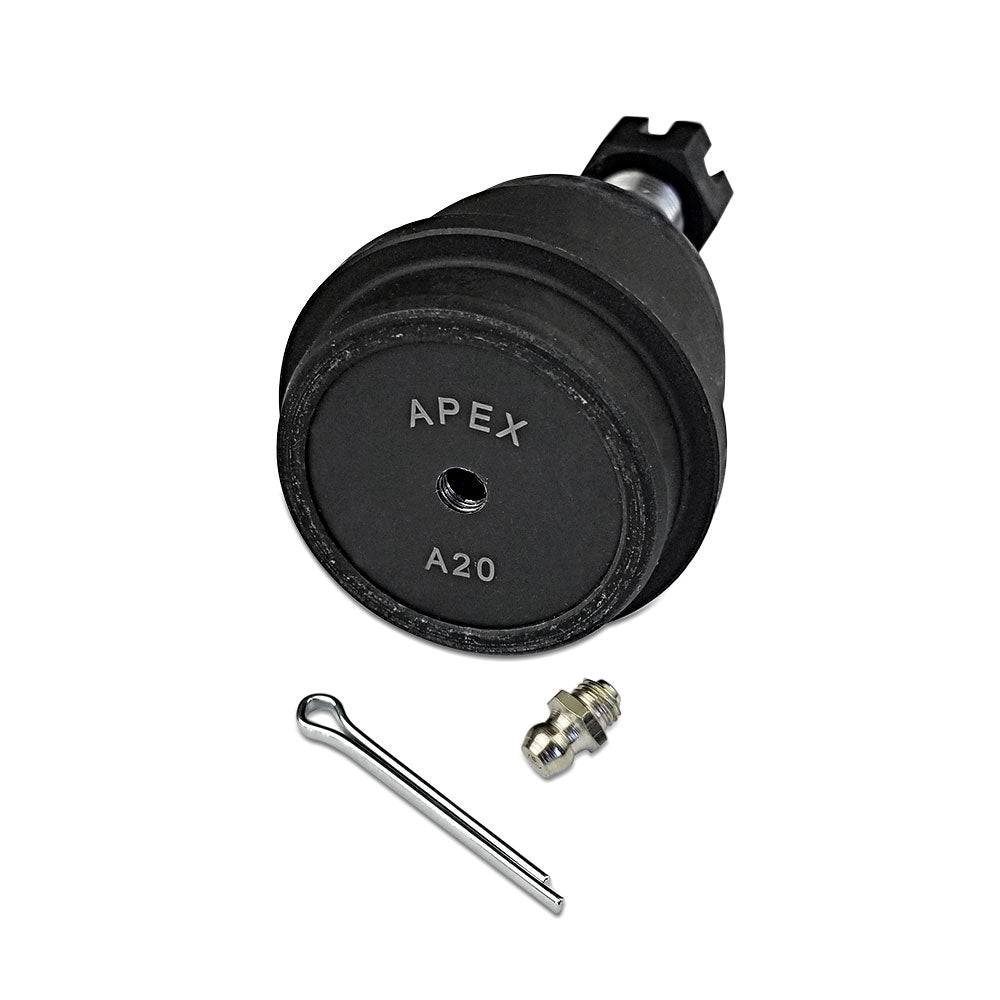

BJ124 | Apex Chassis Front Upper Ball Joint For Dodge RAM | 2000-2002

Front Upper Ball Joint | 2000-2002 | Dodge RAM 2500, Dodge RAM 3500

BJ124
Pricing: $89.46
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: No.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Compression Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Tension Nut: Very strong hold in most applications.

LUBRICATION

  • Greaseable: Yes.
  • Pre-Greased: Yes.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.



WHERE IT FITS:

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K7394

Application List

Dodge RAM 2500 (2000-2002) 4WD
Dodge RAM 3500 (2000-2002) 2WD or 4WD

Details

  • BJ124
  • BJ124
  • 786899961577
  • Apex Chassis
  • New

Shipping Information

  • Item Requires Shipping
  • 1.6 lbs.
  • W4.0000” x H4.0000” x L4.0000”
