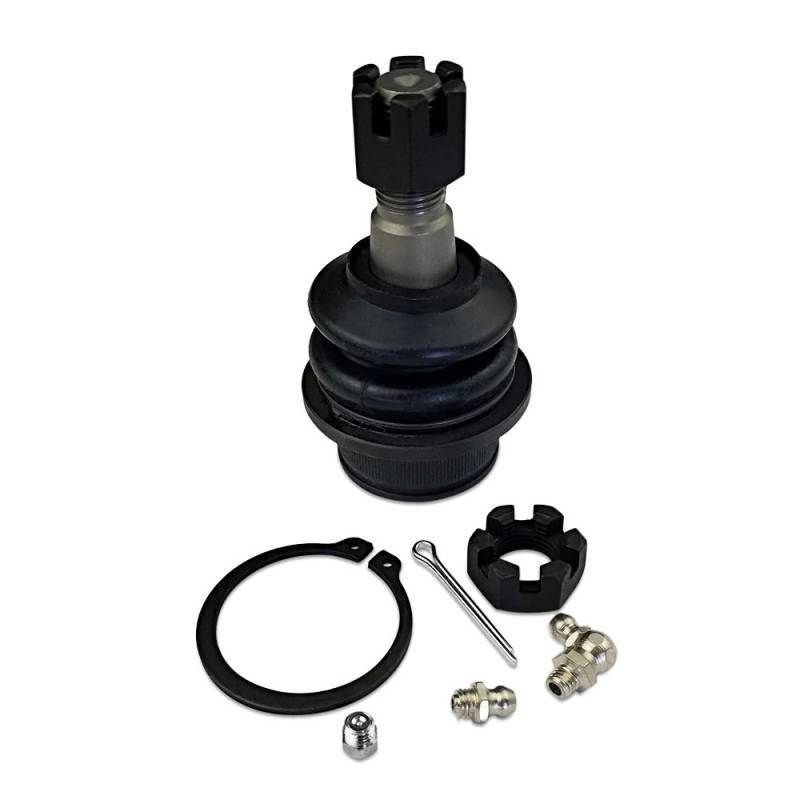

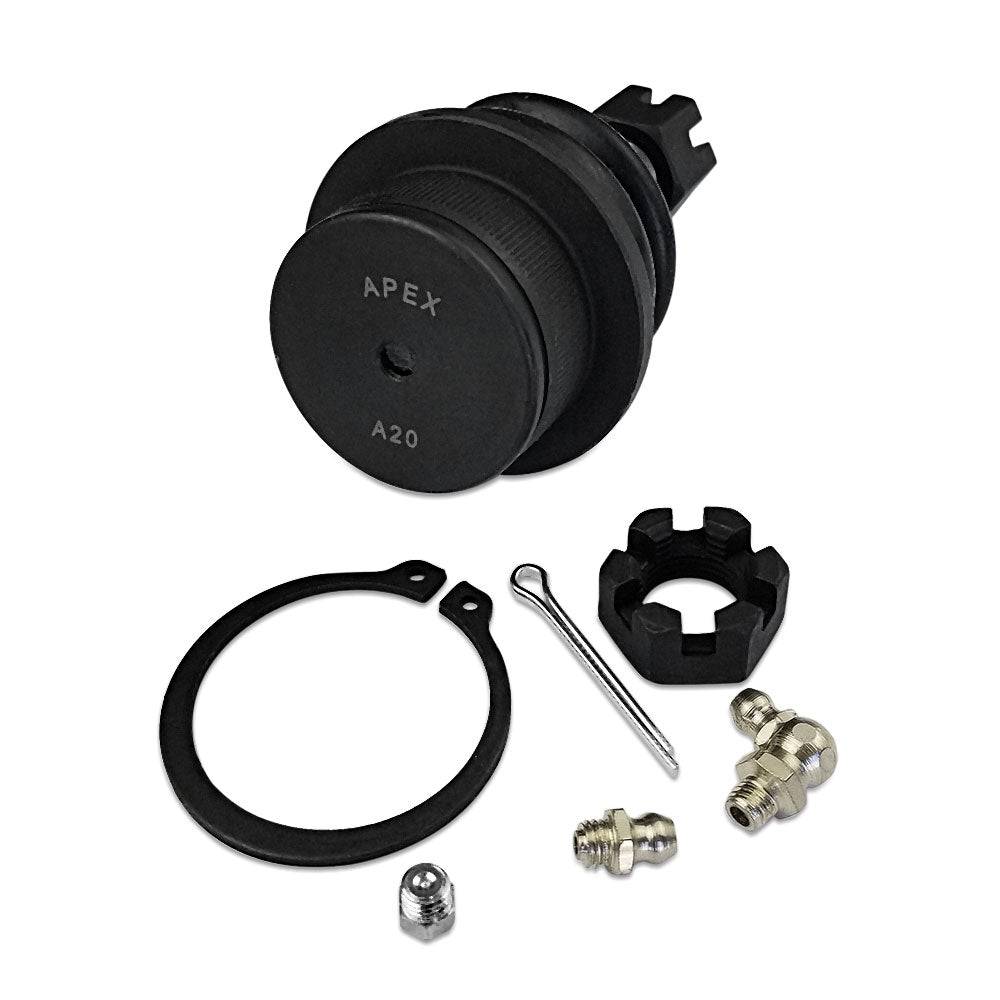

BJ140 | Apex Chassis Front Lower Ball Joint For Ford / Lincoln / Mercury | 1995-2005

Front Lower Ball Joint | 1995-2005 | Ford: Expedition, Explorer, Explorer Sport, Explorer Sport Trac, F-150 Heritage, Ranger / Lincoln: Blackwood, Navigator / Mercury: Mountaineer

BJ140
Pricing: $89.46
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for under car applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Accordion Boot: ideal for high-articulation components, more flexibility means longer life.

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.

SPECIAL FEATURES

  • Custom Features: Multiple Zerk fittings included for each application.



WHERE IT FITS:

Vehicle Position: Front Lower
Quantity per Vehicle: 2
Moog Interchange: K8695T

Application List

Ford Expedition (1997-2002) 2WD or 4WD
Ford Explorer (1995-2005) 2WD or 4WD
Ford Explorer Sport (2001-2003) 2WD or 4WD
Ford Explorer Sport Trac (2001-2005) 2WD or 4WD
Ford F-150 (1997-2003) 2WD or 4WD
Ford F-150 Heritage (2004) 2WD or 4WD
Ford F-250 (1997-1999) 2WD or 4WD
Ford Ranger (1998-2001) 2WD or 4WD
Lincoln Blackwood (2002) 2WD or 4WD
Lincoln Navigator (1998-2002) 2WD or 4WD
Mercury Mountaineer (1997-2005) 2WD or 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.5 lbs.
  • W4.0000” x H4.0000” x L4.0000”
