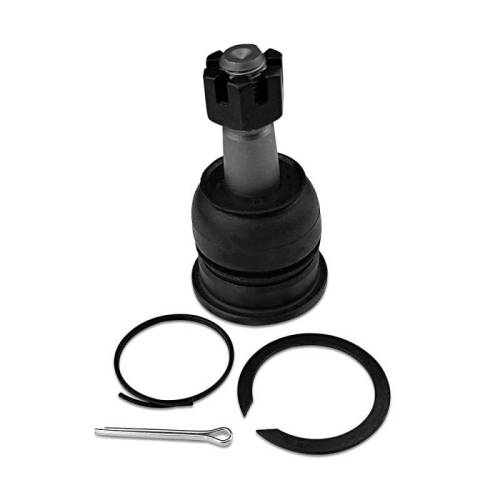

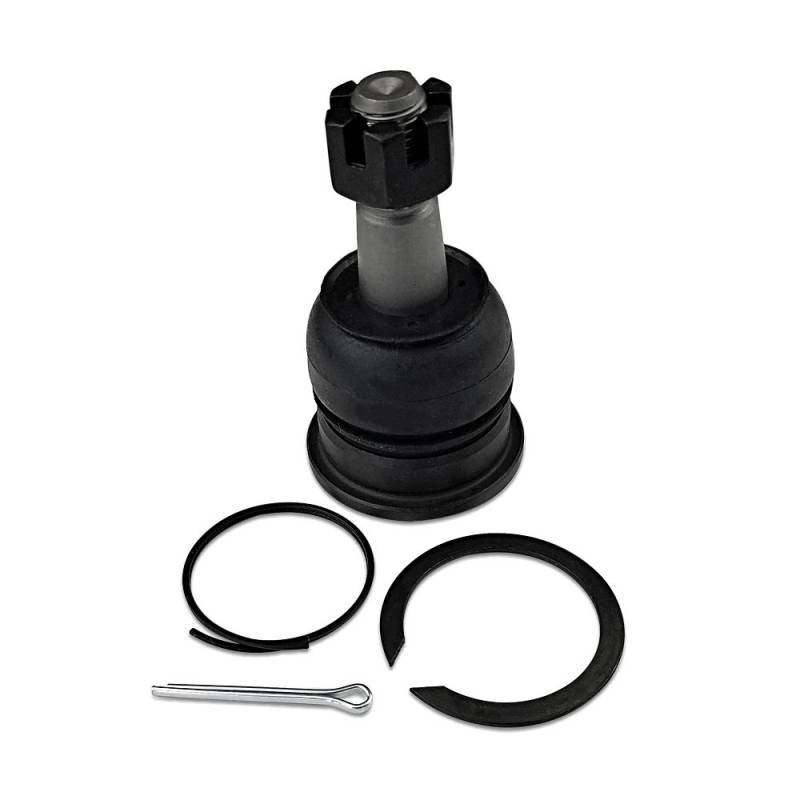

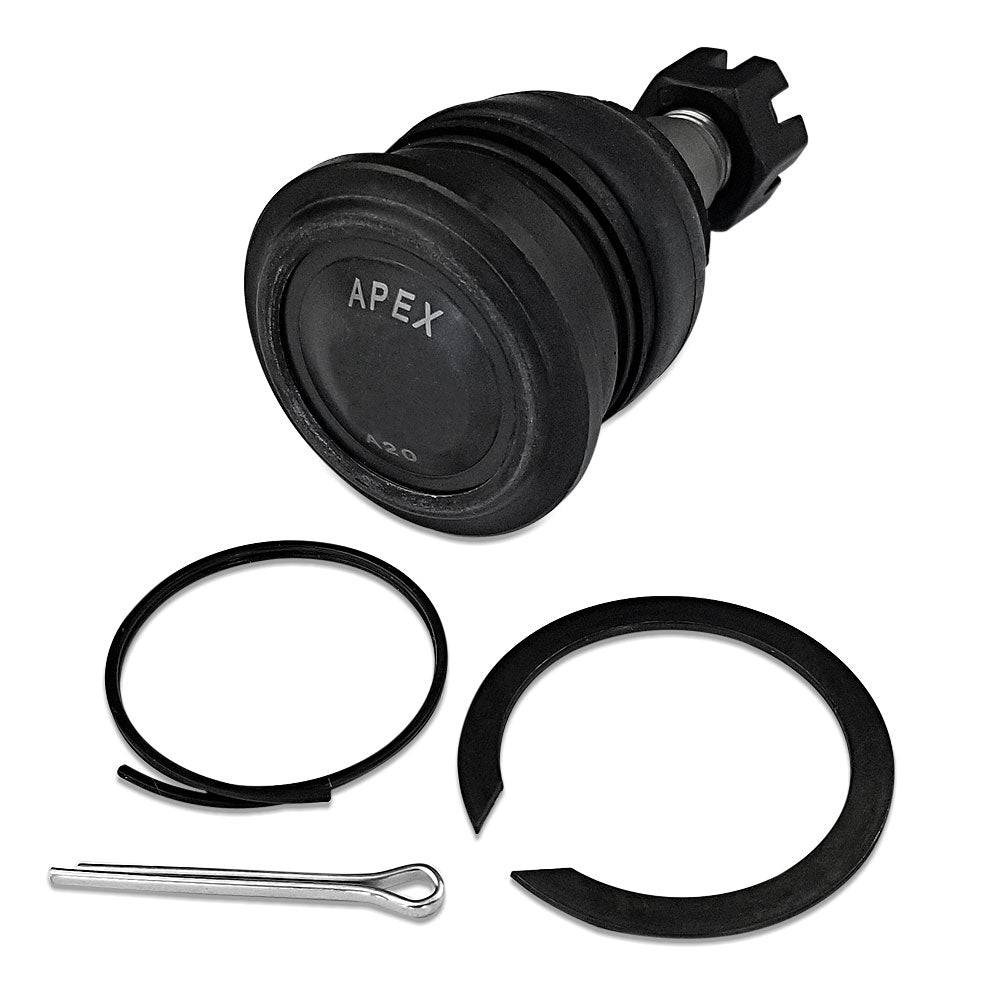

BJ141 | Apex Chassis Front Upper Ball Joint For Toyota | 1995-2007

Front Upper Ball Joint | 1995-2007 | Toyota: 4Runner, Squoia, Tacoma, Tundra

BJ141
Pricing: $89.46
Qty:

Description

THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: No
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for undecar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Compression Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Greaseable: No.
  • Pre-Greased: Yes.



WHERE IT FITS:

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K90255

Application List

Toyota 4Runner (1996-2002) 2WD or 4WD
Toyota Sequoia (2001-2007) 2WD or 4WD
Toyota Tacoma (1998-2004) 2WD
Toyota Tacoma (1995-2004) 4WD
Toyota Tundra (2000-2006) 2WD or 4WD

Details

  • BJ141
  • BJ141
  • 786899961690
  • Apex Chassis
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W4.0000” x H4.0000” x L4.0000”
