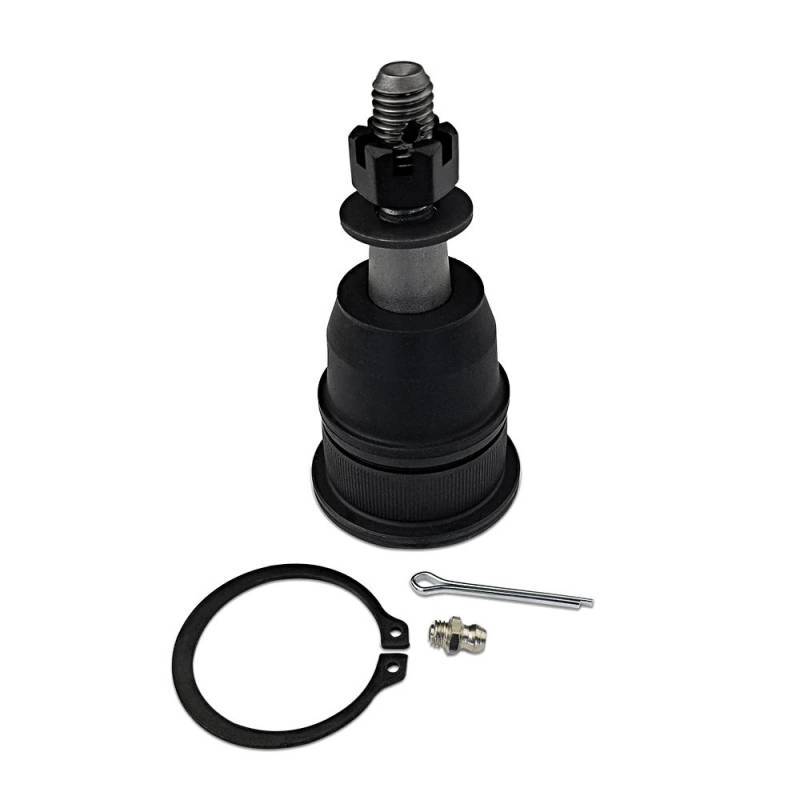

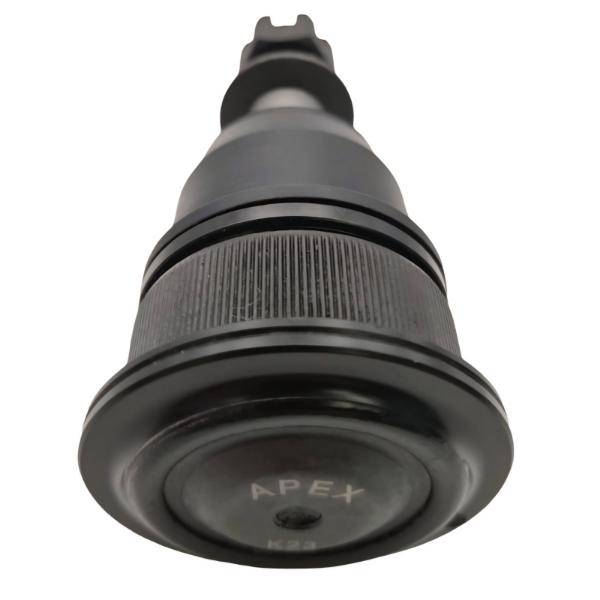

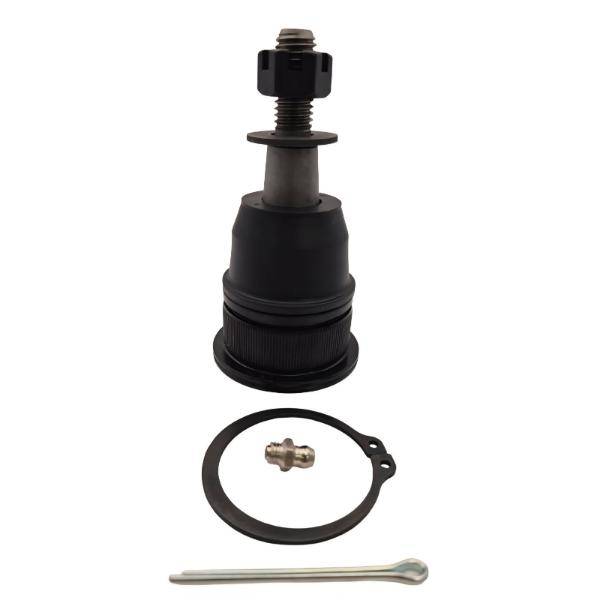

BJ144 | Apex Chassis Super HD Upper Ball Joint (Chevrolet, GMC)

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K6696

BJ144
Pricing: $89.46
Qty:

Description

THE SPECIAL SAUCE:

HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
  • Rugged Metal to Metal Bearing
BOOTS
  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Compression Boot
FINISH
  • Phosphate Finish: Extremely durable. Double coated. Rugged look.
HARDWARE
  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.

WHERE IT FITS:

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K6696

Application List

2002-2006 Chevrolet Avalanche 2500 2WD/4WD
2001-2006 Chevrolet Silverado 1500 HD 2WD/4WD
2007 Chevrolet Silverado 1500 HD Classic 2WD/4WD
2001-2004 Chevrolet Silverado 2500 2WD/4WD
1999-2000 Chevrolet Silverado 2500 2WD/4WD
2001-2010 Chevrolet Silcverado 2500 HD 2WD/4WD
2007 Chevrolet Silverado 2500 HD Classic 2WD/4WD
2001-2006 Chevrolet Silverado 3500 2WD/4WD
2007 Chevrolet 3500 Classic 2WD/4WD
2007-2010 Chevrolet Silverado 3500 HD 2WD/4WD
2001-2012 Chevrolet Suburban 2500 2WD/4WD
2001-2006 GMC Sierra 1500 HD 2WD/4WD
2007 GMC Sierra 1500 HD Classic 2WD/4WD
2001-2004 GMC Sierra 2500 2WD/4WD
1999-2000 GMC Sierra 2500 2WD/4WD
2001-2010 GMC Sierra 2500 HD 2WD/4WD
2007 GMC Sierra 2500 HD Classic 2WD/4WD
2001-2006 GMC Sierra 3500 2WD/4WD
2007 GMC Sierra 3500 Classic 2WD/4WD
2007-2010 GMC Sierra 3500 HD 2WD/4WD
2001-2012 GMC Yukon XL 2500 2WD/4WD
2000 GMC Yukon XL 2500 2WD/4WD
2003-2009 Hummer H2 2WD/4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.3 lbs.
  • W4.0000” x H4.0000” x L4.0000”
