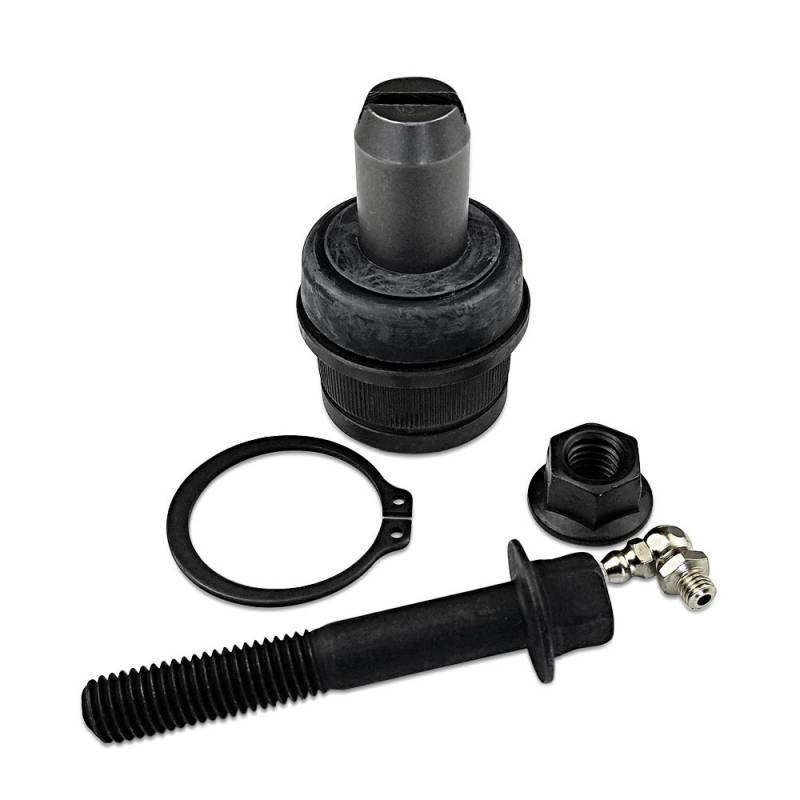

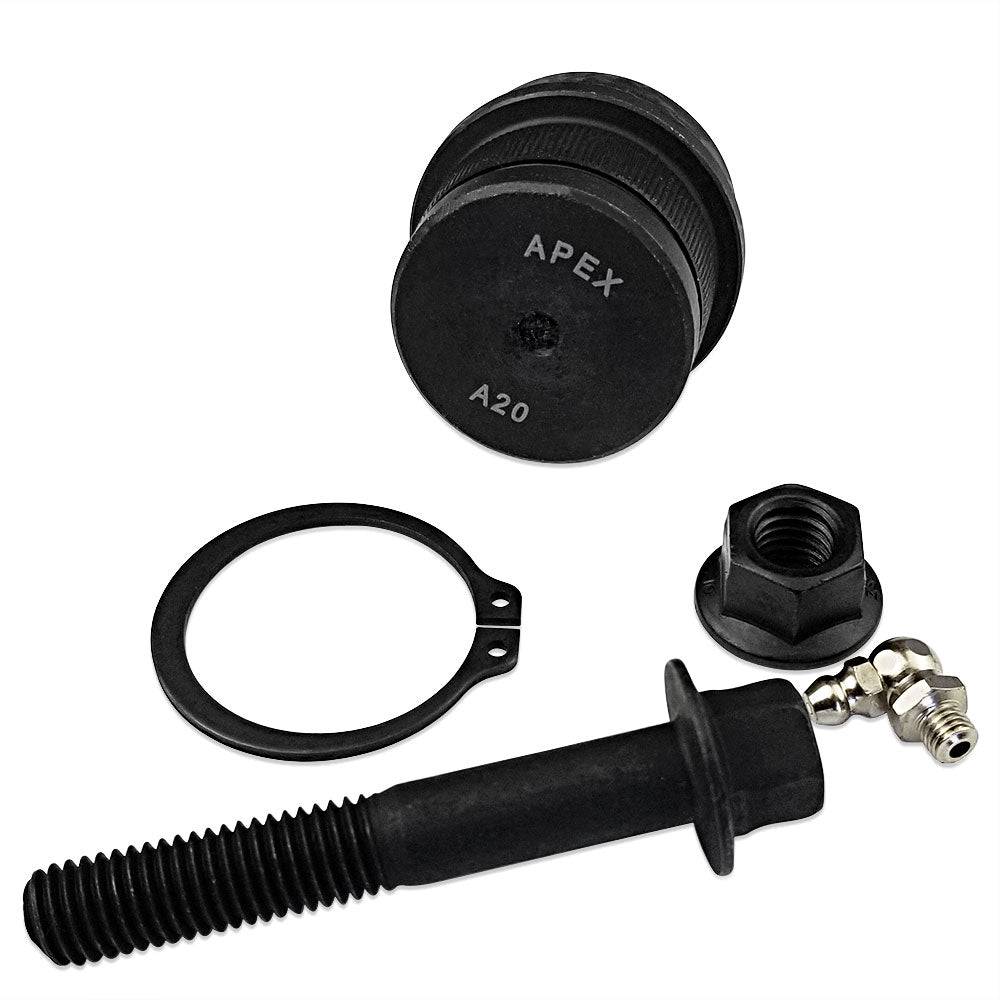

BJ147 | Apex Chassis Front Upper Ball Joint For Ford (1999-2022)

Front Upper Ball Joint For Ford (1999-2022) | Ford: Excursion, F-250, F-250 Super Duty, F-350 Super Duty

BJ147
Pricing: $89.46
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.

BEARING DESIGN

  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undecar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Pancake Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.



WHERE IT FITS:

Vehicle Position: Front Upper
Quantity per Vehicle: 2
Moog Interchange: K80028

Application List

Ford Excursion (2000-2005) 2WD
Ford F250 (1999) 2WD
Ford F250 Super Duty (1999-2022) 2WD
Ford F350 Super Duty (1999-2022) 2WD

Details

  • BJ147
  • BJ147
  • 786899961744
  • Apex Chassis
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.3 lbs.
  • W4.0000” x H4.0000” x L4.0000”
