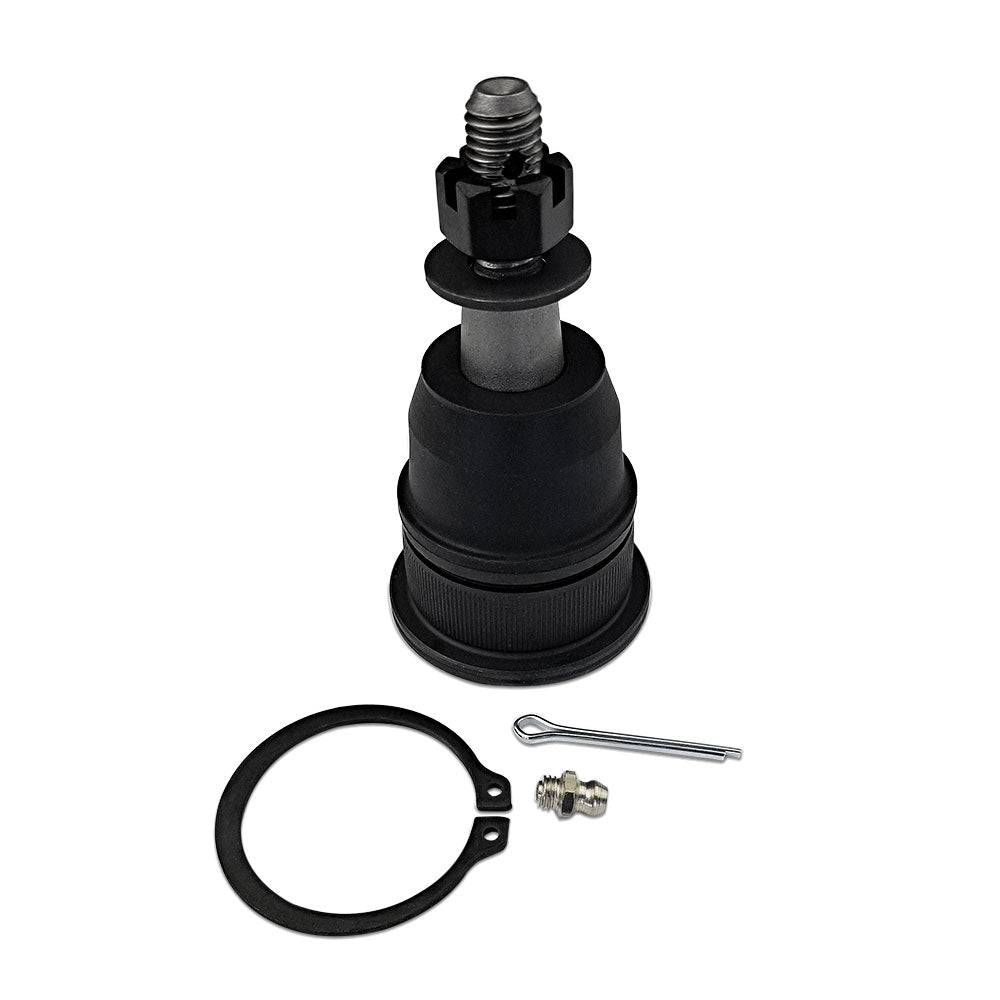

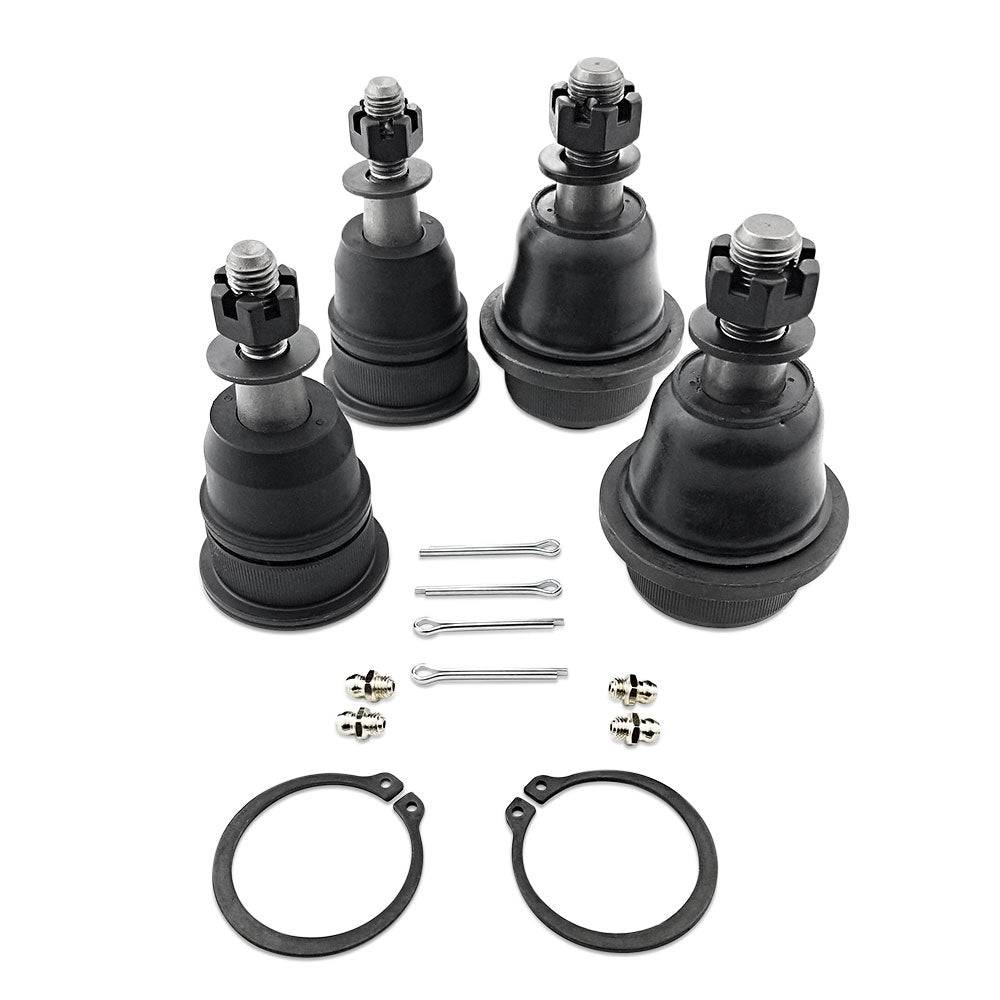

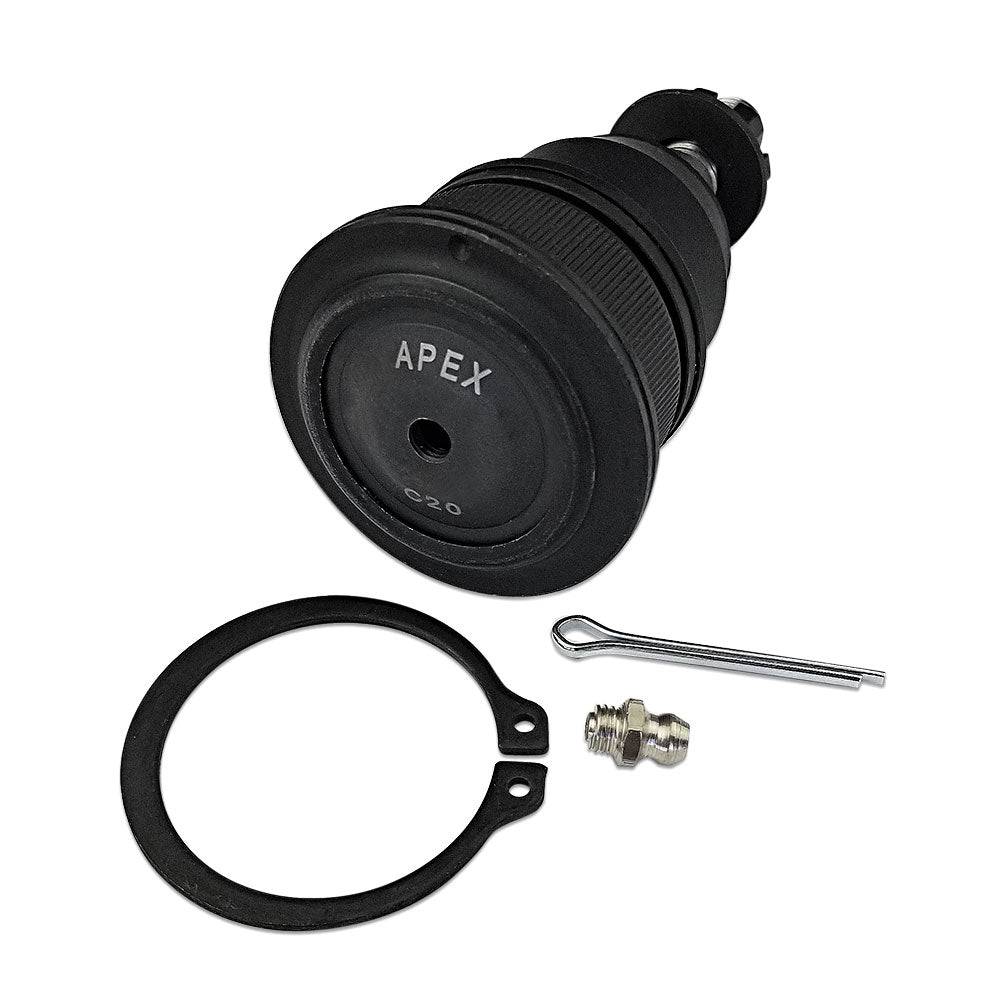

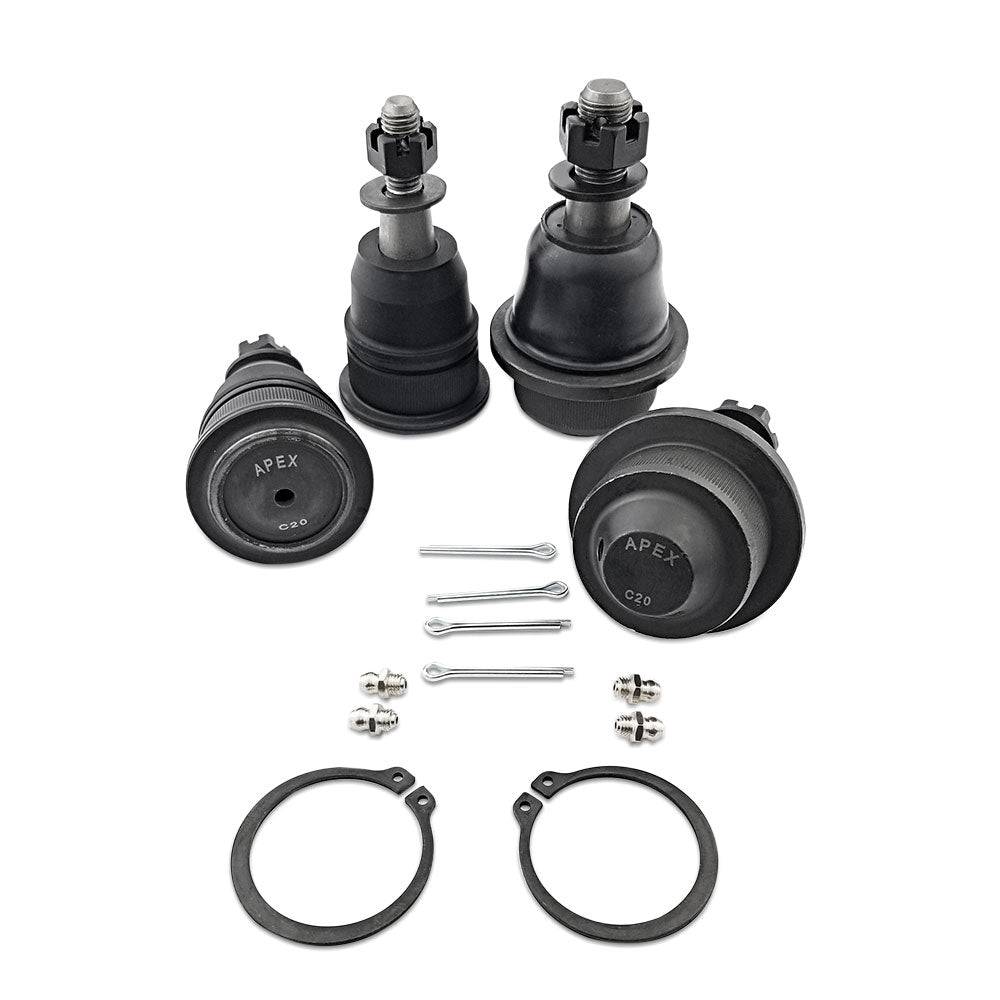

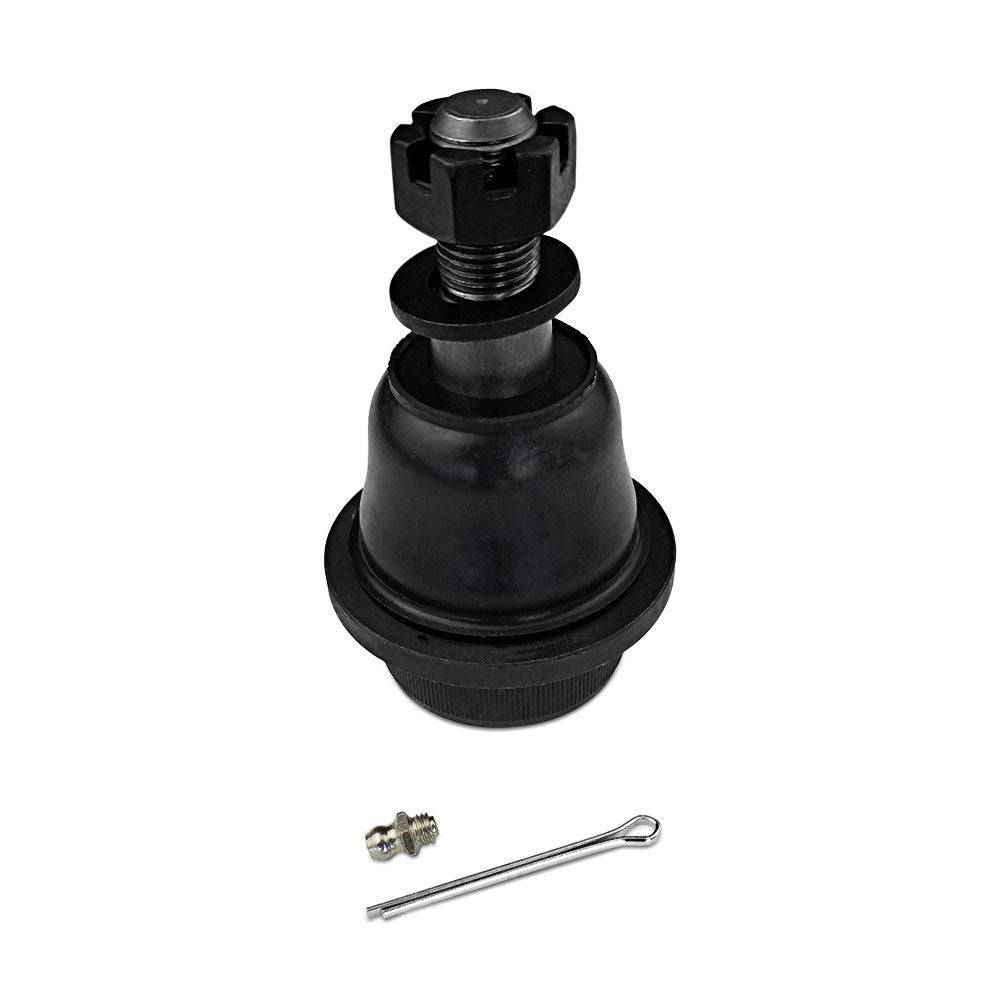

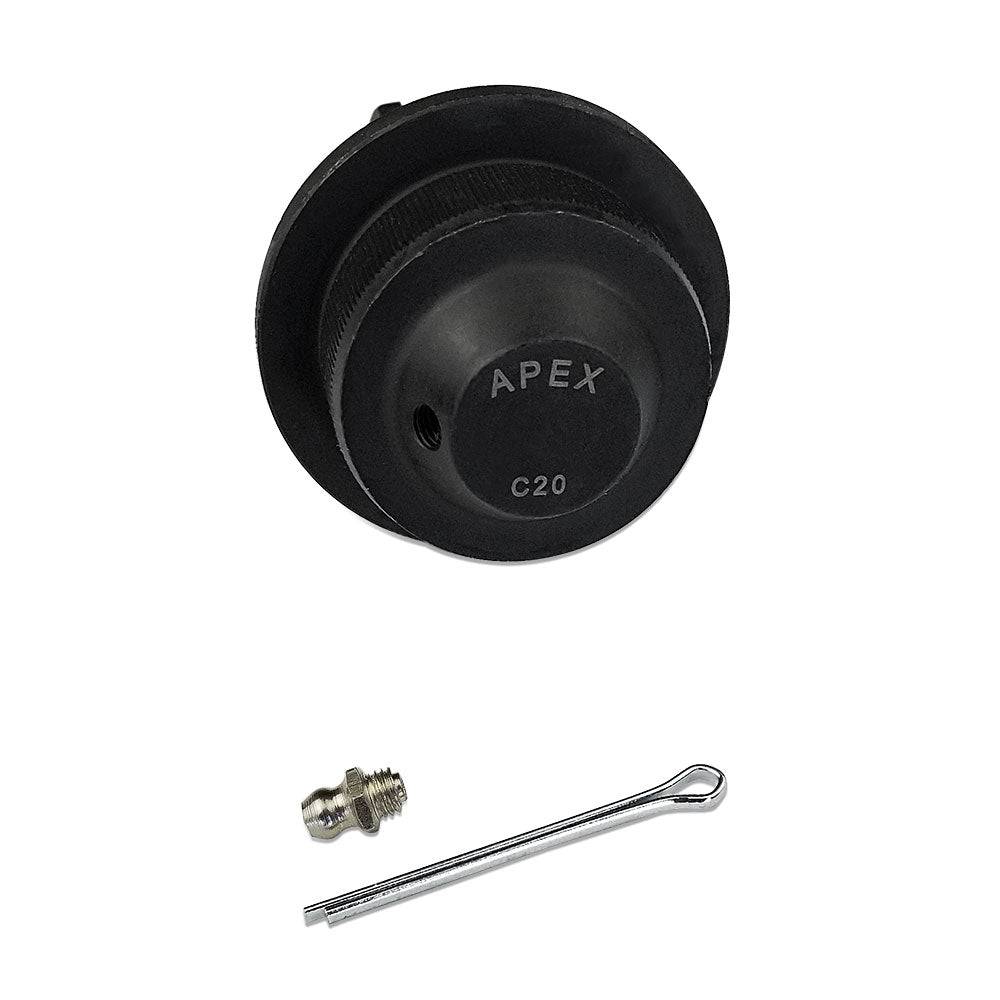

KIT105 | Apex Chassis Ball Joint Front Upper And Lower Kit For Chevrolet / GMC / Hummer | 1999-2016 | BJ143 (X2), BJ144 (X2)

Ball Joint Front Upper And Lower Kit | 1999-2016 | Chevrolet: Avalanche 2500, Silverado 1500, Silverado 2500, Silverado 3500, Suburban 2500 / GMC: Sierra 1500, Sierra 2500, Sierra 3500, Yukon XL 2500 / Hummer H2 | BJ143 (X2), BJ144 (X2)

KIT105
Pricing: $357.84
Qty:
Free Ground Shipping | Exclusions Apply*

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • UPPER: Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.
  • LOWER: Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Compression Boot.

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.



WHERE IT FITS:

Vehicle Position: Front Upper, Front Lower
Quantity per Vehicle: 1
Moog Interchange: K6693 & K6696

Application List

Chevrolet Avalanche 2500 (2002-2006) 2WD or 4WD
Chevrolet Silverado 1500 HD (2001-2006) 2WD or 4WD
Chevrolet Silverado 1500 HD Classic (2007) 2WD or 4WD
Chevrolet Silverado 2500 (2001-2004) 2WD or 4WD
Chevrolet Silverado 2500 (1999-2000) 4WD
Chevrolet Silverado 2500 HD (2001-2010) 2WD or 4WD
Chevrolet Silverado 2500 HD Classic (2007) 2WD or 4WD
Chevrolet Silverado 3500 (2001-2016) 2WD or 4WD
Chevrolet Silverado 3500 Classic (2007) 2WD or 4WD
Chevrolet Silverado 3500 HD (2007-2010) 2WD or 4WD
Chevrolet Suburban 2500 (2001-2010) 2WD or 4WD
Chevrolet Suburban 2500 (2000) 4WD
GMC Sierra 1500 HD (2001-2006) 2WD or 4WD
GMC Sierra 1500 Classic (2007) 2WD or 4WD
GMC Sierra 2500 (1999-2004) 2WD or 4WD
GMC Sierra 2500 HD (2001-2010) 2WD or 4WD
GMC Sierra 2500 HD Classic (2007) 2WD or 4WD
GMC Sierra 3500 (2001-2006) 2WD or 4WD
GMC Sierra 3500 Classic (2007) 2WD or 4WD
GMC Sierra 3500 HD (2007-2010) 2WD or 4WD
GMC Yukon XL 2500 (2001-2010) 2WD or 4WD
GMC Yukon XL 2500 (2000) 4WD
Hummer H2 (2003-2009) 2WD or 4WD
