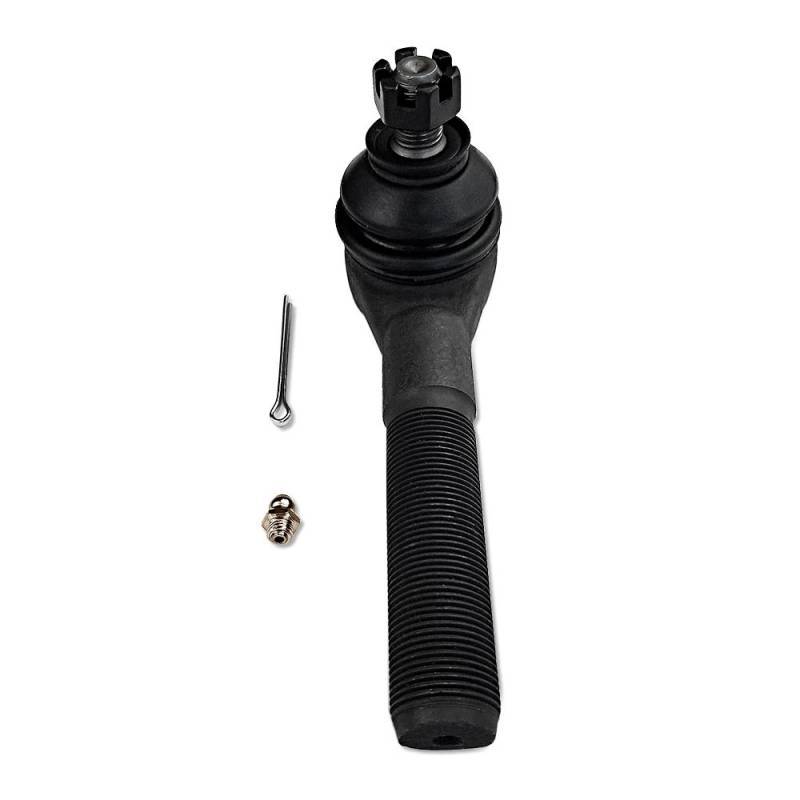

TR125 | Apex Chassis Tie Rod End At Pitman Arm For Jeep Cherokee / Comanche / Wrangler | 1991-2006

Tie Rod End At Pitman Arm | 1991-2006 | Jeep Cherokee / Comanche / Wrangler

TR125
Pricing: $37.28
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Accordion Boot: ideal for high-articulation components, more flexibility means longer life.

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.



WHERE IT FITS:

Vehicle Position: At Pitman Arm
Quantity per Vehicle: 1
Moog Interchange: ES3096L

Application List

Jeep Cherokee (1991-2001) 2WD or 4WD
Jeep Comanche (1991-1992) 2WD or 4WD
Jeep Grand Cherokee (1993-1998) 2WD or 4WD
Jeep Grand Wagoneer (1993) 2WD or 4WD
Jeep Wrangler TJ (1997-2006) 4WD
Jeep Wrangler YJ (1991-1995) 4WD

Details

  • TR125
  • TR125
  • 786899962123
  • Apex Chassis
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.5 lbs.
  • W5.0000” x H5.0000” x L5.0000”
