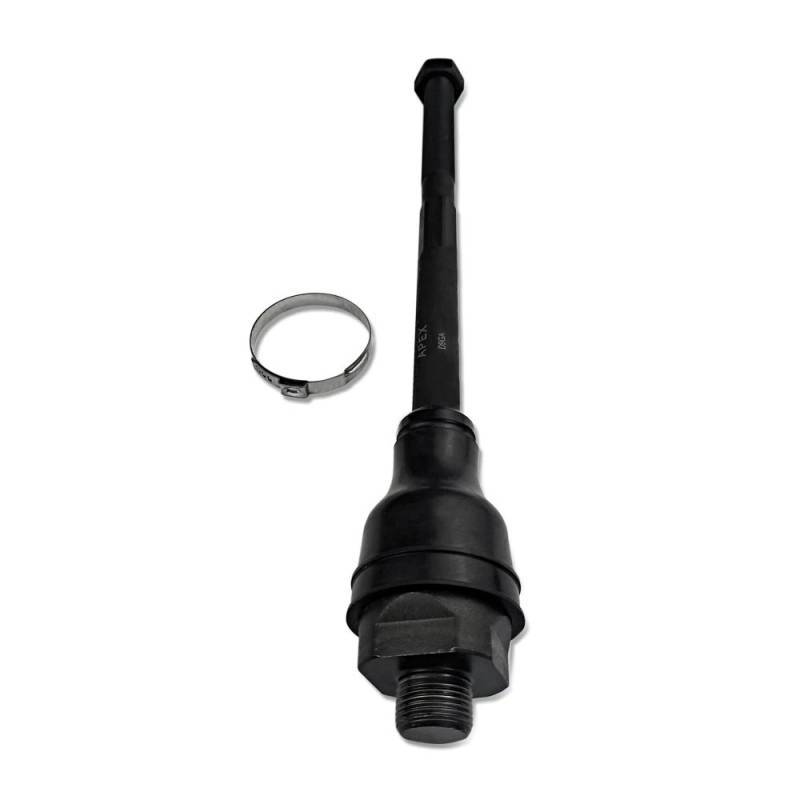

TR170 | Apex Chassis Tie Rod End Front Inner For Chevrolet / GMC | 2011-2019

Tie Rod End Front Inner | 2011-2019 | Chevrolet / GMC

TR170
Pricing: $49.20
Qty:

Description



THE SPECIAL SAUCE:

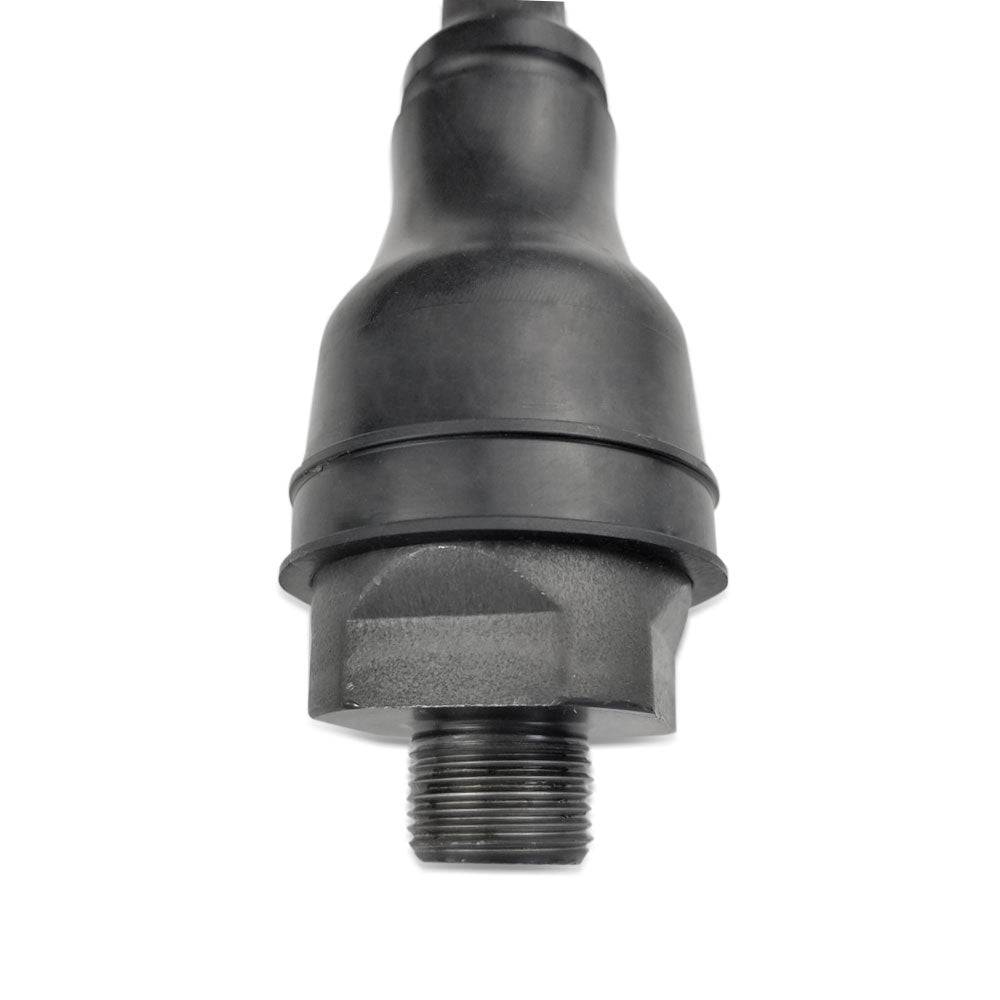

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Compression Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : No, needle style grease port in boot



WHERE IT FITS:

Vehicle Position: Front Inner
Quantity per Vehicle: 2
Moog Interchange: EV800935

Application List

Chevrolet Silverado 2500 HD (2011-2019) 2WD or 4WD
Chevrolet Silverado 3500 HD (2011-2019) 2WD or 4WD
GMC Sierra 2500 HD (2011-2019) 2WD or 4WD
GMC Sierra 3500 HD (2011-2019) 2WD or 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.1 lbs.
  • W3.0000” x H6.0000” x L13.0000”
