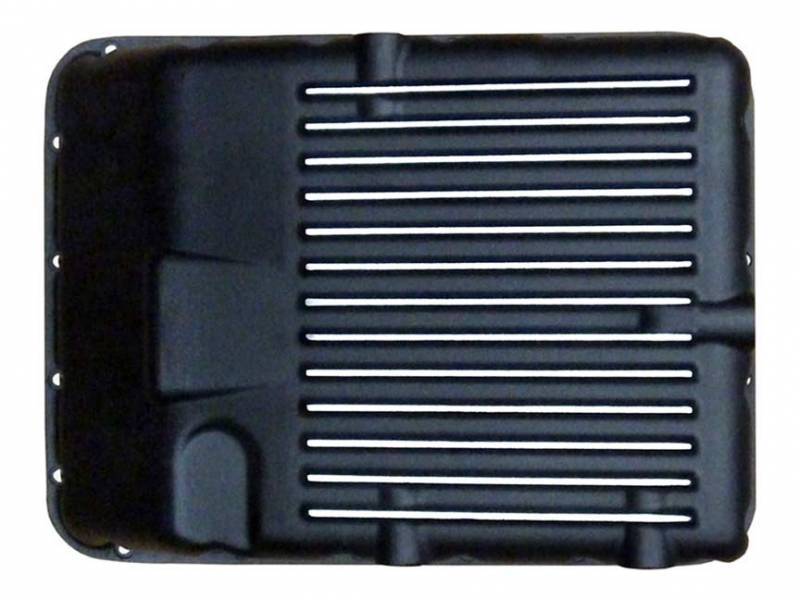

11142-B | Aisin As69Rc, A466Nd Deep Transmission Pan | Black Finish
2013-2022 Ram 3500, 4500, 3500, 6.7L Cummins | 2016-2022 Nissan Titan XD, Diesel
11142-B
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing:
$722.80
Description
Volume: 3 to 4 quarts over stock
Dimensions: See Image dimensions.
Number of Bolts: 20
PML made this transmission pan for high output diesel trucks.
Benefits:
Extra capacity
Heavy duty construction
Fins for heat disipation
Drain hole and magnetic drain plug included
Bolt on replacement — clears frame, cables cooling lines
Baffled on the inside
PML designed this pan for the Aisin AS69RC transmission. This PML pan has also been installed on the related Aisin AS66RC and A466ND transmissions. Installer must verify that this pan is appropriate for the specific vehicle configuration.
Installation Note: On some vehicles, there cross member towards the rear of the vehicle that makes the bolts on the back end of the transmission pan difficult to access. Although PML designed this pan to provide as much clearance as possible to those bolts, it might be necessarily to jack up the transfer case to remove the stock pan and and install the PML pan. Several customers have recommended using a 5mm ball socket for the three rear bolts under the cross member.
Dimensions: See Image dimensions.
Number of Bolts: 20
PML made this transmission pan for high output diesel trucks.
Benefits:
Extra capacity
Heavy duty construction
Fins for heat disipation
Drain hole and magnetic drain plug included
Bolt on replacement — clears frame, cables cooling lines
Baffled on the inside
PML designed this pan for the Aisin AS69RC transmission. This PML pan has also been installed on the related Aisin AS66RC and A466ND transmissions. Installer must verify that this pan is appropriate for the specific vehicle configuration.
Installation Note: On some vehicles, there cross member towards the rear of the vehicle that makes the bolts on the back end of the transmission pan difficult to access. Although PML designed this pan to provide as much clearance as possible to those bolts, it might be necessarily to jack up the transfer case to remove the stock pan and and install the PML pan. Several customers have recommended using a 5mm ball socket for the three rear bolts under the cross member.
Application List
2013-2022 Ram 3500, 6.7L Cummins
2013-2022 Ram 4500, 6.7L Cummins
2013-2022 Ram 5500, 6.7L Cummins
2016-2022 Nissan Titan XD, Diesel
Titan Owners: The 2016 to 2019 Nissan Titan XD diesel trucks have the Aisin A466ND transmission, which has the same stock pan and gasket and very similar filter. See pictures of an installlation of this pan on a Titan in the Installations section.
2013-2022 Ram 4500, 6.7L Cummins
2013-2022 Ram 5500, 6.7L Cummins
2016-2022 Nissan Titan XD, Diesel
Titan Owners: The 2016 to 2019 Nissan Titan XD diesel trucks have the Aisin A466ND transmission, which has the same stock pan and gasket and very similar filter. See pictures of an installlation of this pan on a Titan in the Installations section.
