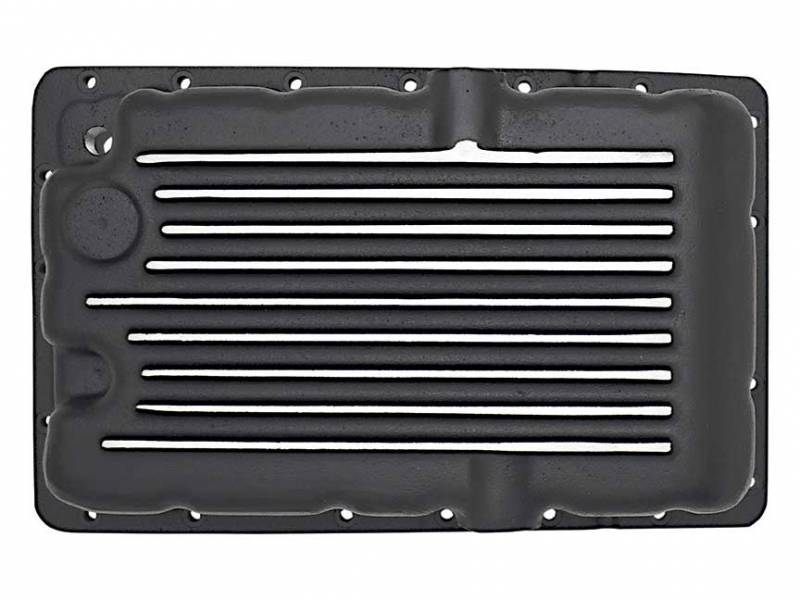

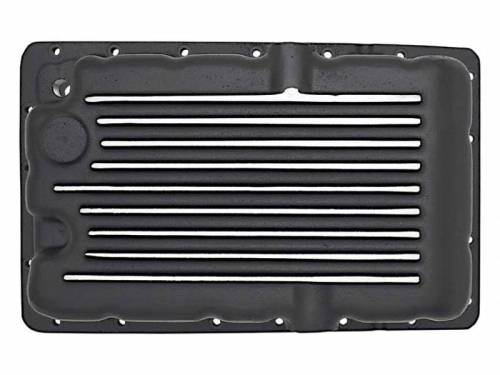

11076-B | AW4 Deep Transmission Pan | Black Finish

Volume: approximately 1 quart over stock compared to AW4 stock pan Mopar part number 83504037

Dimensions: See Image for dimensions.
1 1/4 inches deeper than stock Mopar part number 83504037.

Number of Bolts: 19

Benefits:
Fins and extra capacity to keep fluid cooler
Drain and magnetic drain plug for easy servicing
Heavy duty, quality sand cast aluminum contruction for strength and a leak-free seal
Boss for optional temperature sending unit
Includes new mounting bolts and magnetic drain plug
No ground clearance issue or skid plate interference since pan is only 1 1/4 inches deeper than stock (for most vehicle and skid plates)
Skid Plates and Off Roading: Skid plates are recommended for any offroading vehicle. A sand cast aluminum pan is heavy duty but if it hits a rock, it will crack. Some skid plates may need spacers to allow for the additional depth of the PML pan.

"No Dipstick" design.
No Dipstick Design
This pan does NOT work with a dipstick. To install this PML pan, you will need to remove the stock dipstick and possibly the receiver tube.

This means you would no longer use your dipstick. The transmission fluid level would be checked from pan!

The PML design is flexible to to work with several vehicles. This design is for the AW4 on Jeep vehicles and is based on Mopar part number 83504037.

How to fill: You fill through the fill/level check hole on the bottom of the pan. PML provides a fitting for the hole. You could also use a pump. You would fill until the fluid starts to dribble out then put in the plug.

Vehicle configurations vary! Always check you vehicle configuraton and clearance before ordering.

The 4.0 engine is usually paired with the AW4 transmission.
