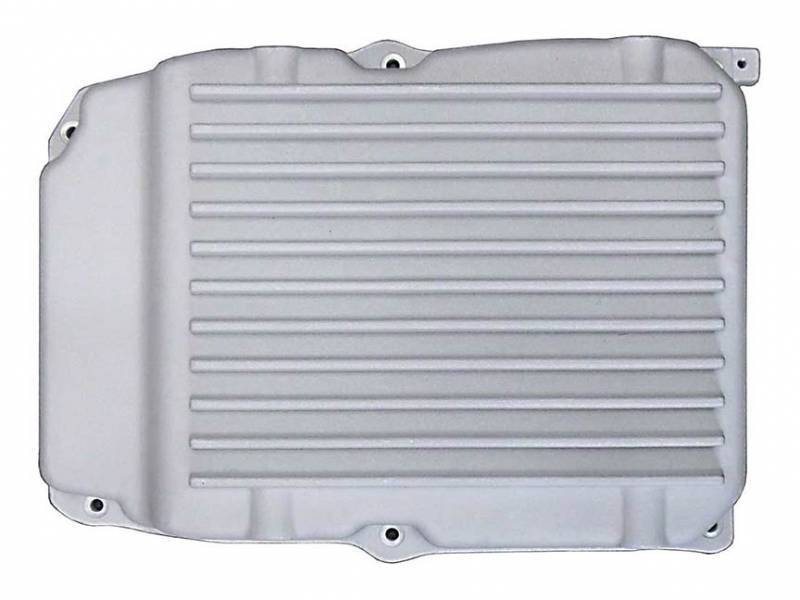

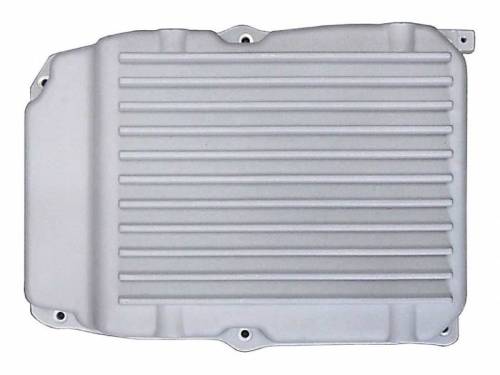

11117-AC | Chrysler, Mercedes Nag1, 722.6, W5A580, W5A380, W5J400 Deep Transmission Pan | As Cast Finish

Included with pan: one custom gasket, new mounting bolts, magnetic drain plug

Volume: 1 1/2 to 2 quarts over stock

Dimensions: See Image for dimensions.
About 3.5 inches tall, 1.8 taller than stock.

Number of Bolts: 6

Benefits:
Cooling — extra capacity, fins, and aluminum construction for reported temperature drops of 10 to 30 degrees
Clearance — step to clear frame
Drain — on the side for safety, pan includes magnetic drain plug and mounting bolts
Secure seal — machined flat flange, no more retaining clips and formed gasket
Strength — high quality, thick walls

The Chrysler/Mercedes NAG1, 722.6 family of transmission includes W5A580, WA580, W5A380, and W5J400.

Many Chrysler, Dodge, Jeep, and Mercedes vehicles have the NAG1, 722.6 (W5A580, WA580, W5A380, W5J400) transmission so PML has designed three different pans for the transmission.

Some vehicles which typically can use this pan are:

Jeep Grand Cherokee (SRT8, Laredo, Limited, Overland), 2006 to 2013
Dodge Magnum, Charger, Challenger, 2006 to 2013, some 2014
Chrysler 300, 300C with 5 speed transmissions, 2005 to 2012
Mercedes (several models/years, sound plate may need altering, see INSTALLATIONS)
Sprinter Vans (some models, usually 2002 to 2006, check for frame crossmembers)
Always check your vehicle to verify transmission and clearance as configurations vary.

General Guidelines:

To determine which PML NAG1, 722.6 pan will work best, check how much space is available for a larger transmission pan.
Look at the space from the stock transmission pan to:

Frame
Exhaust
Ground (the transmission pan should not be lower than the frame)
Drive Shaft
Skid or sound dampening plates
Other vehicle parts
Little or no space, like Jeep Wrangler and some cars:
NAG1, 722.6 Stock Capacity Transmission Pan

Some space, like Grand Cherokee, some cars (Magnum, Charger), some Sprinter:
NAG1, 722.6 2 Quarts Over Transmission Pan (this pan)

Lots of ground clearance, like Sprinter:
NAG1, 722.6 2.5 Quarts Over Transmission Pan

Gasket
PML makes a cork composite gasket for PML NAG1/722.6 transmission pans.
One PML gasket is included with each transmission pan

Filter for PML 722.6/NAG1 Transmission Pan
The Mercedes part number on the filter PML used during design and development is 140 277 00 95.

PML design this pan to work with the stock filter. There are filter supports cast into the pan to hold the filter in place at the same level as the stock pan. The filter supports eliminate the need for an extension.

Dipstick and Transmission Fluid Level
The fluid level should be at the same level in the stock pan and a PML pan. On many vehicles, the dipstick uses the bottom of the pan as a stop. PML pans have a ledge where the dipstick hits at the same level as the stock pan even though the PML pan is larger overall. In the above images of the inside of the pan, you can see the square ledge near the filter supports.

Many vehicles with these transmissions do not have a dipstick and the correct fluid level is based on temperature. The cap for the transmission fluid fill and level check can say "See Dealer". The installer of a replacement pan needs to have the correct tools to replace the transmission fluid according to the factory instructions. PML does not provide a dipstick.

Shield on Passenger's Front Corner
Some vehicles have a shield that attaches to the retaining clip at the front, passenger side corner of the stock pan.

Pans available since March 2016 have a tab for the shield to bolt on to. If you have an older pan, you will need to fabricate a connector or slightly bend the shield to bolt onto the PML pan.

Drain
PML placed the drain hole on the driver's side, near the rear of the vehicle.
A magnetic drain plug is included along with new mounting bolts.

A side location for the drain is safer than the bottom and still has easy access.
