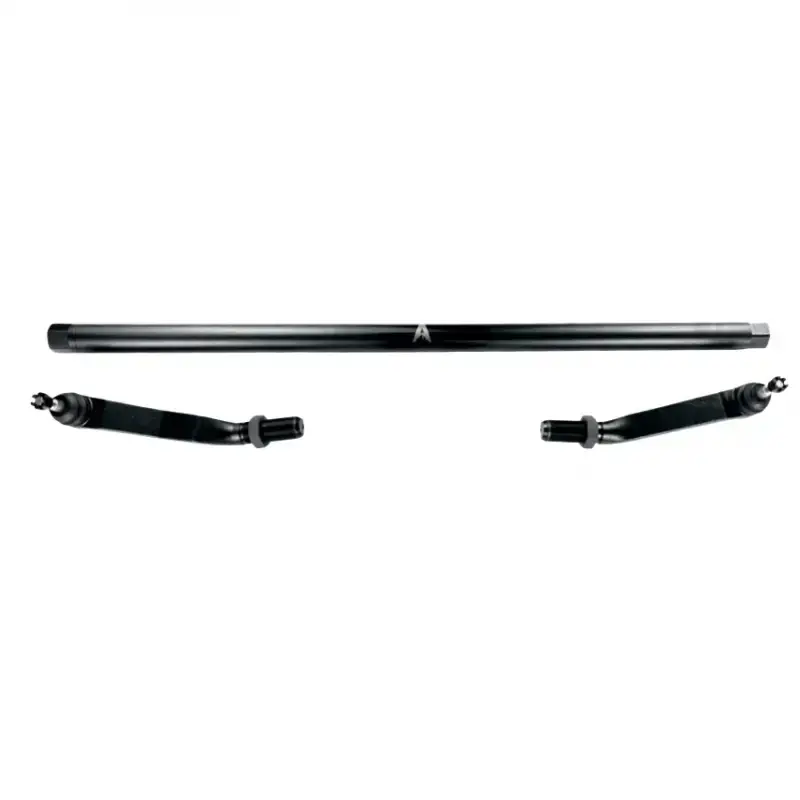

KIT181 | Apex Chassis HD Tie Rod Front Kit For Dodge Ram 2500 / 3500 | 2009-2013

HD Tie Rod Front Kit | 2009-2013 | Dodge Ram 2500 / 3500 4WD

KIT181
Pricing: $820.05
Qty:
Free Ground Shipping | Exclusions Apply*

Description

A direct replacement extreme duty Tie Rod assembly to replace your underperforming OE steering. Oversized tie rod ends, connected by a massive DOM tube, eliminates death wobble and tightens up steering under the most extreme conditions. A weak adjusting sleeve is replaced via tie rod ends threading directly into the connecting rods, secured by jam nuts and our proprietary ninja lock-washers.

*Does not work with Thuren Track Bar

This will change the way your vehicle drives forever!



WHAT IT FITS:

Dodge Ram 2500 (2009-2013) 4WD

Dodge Ram 3500 (2009-2013) 4WD



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat-Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for under-car applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.

FINISH

  • E-Coat Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry-standard where high vibration loads occur.

ADJUSTING RODS

  • E-Coat Finish: Durable e-coat treatment
  • Tie Rod - 1.75" DOM SAE 1020 Tube: Heavy walled steel tubing provides the tightest most robust steering on the market

LUBRICATION

  • Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

SPECIAL FEATURES

  • Ninja Washers (TM): An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end.

Application List

Dodge Ram 2500 4WD (2009-2013)
Dodge Ram 3500 4WD (2009-2013)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 47.0 lbs.
  • W5.0000” x H5.0000” x L44.0000”
