153712HK | Belltech 6-8 Inch Complete Lift Kit with Trail Performance Coilovers & Shocks (2019-2023 Ram 1500 4WD)
2019-2023 Ram 1500 Pickup 4WD | Does NOT Fit Models with 22" OEM Wheels | Does NOT Fit Classic Models | Does NOT Fit E Torque Models
Description
Elevate your truck or SUV to new heights with Belltechs all new suspension lift kit systems from Belltech. Precision engineered in the USA to ensure every aspect was considered to provide you with the highest quality Lift Kit Suspension System that delivers on performance. Through innovative design with the focus on performance, these suspension lift kit systems are the best riding lift kits on the market - period. Built to ride, handle and tackle off road obstacles with ease!
2019-2023 Ram 1500 4WD (All Cabs) exc. Classic Body, Will NOT fit eTorque models
PLEASE NOTE: RAM trucks with OEM 22" wheels require a larger bore steering knuckle due to a larger wheel bearing assembly, this lift kit will not fit the OEM wheels.*
Belltech is excited to announce that we have extended our product line to now include Suspension Lift Kit Systems for the 2019+ RAM 1500 4x4s. Precision engineered in the US, this suspension lift kit system is the best riding lift kit on the market - period. Belltech's precisely engineered lift kits include our patented front height adjustable Trail Performance coilovers and rear Trail Performance Twin Tube shocks. These lift kits not only improve your ride quality but also preserve factory alignment cams and specifications, retain the factory track width, and most importantly, do not induce bump steer!

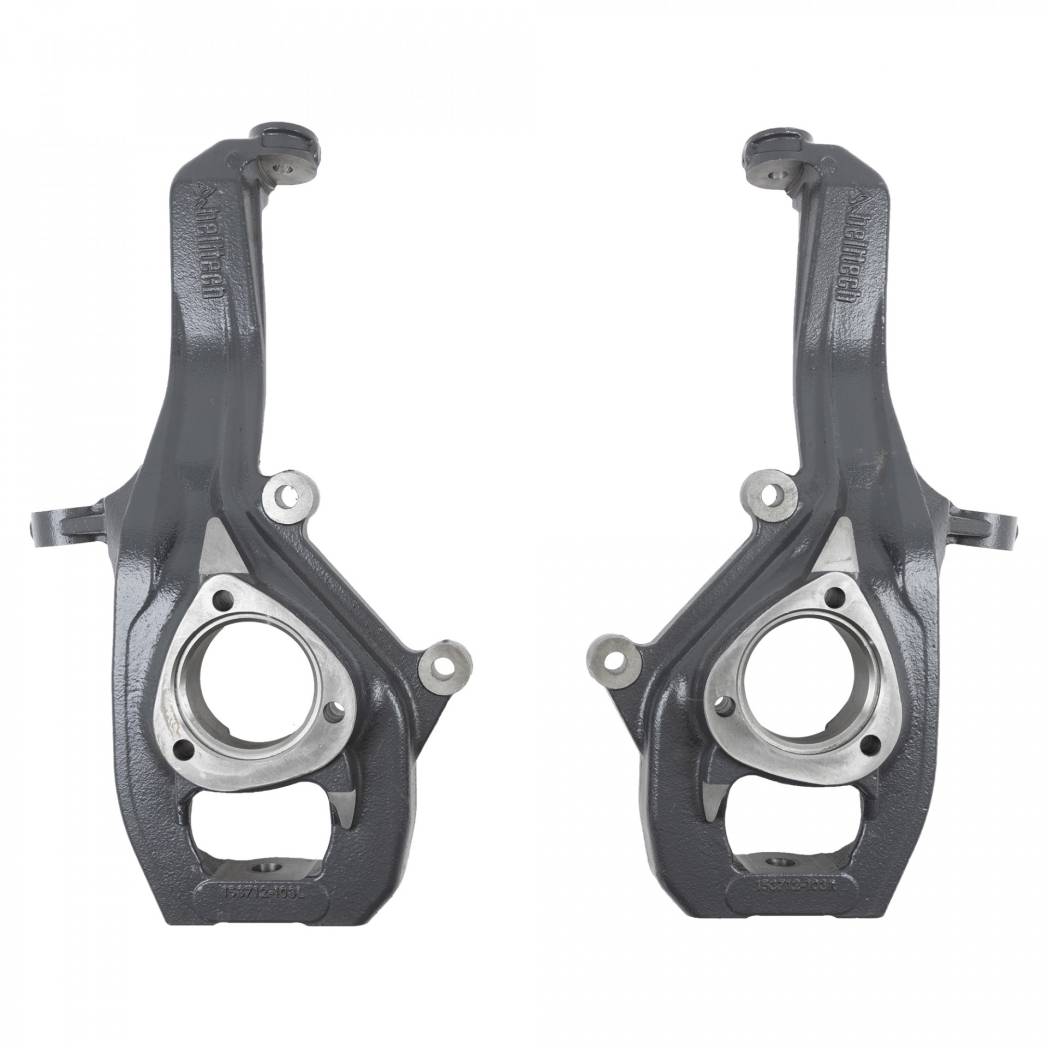

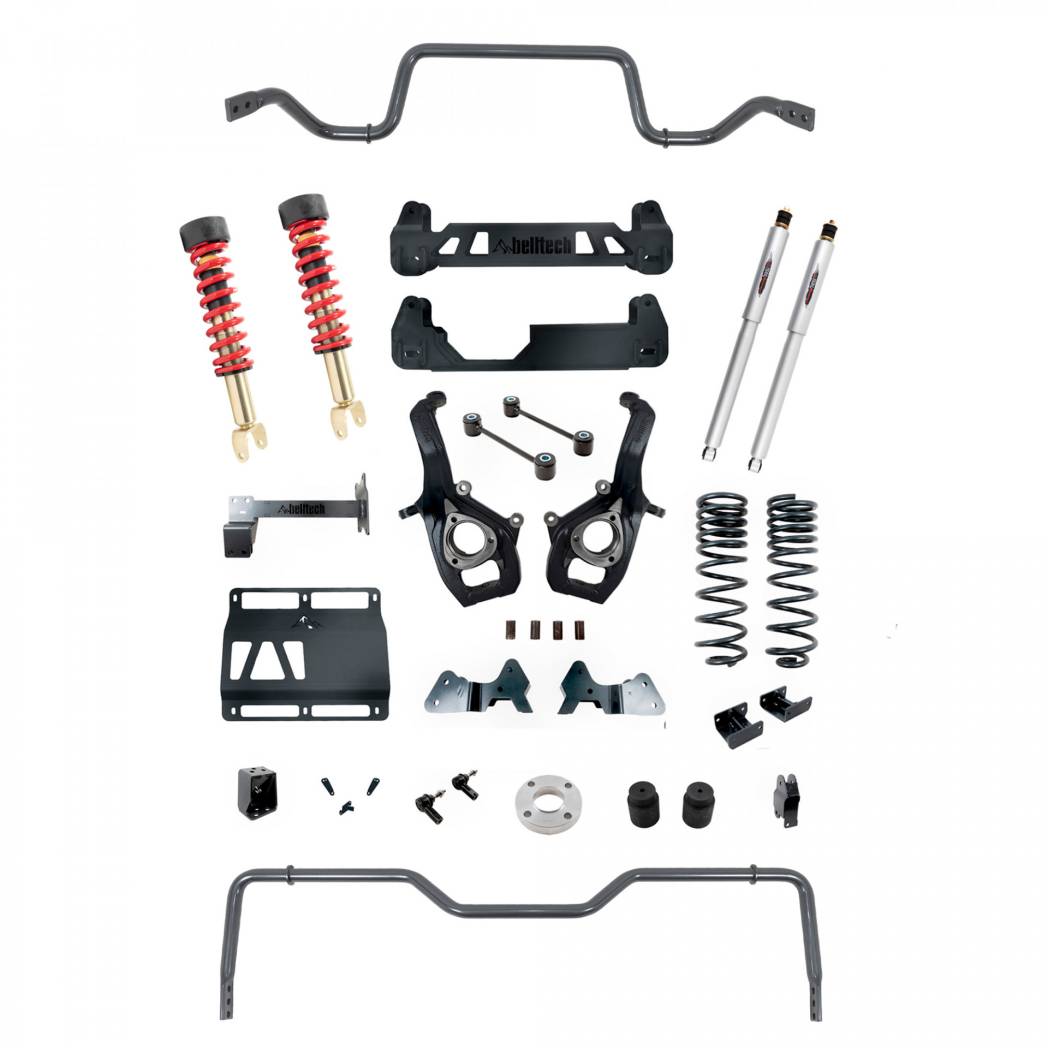

The front end includes replacement spindles, which are purposely engineered to improve strength and reduce weight. Belltech lift kits retain factory turning radius because they are engineered to maintain the original steering angle. The kits contain a ¼" thick laser-cut skid plate to protect your front differential when tackling off-road terrain. Adding to the safety and stability of the front end is a cold-formed solid steel 1 3/8" anti-sway bar, which is powder coated for longevity. In this kit, we also include durable outer tie rods, so there is no cutting involved in the front end. Rounding out the front end, we also include a one-piece differential drop down bracket that mimics the OE factory alignment adjustability, and for easy installation, and our ¼" thick high-clearance cross-members, front stainless steel braided brake line extensions, and a billet aluminum driveshaft spacer.

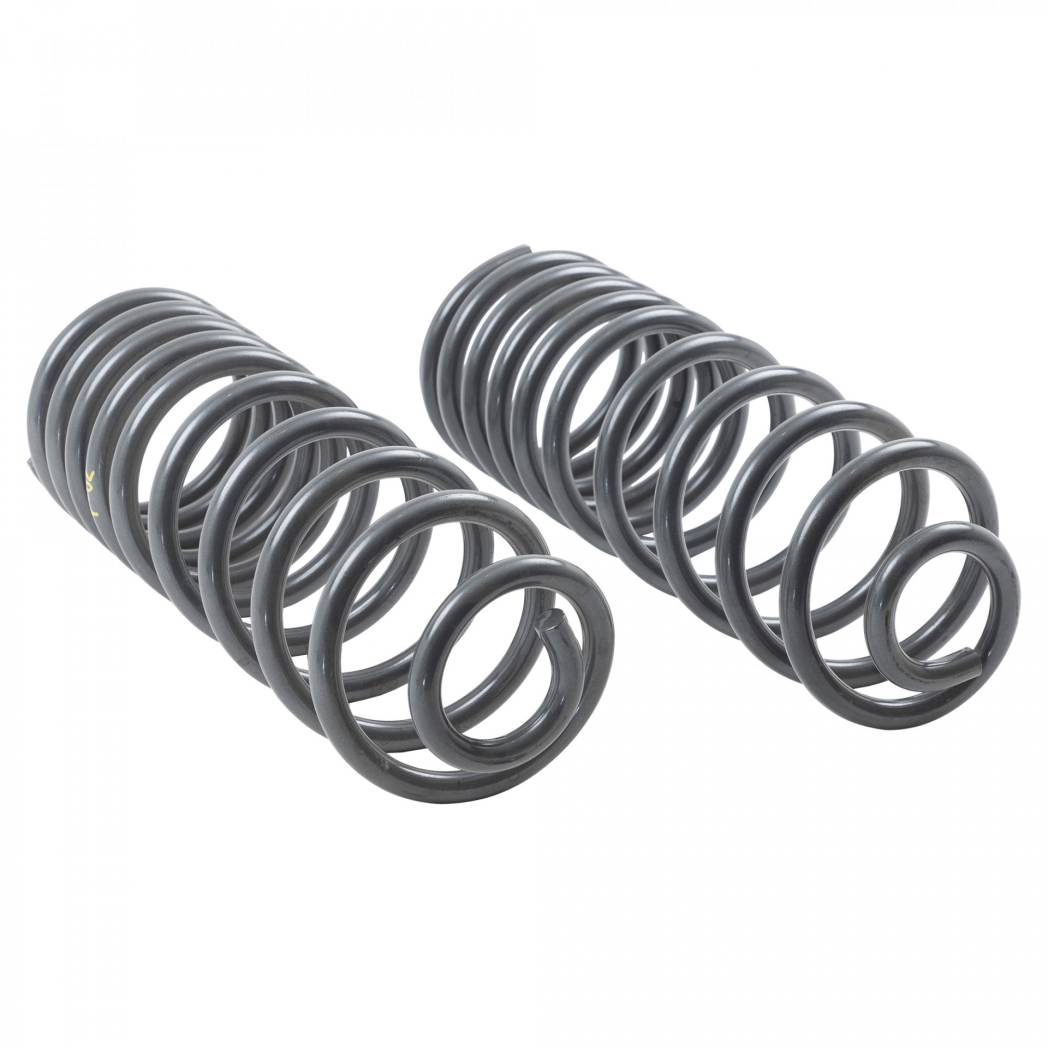

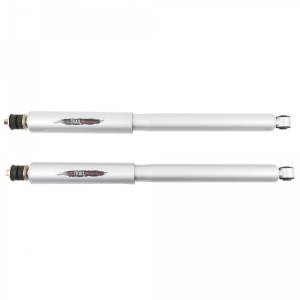

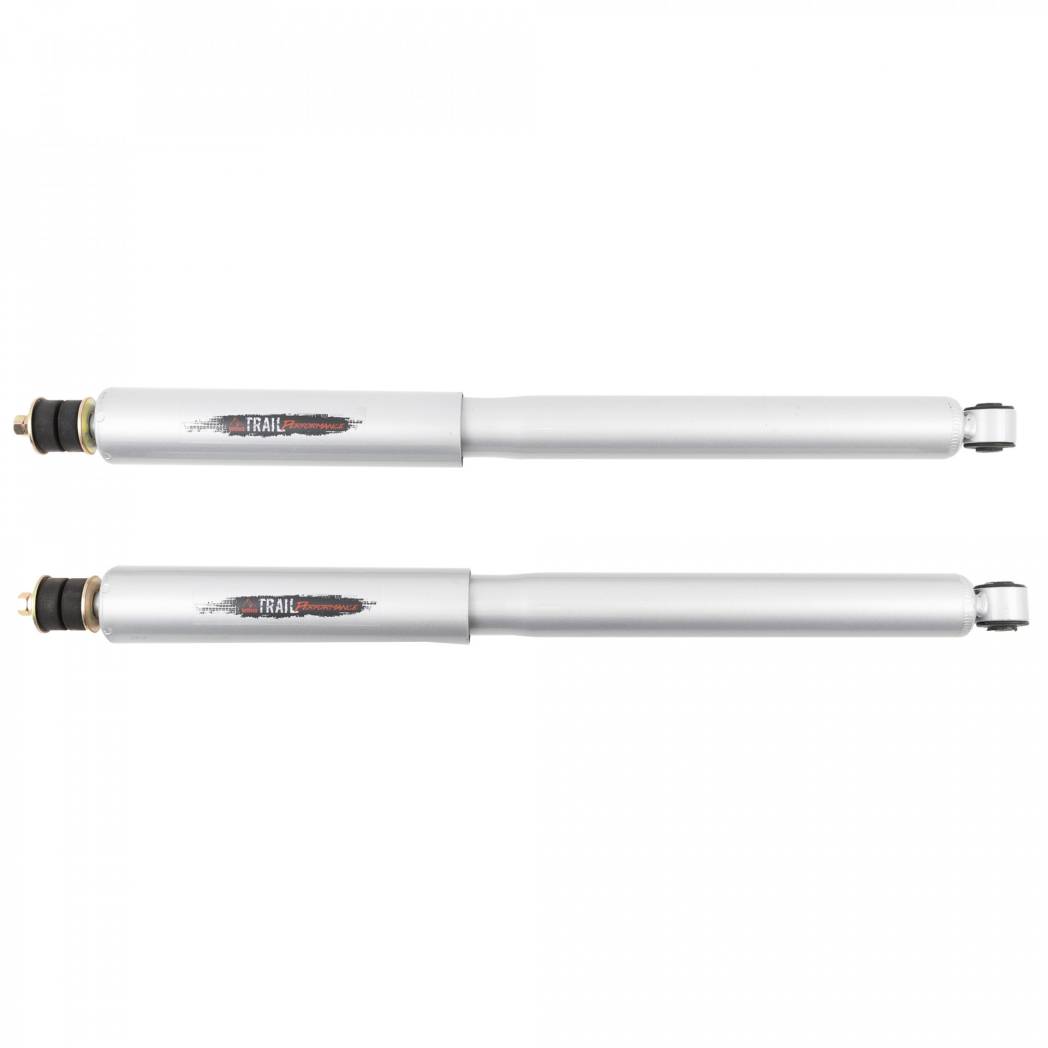

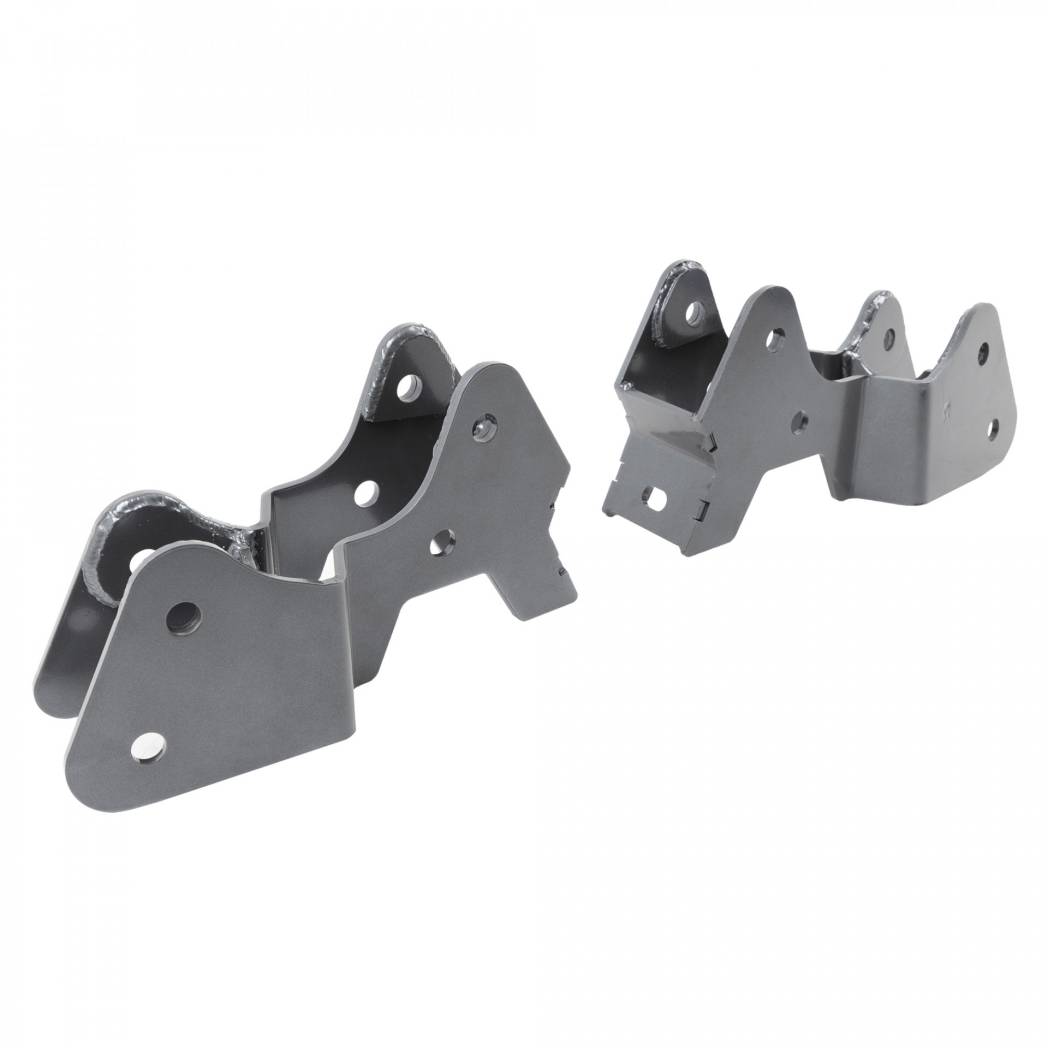

Our Belltech engineers have developed a rear control arm drop down bracket. Typically, when you lift this Ram, the rear control arms get shorter and pull the rear wheels forward, so they are not centered in the wheel well, which diminishes the wheelbase. Our rear control arm drop down bracket maintains OE "anti-squat" and all of the OE rear axle and suspension dynamics while driving, resulting in a safe-feeling, enhanced ride quality that leaves you more confident in the driver's seat. Also included for the rear are replacement progressive rate coil springs, brake line relocation brackets, a rear 1 1/8" anti-sway bar, extended length sway bar links, rear Belltech twin-tube custom-tuned Trail Performance shocks, rear bump stop extensions, and a track bar relocation bracket to center the axle preventing swaying and rolling while turning.
Our Belltech Lift Kits are an easy to install, direct bolt on solution (high-quality hardware), that requires minimal cutting and no welding. They also feature a Limited Lifetime Warranty - so you are covered, no matter what.
• Precision Designed and Engineered in the USA

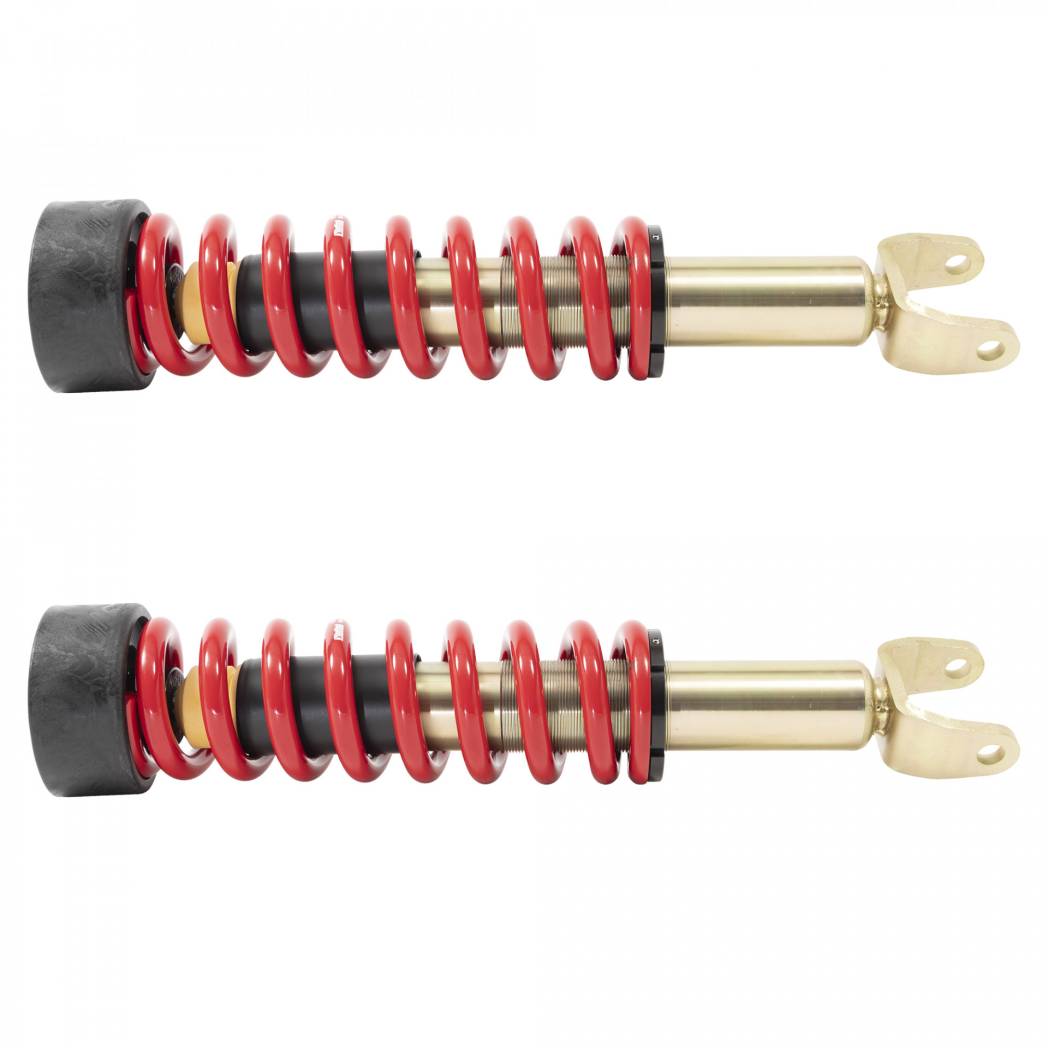

• Includes custom engineered front height adjustable Trail Performance coilovers and rear Trail Performance twin tube shocks
• Retains factory alignment specifications using factory cams
• One-piece differential drop down bracket
• Maintains OE front differential geometry and OEM CV angles
• Easy to install and align
• Replacement spindles to improve strength, reduced weight and improve durability
• Maintains factory turning radius
• Can use OE wheels and tires
• ¼" thick steel bracketry
• Easy installation - minimal cutting, no welding needed, direct bolt on kit
• Retains factory track width
Application List
2019 Ram 1500 Big Horn 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Big Horn 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Big Horn 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Big Horn 3.0l V6 EXH 4WD Extended Cab Pickup
2022 - 2023 Ram 1500 HFE 3.0l V6 EXH 4WD Crew Cab Pickup
2022 - 2023 Ram 1500 HFE 3.0l V6 EXH 4WD Extended Cab Pickup
2022 - 2023 Ram 1500 HFE 3.6l V6 ERG 4WD Crew Cab Pickup
2022 - 2023 Ram 1500 HFE 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Laramie 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Laramie 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Laramie 3.0l V6 EXH 4WD Extended Cab Pickup
2019 Ram 1500 Laramie Longhorn 3.6l V6 ERB 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2021 Ram 1500 Laramie Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2020 - 2021 Ram 1500 Laramie Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2019 Ram 1500 Limited 3.6l V6 ERB 4WD Crew Cab Pickup
2019 - 2020 Ram 1500 Limited 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Limited 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Limited 5.7l V8 EZL 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Limited 3.0l V6 EXH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2021 - 2023 Ram 1500 Limited Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Lone Star 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Lone Star 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Lone Star 3.0l V6 EXH 4WD Extended Cab Pickup
2021 Ram 1500 Longhorn 3.0l V6 EXH 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 3.6l V6 ERG 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 5.7l V8 EZH 4WD Crew Cab Pickup
2021 Ram 1500 Longhorn 5.7l V8 EZL 4WD Crew Cab Pickup
2019 Ram 1500 Rebel 3.6l V6 ERB 4WD Crew Cab Pickup
2019 Ram 1500 Rebel 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Rebel 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Rebel 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Rebel 3.0l V6 EXH 4WD Extended Cab Pickup
2020 - 2021 Ram 1500 Special Service 5.7l V8 EZL 4WD Crew Cab Pickup
2019 Ram 1500 Tradesman 3.6l V6 ERB 4WD Crew Cab Pickup
2019 Ram 1500 Tradesman 3.6l V6 ERB 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 3.6l V6 ERG 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 3.6l V6 ERG 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZH 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZH 4WD Extended Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZL 4WD Crew Cab Pickup
2019 - 2023 Ram 1500 Tradesman 5.7l V8 EZL 4WD Extended Cab Pickup
2020 - 2023 Ram 1500 Tradesman 3.0l V6 EXH 4WD Crew Cab Pickup
2020 - 2023 Ram 1500 Tradesman 3.0l V6 EXH 4WD Extended Cab Pickup
Tires & Wheels
• 35"x12.5" w/ 20x10 and -18 offset
• 35"x12.5" w/ 20x10 and -19 offset
• 35"x12.5" w/ 20x10 and -24 offset
• 35"x12.5" w/ 20x10 and -25 offset
• 35"x12.5" w/ 20x9 and +0 offset
• 35"x12.5" w/ 20x9 and +1 offset
• 35"x12.5" w/ 20x9 and -12 offset
• 35"x12.5" w/ 22x10 and -18 offset
• 35"x12.5" w/ 22x10 and -19 offset
• 35"x12.5" w/ 22x10 and -24 offset
• 35"x12.5" w/ 22x10 and -25 offset
*Trimming may be required
Details
- 153712HK
- 153712HK
- 722439004472
- Belltech
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
