FTSK1064 | Fabtech 3.5 Inch Ultimate System With Uniball UCA and Performance Shocks (2011-2019 Silverado, Sierra 2500 HD, 3500 HD 2WD/4WD)

2011-2019 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD, 3500 HD 2WD/4WD

K1064
Pricing: $2,359.68
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2011-19 CHEVY SILVERADO 2500HD/3500HD | GMC SIERRA 2500HD/3500HD 2WD/4WD

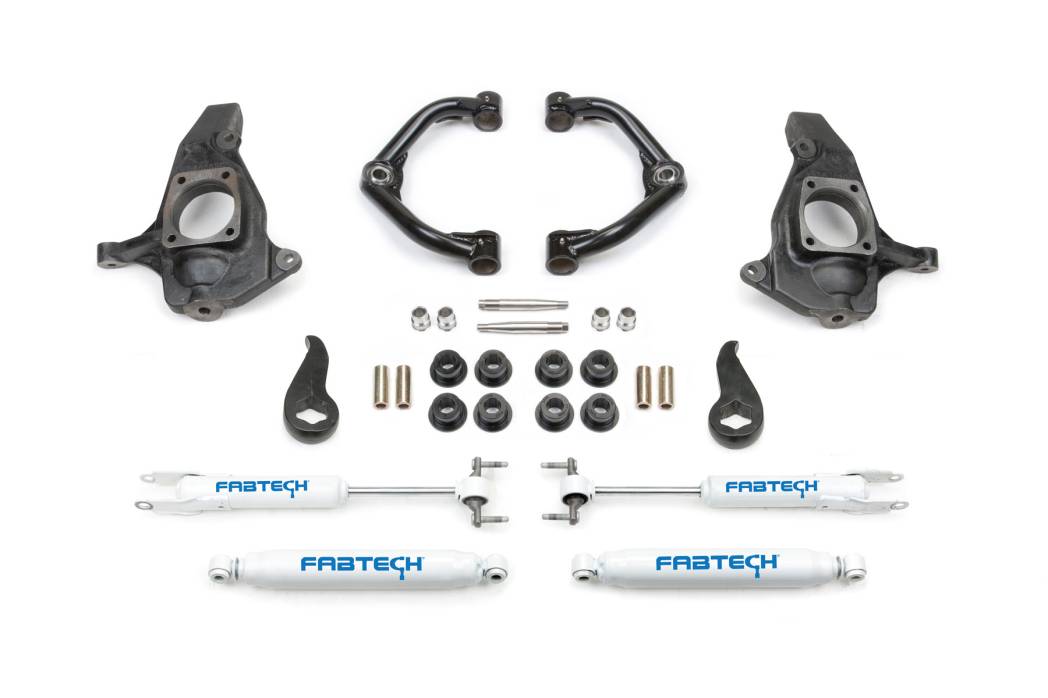

The 3.5” System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind.

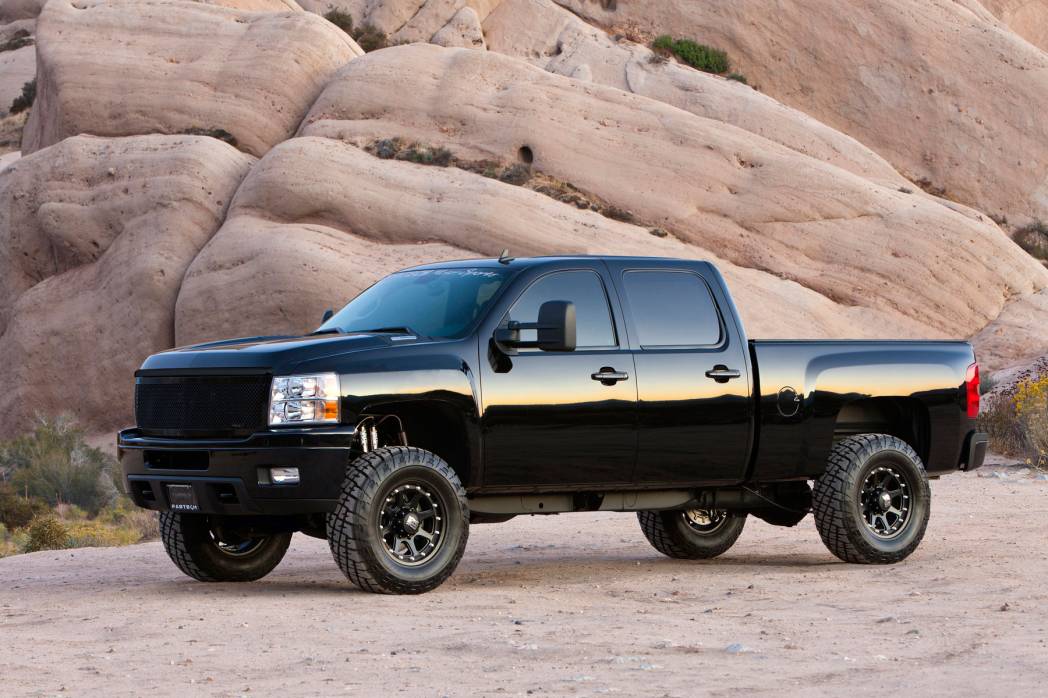

This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1″ rear block kit is available (2500HD Part # FTS21110) or (3500HD Part # FTS21111).

FEATURES

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • .250" wall DOM Bushing Barrels
  • 1" ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
  • Ductile Iron Steering Knuckles
  • Forged Torsion Bar Keys

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21130 COMPONENT BOX W/PERFORMANCE SHOCKS

FOOTNOTES

20. Will not fit standard cab models.
114. Will not fit 17” wheels.
199. Does not fit GMC AT4 or Chevy Trail Boss models.

Application List

2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD
2011-2019 GMC Sierra 2500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/fenderwell cutting
Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/fenderwell cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 143.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
