FTSK1119 | Fabtech 4 Inch Basic System With Performance Shocks (2014-2018 Silverado, Sierra 1500 with OE Cast Aluminum or Stamped Steel Control Arms)

2014-2018 Chevrolet Silverado 1500 2WD/4WD | 2014-2018 GMC Sierra 1500 | 2WD/4WD With OE Cast Aluminum or Stamped Steel Control Arms

K1119
Pricing: $2,431.43
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2014-18 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD/4WD

Fabtech’s 4″ Basic systems utilize their proven heavy duty construction and design features found in their 6″ systems but with less lift for use with 33″ tall tires. These 4″ systems feature high arched lower control arm crossmembers constructed of 1/4″ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

The Basic System includes front coilover spacers that utilize the factory Coilover shocks and rear Performance shocks.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Rear Block & U-bolt Kit

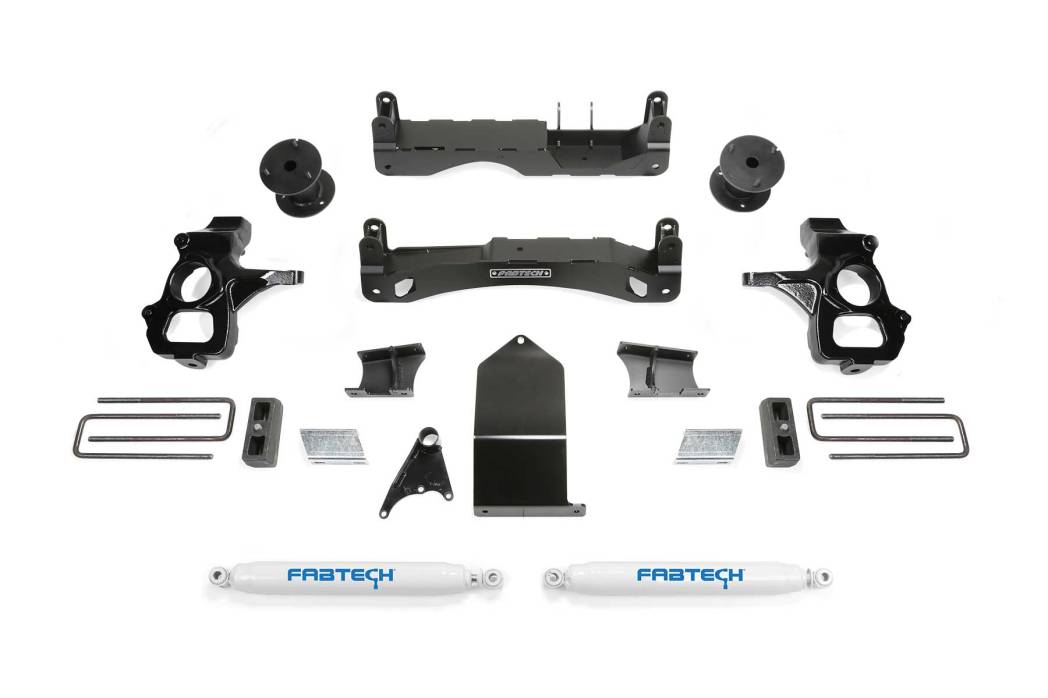

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21226 COMPONENT BOX 1
1 FTS21229 COMPONENT BOX 2
1 FTS21227 FRONT COIL SPACERS
2 FTS7333 REAR PERFORMANCE SHOCKS

FOOTNOTES

8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
127. Fits models with Factory Forged Silver Aluminum UCA or Stamped Black Steel UCA.
166. Will not fit models with factory Magneride Shocks.

Application List

2014-2018 Chevrolet Silverado 1500 2WD/4WD
2014-2018 GMC Sierra 1500 2WD/4WD
With OE Cast Aluminum or Stamped Steel Control Arms

Tires & Wheels

Tire Size – 33/12.50R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 223.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
