FTSK1119M | Fabtech 4 Inch Basic System With Stealth Shocks (2014-2018 Silverado, Sierra 1500 withh OE Cast Aluminum or Stamped Steel Control Arms)
2014-2018 Chevrolet Silverado 1500 2WD/4WD | 2014-2018 GMC Sierra 1500 | 2WD/4WD With OE Cast Aluminum or Stamped Steel Control Arms
Description
2014-18 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD/4WD
Fabtech’s 4″ Basic systems utilize their proven heavy duty construction and design features found in their 6″ systems but with less lift for use with 33″ tall tires. These 4″ systems feature high arched lower control arm crossmembers constructed of 1/4″ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Basic System includes front coilover spacers that utilize the factory Coilover shocks and rear Performance shocks.
FEATURES
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit

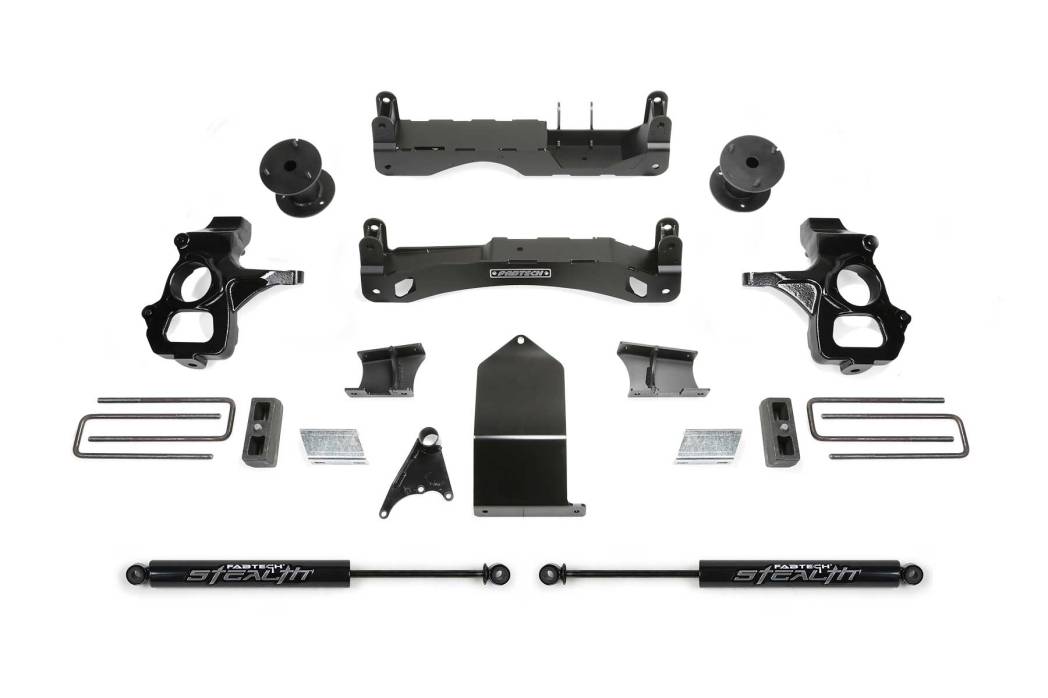

PART NUMBERS
| QTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS21226 | COMPONENT BOX 1 |
| 1 | FTS21229 | COMPONENT BOX 2 |
| 1 | FTS21227 | FRONT COIL SPACERS |
| 2 | FTS6333 | REAR STEALTH SHOCKS |
FOOTNOTES
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
127. Fits models with Factory Forged Silver Aluminum UCA or Stamped Black Steel UCA.
166. Will not fit models with factory Magneride Shocks.
Application List
2014-2018 GMC Sierra 1500 2WD/4WD
With OE Cast Aluminum or Stamped Steel Control Arms
Tires & Wheels
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K1119M
- K1119M
- 674866103924
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 223.8 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
