FTSK1121DL | Fabtech 4 Inch Basic System With Dirt Logic Shocks (2011-2019 Silverado, Sierra 2500 HD)

2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD 2WD/4WD

K1121DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,460.33
Qty:

Description

2011-19 CHEVY SILVERADO 2500HD | GMC SIERRA 2500HD 2WD/4WD

Fabtech’s 4″ Performance systems utilize their proven heavy duty construction and design features for a robust suspension upgrade. The 4″ system features high arched lower control arm crossmembers constructed of 1/4″ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the near stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Rear Block & U-bolt Kit

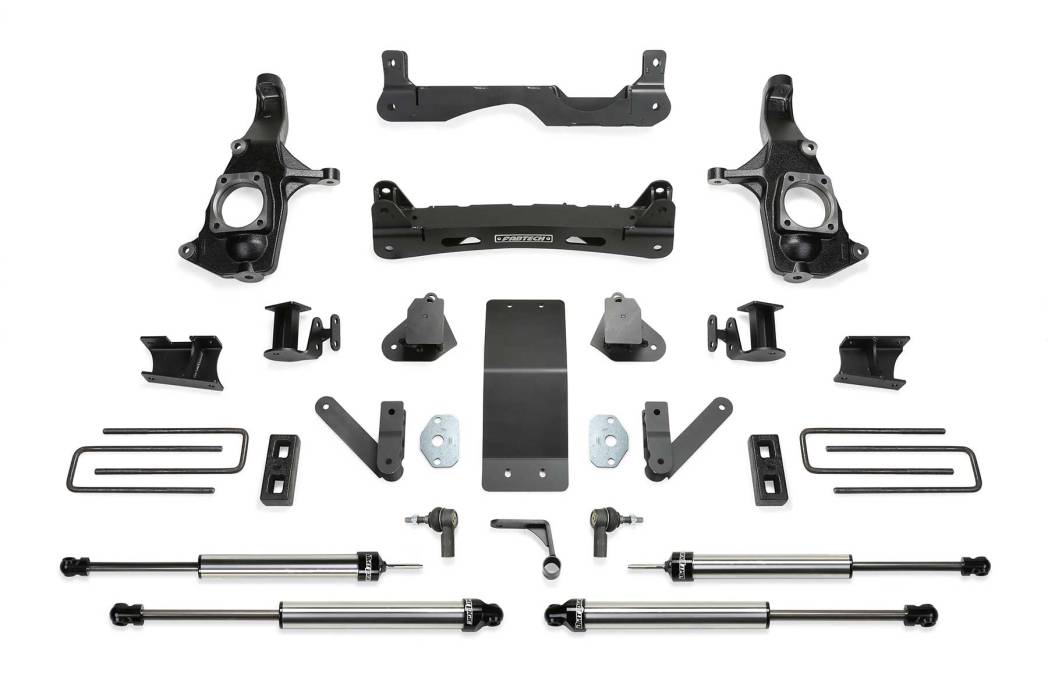

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21230 COMPONENT BOX 1
1 FTS21231 COMPONENT BOX 2
1 FTS21232 COMPONENT BOX 3
2 FTS811262 FRONT DIRT LOGIC 2.25 SHOCK
2 FTS810942 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

55. Must use aftermarket 18″ wheels or larger.
60. Fits extended and crew cab models only.
199. Does not fit GMC AT4 or Chevy Trail Boss models.

Application List

2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD
2011-2019 GMC Sierra 2500 HD 2WD/4WD

Tires & Wheels

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 280.7 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
