FTSK1126DL | Fabtech 3 Inch Budget System With Dirt Logic 2.5 (2019-2023 Silverado, Sierra 1500)

2019-2023 Chevorlet Silverado 1500 2WD/4WD | 2019-2023 GMC Sierra 1500 2WD/4WD

K1126DL
Pricing: $3,964.84
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2019-23 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD/4WD

This quality Upper Control Arm system for the Chevy Silverado 1500 & GMC Sierra 1500 4WD provides a 3" increased ride height over stock without creating suspension bind at full droop. Lift is accomplished with spacers that utilizes the factory coilover shocks for a stock ride.

The Fabtech Upper Control Arms address the geometry of the front suspension with the new ride height for proper align-ability. Heavy duty ball joints allow for extended travel to eliminate binding.

Due to the GM suspension geometry there are no differential drop brackets required for the CV axles to operate properly.

This 3" system features the legendary stainless steel Dirt Logic 2.5 Coilover shocks. These Coilovers are built of the highest quality materials and will surpass all shocks in corrosion resistance due to the stainless steel body and NitroSteel piston rod. They will provide an outstanding ride quality both on and offroad.

Rear lift comes from 1.5" blocks and u-bolts with Dirt Logic 2.25 shocks for a balanced ride. Dirt Logic shocks are the only stainless steel body shock on the market that provide maximum corrosion resistance in harshest conditions.

FEATURES

  • Increased ground clearance
  • Extended range upper ball joints provide a smooth quiet ride
  • Increased fender clearance compared to a Leveling Kit for 33” tall tires
  • Suspension can be restored to stock
  • Easy installation

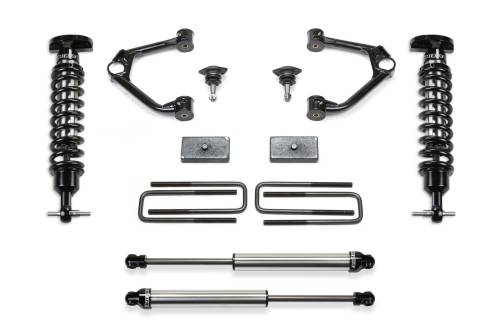

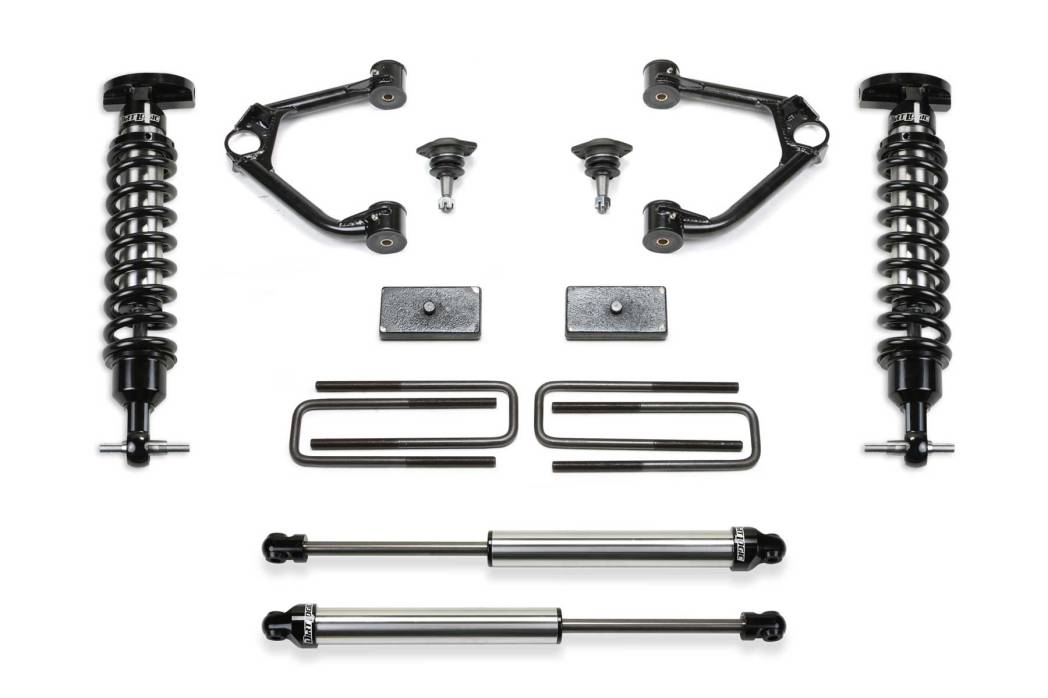

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21268 BALL JOINT UCA
1 FTS21256 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS811452 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

14. Can not use OEM wheel and tire.
17. Does not fit standard cab.
182. Fits gas models only.
197. Will not fit models equipped with adaptive ride control.
199. Does not fit GMC AT4 or Chevy Trail Boss models.
202. Does not fit 2019 Chevy Silverado LD or 2019 GMC Sierra Limited 1500 models. Use 2018 model application for these vehicles.
245. Does not fit 4 cyl. models.
262. Will not fit vehicles equipped with Super Cruise.

Application List

2019-2023 Chevrolet Silverado 1500 2WD/4WD
2019-2023 GMC Sierra 1500 2WD/4WD

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 295/65R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 117.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
