FTSK1136 | Fabtech 4 Inch Basic System With Performance Shocks (2019-2023 Silverado Trail Boss, Sierra 1500 AT4)
2019-2023 Chevorlet Silverado 1500 Trail Boss 4WD | 2019-2023 GMC Sierra 1500 AT4 4WD
Description
2019-23 CHEVY SILVERADO 1500 TRAIL BOSS | GMC SIERRA 1500 AT4 4WD

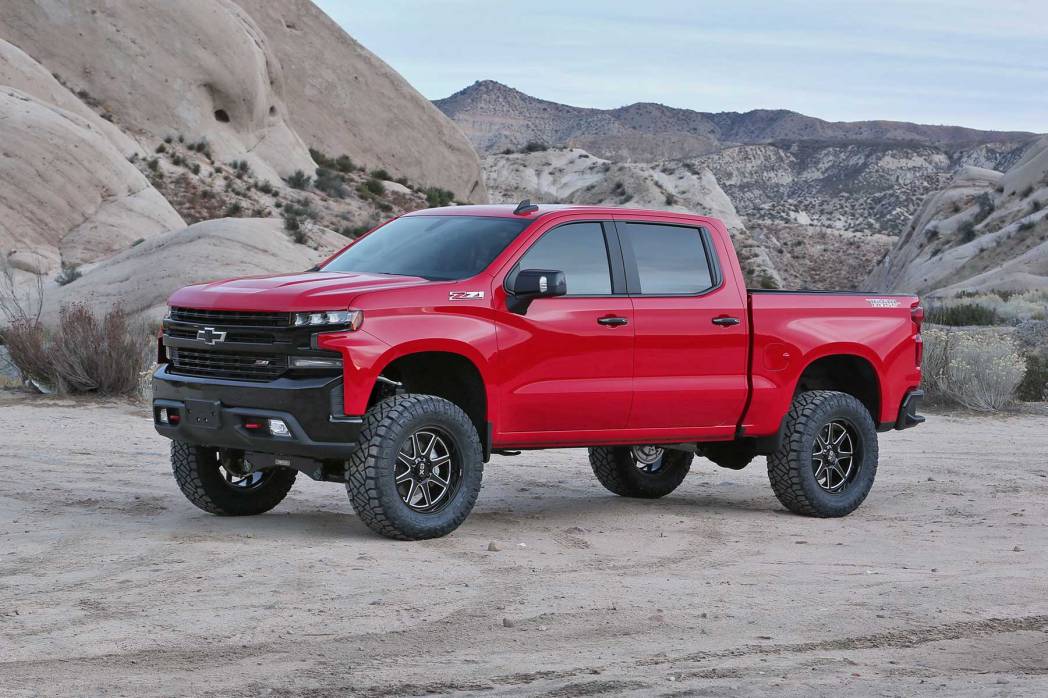

The Chevrolet Trail Boss and GMC AT4 both have a factory 2″ lift compared to other GM 1500 trucks of the same year model. Fabtech’s suspension system for these two trucks provide a 4″ lift height on top of the factory 2″ lift for clearance of 35″ tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4″ system, the truck will sit the same height as a 1500 with a 6″ suspension and 35″ tires.
Fabtech’s suspension design for the Trail Boss and AT4 provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle.
The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.
Heavy duty 1/4″ thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.
The factory Trail Boss and AT4 coilover shocks are retained and relocated from the bottom to allow for full steer while achieving 4″ of lift. Rear lift is accomplished by removing the factory 2″ block and replacing it with a 5″ block and u-bolt system.
Fabtech has addressed all aspects of the Trail Boss suspension for proper wheel travel and lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

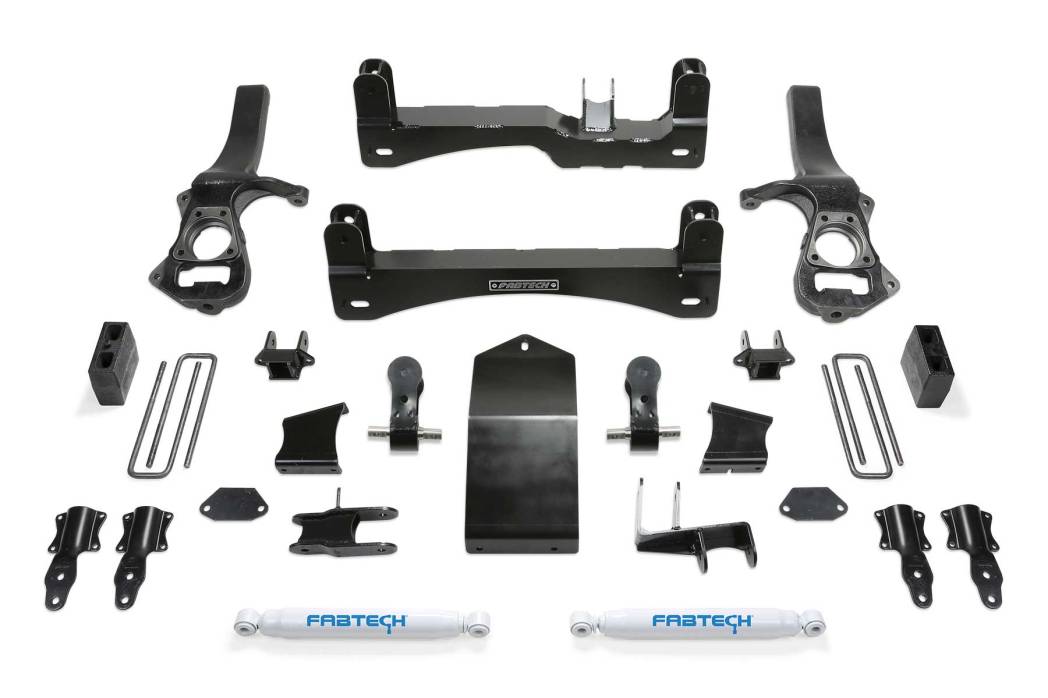

FEATURES
- CROSSMEMBERS 1/4″ thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
- STEERING KNUCKLES Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
- TIE RODS Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
- COILOVER SPACERS The factory Coilovers are relocated with heavy duty lower mounts to lift the vehicle while retaining the stock ride quality.
- SKID PLATE A heavy duty front differential Skid Plate is constructed of 1/4″ thick steel to protect the diff from offroad obstacles.
- DIFFERENTIAL MOUNTS Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
- SWAY BAR MOUNTS 1/4″ thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
- REAR BUMP STOP SPACERS Billet spacers relocate the factory closed cell bump stops to control the travel eliminating over cycling of the suspension.
- REAR LIFT BLOCKS 5″ tall steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.
- REAR U-BOLTS U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
- REAR PERFORMANCE SHOCKS Extended length twin tube shocks provide a good highway ride with the ability to handle offroad use.
PART NUMBERS
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21250 | COMPONENT BOX 1 |
1 | FTS21251 | COMPONENT BOX 2 |
1 | FTS21264 | SHOCK EXTENSION KIT |
2 | FTS7240 | REAR PERFORMANCE SHOCK |
FOOTNOTES
14. Can not use OEM wheel and tire.
79. Fits crew cab, short bed models only.
197. Will not fit models equipped with adaptive ride control.
262. Will not fit vehicles equipped with Super Cruise.
Application List
2019-2023 GMC Sierra 1500 AT4 4WD
Tires & Wheels
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
Tire Size – 295/65R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
Details
- K1136
- K1136
- 674866107816
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 250.6 lbs.
- W24.0000” x H12.0000” x L48.0000”
