FTSK1151DL | Fabtech 6 Inch Performance System With Dirt Logic 2.5 Resi (2019-2023 Silverado, Sierra 1500)

2019-2023 Chevorlet Silverado 1500 2WD | 2019-2023 GMC Sierra 1500 2WD

K1151DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $5,824.02
Qty:

Description

2019-21 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD

Fabtech’s world renowned IFS suspension design for the Chevy/GMC 1500 2WD provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle.

The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.

Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment.

The stainless steel Dirt Logic 2.5 Coilovers provide 6" of lift with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 5" Block and U-bolt system.

Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

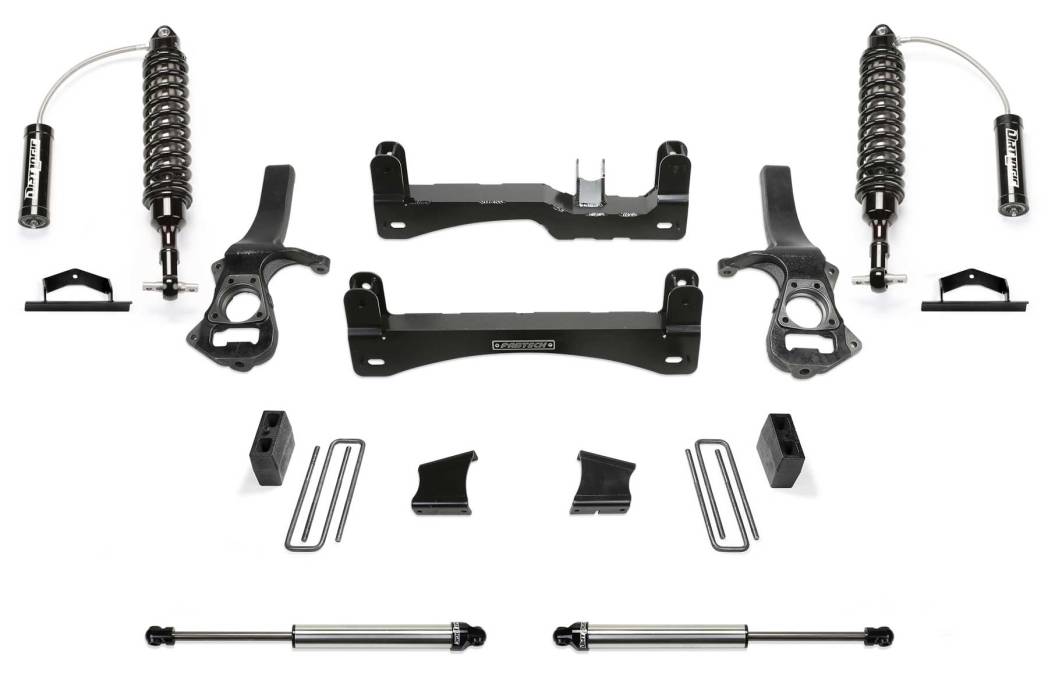

FEATURES

  • CROSSMEMBERS 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
  • STEERING KNUCKLES Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
  • TIE RODS Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
  • DIRT LOGIC 2.5 COILOVERS Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
  • SWAY BAR MOUNTS 1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
  • REAR BUMP STOP SPACERS Billet spacers relocate the factory closed cell bump stops to control the travel eliminating over cycling of the suspension.
  • REAR LIFT BLOCKS 5" tall steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.
  • REAR U-BOLTS U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
  • REAR DIRT LOGIC 2.25 SHOCKS The stainless steel body with NitroSteel® piston rod provides maximum corrosion resistance and durability. High quality componentry deliver a superior ride quality both on and offroad. Excellent damping for offroad use.

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21272 COMPONENT BOX 1
1 FTS21251 COMPONENT BOX 2
1 FTS21260 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS811462 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

14. Can not use OEM wheel and tire.
79. Fits crew cab, short bed models only.
197. Will not fit models equipped with adaptive ride control.
202. Does not fit 2019 Chevy Silverado LD or 2019 GMC Sierra Limited 1500 models. Use 2018 model application for these vehicles.
262. Will not fit vehicles equipped with Super Cruise.

Application List

2019-2023 Chevrolet Silverado 1500 2WD
2019-2023 GMC Sierra 1500 2WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
Tire Size – 295/65R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 273.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
