FTSK1153DL | Fabtech 1.5 Inch Budget System With Dirt Logic 2.5 (2019-2023 Silverado Trail Boss, Sierra 1500 AT4)

2019-2023 Chevorlet Silverado 1500 Trail Boss | 2019-2023 GMC Sierra 1500 AT4

K1153DL
Pricing: $3,964.84
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2019-23 CHEVY SILVERADO 1500 TRAIL BOSS | GMC SIERRA 1500 AT4 4WD

Designed specifically for Trail Boss and AT4 owners that want a little more ride height out of their truck for clearance of full size 33/1250R 18 inch or 20 inch tires, this lift kit is the ticket.

Fabtech&rsquos Upper Control Arm lift kit provides a 1.5" increased ride height on Trail Boss and AT4 models without creating suspension bind at full droop. These vehicles have a factory 2" lift. With the addition of this 1.5" lift kit, the vehicle will sit as high as a standard model with a 3.5" lift kit and clear a 33" tall tire.

This 1.5" lift kit features the legendary stainless steel Dirt Logic 2.5 Coilover shocks. These Coilovers are built of the highest quality materials and will surpass all shocks in corrosion resistance due to the stainless steel body and NitroSteel® piston rod. They will provide an outstanding ride quality both on and offroad.

The tubular Upper Control Arms with heavy duty ball joints address the geometry of the front suspension with the new ride height for proper alignablity. Due to the new GM suspension geometry, there are no differential drop brackets required for the CV axles to operate properly.

Rear lift comes from 1" blocks and u bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle.

The legendary Dirt Logic 2.25 rear shocks are constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

FEATURES

  • Increased ground clearance
  • Extended range upper ball joints provide a smooth quiet ride
  • Increased fender clearance for 33” tall tires
  • Suspension can be restored to stock
  • Easy installation

PART NUMBERS

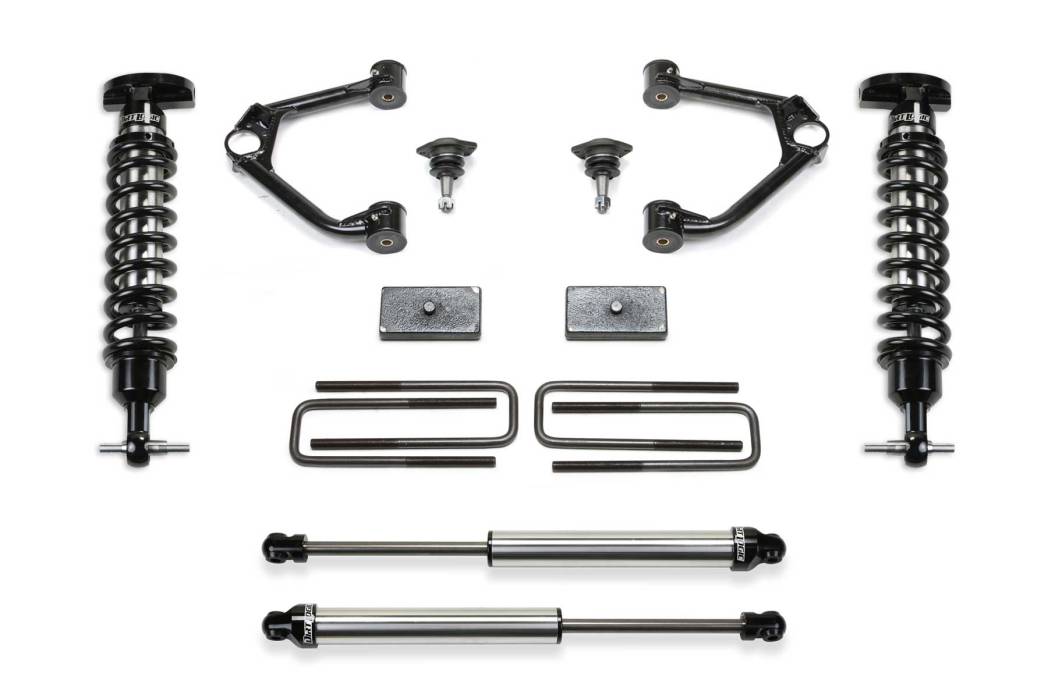

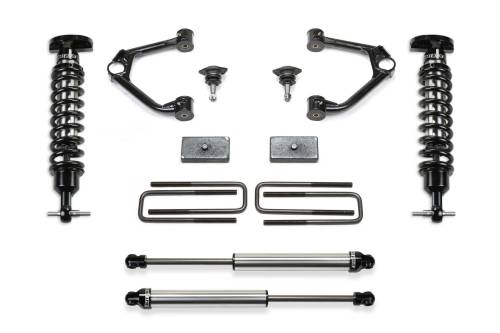

QTY PART # DESCRIPTION
1 FTS21268 BALL JOINT UCA KIT
1 FTS21256 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS811452 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

14. Can not use OEM wheel and tire.
17. Does not fit standard cab.
182. Fits gas models only.
197. Will not fit models equipped with adaptive ride control.
245. Does not fit 4 cyl. models.
262. Will not fit vehicles equipped with Super Cruise.

Application List

2019-2023 Chevrolet Silverado 1500 Trail Boss 4WD
2019-2023 GMC Sierra 1500 AT4 4WD

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 295/65R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 117.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
