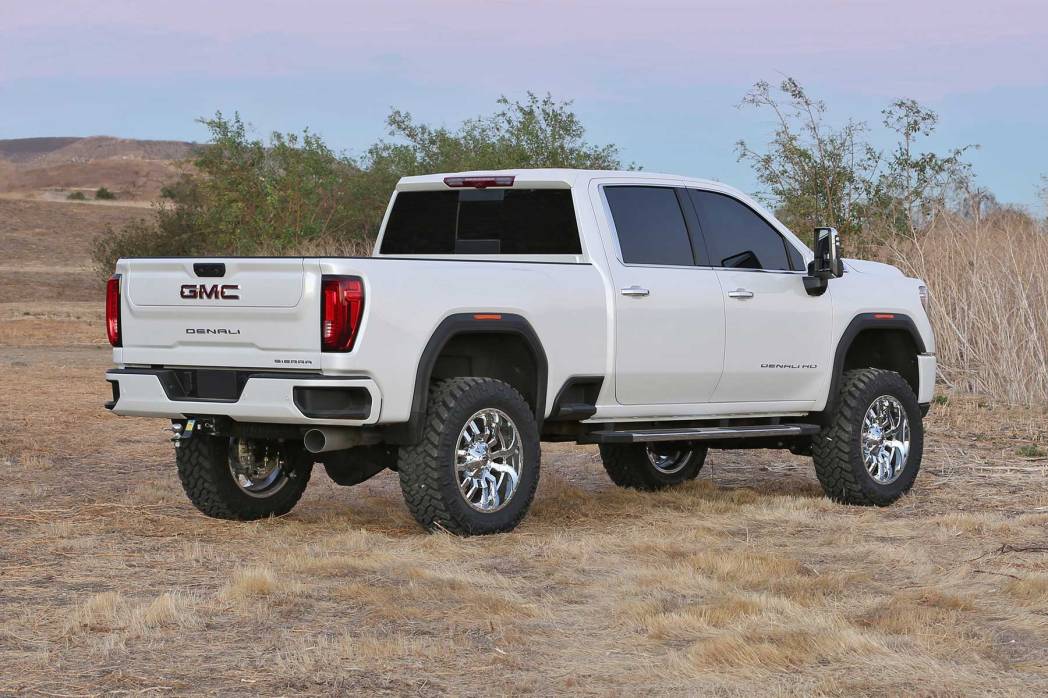

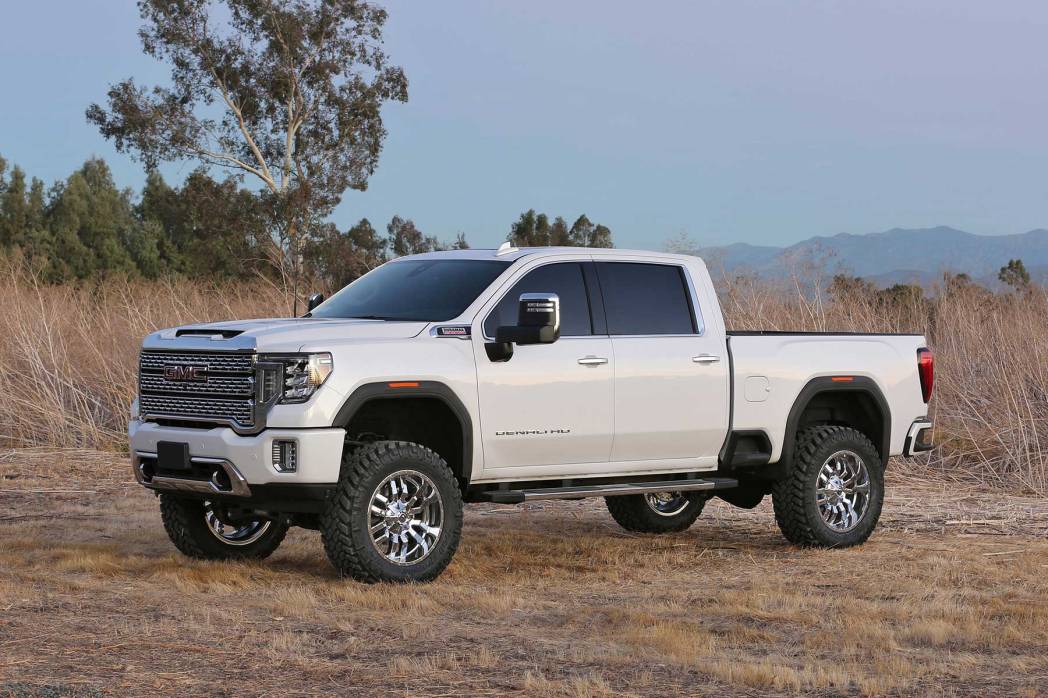

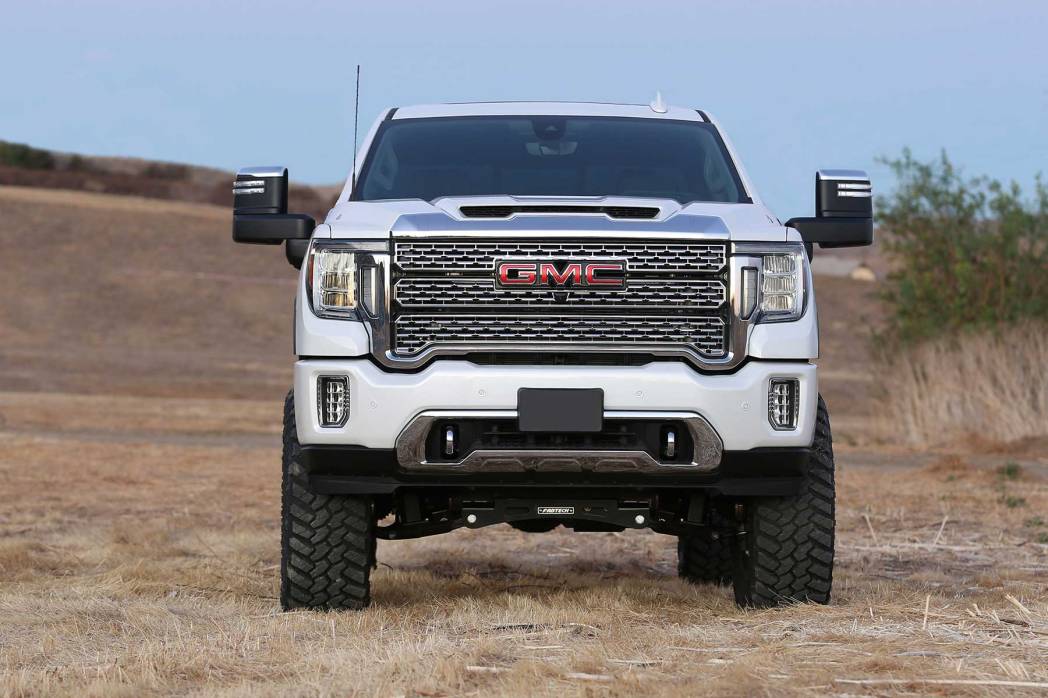

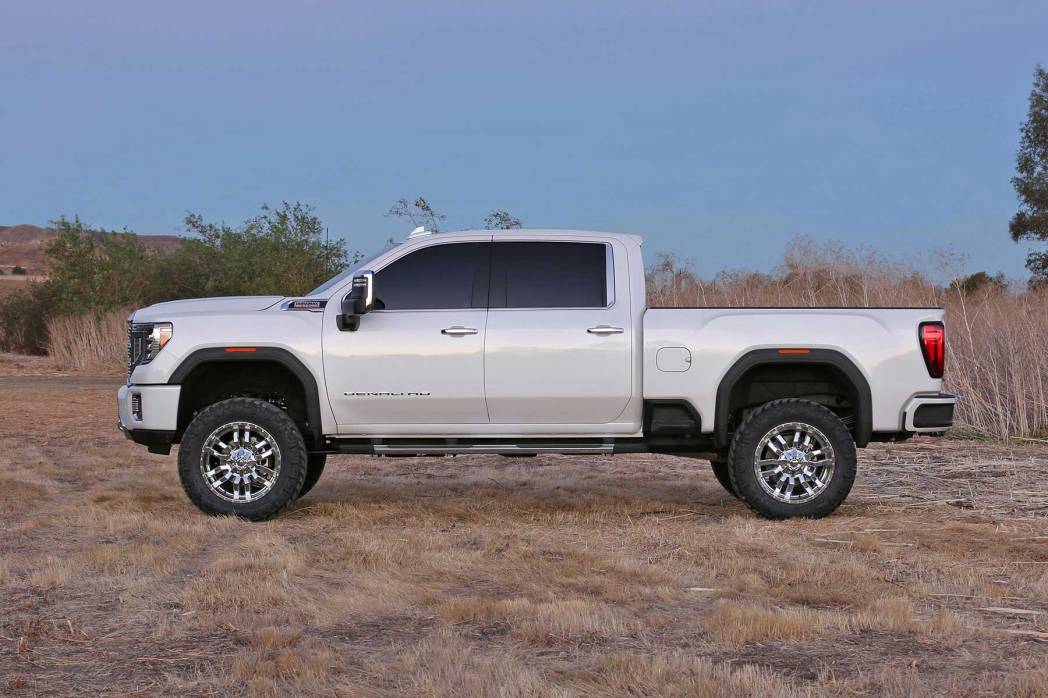

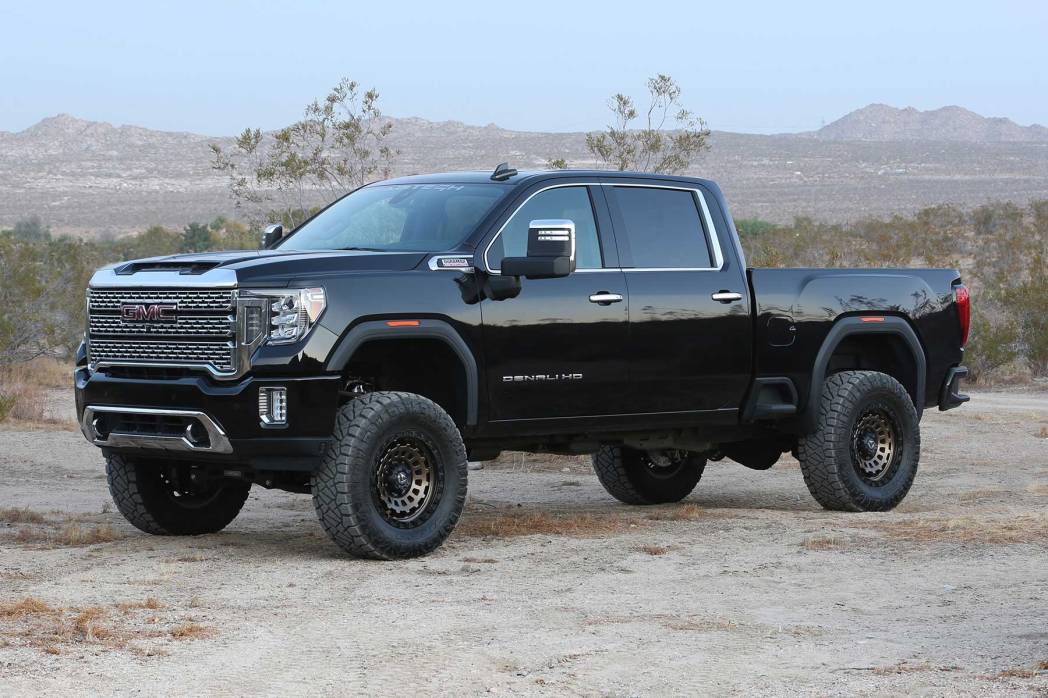

FTSK1159 | Fabtech 6 Inch RTS System With Performance Shocks (2020-2024 Silverado, Sierra 2500 HD)

2020-2024 Chevrolet Silverado 2500 HD 2WD/4WD | 2020-2024 GMC Sierra 2500 HD 2WD/4WD

K1159
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,653.98
Qty:

Description

2020-24 CHEVY SILVERADO 2500HD | GMC SIERRA 2500HD 2WD/4WD

This high quality 6" lift kit for the GMC Sierra and Chevy Silverado 2500HD has been designed to improve the offroad capability of the vehicle while providing a smooth highway ride. The Fabtech lift kit retains the factory load carrying capacity of the vehicle that is perfect for owners that use their truck for towing and hauling.

The heart of this lift kit is Fabtech’s cutting edge RTS® design. The RTS® is a bracket system that keeps the torsion bars in the factory location while providing lift. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading. It provides a very clean appearance to the vehicle.

Another important aspect of this GM 2500HD lift kit is the lower control arm crossmembers. They are arched at the bottom to provide ground clearance and have a skid plate to protect the front differential against offroad obstacles. The crossmembers and bracketry are built with 1/4" thick steel that provides strength and rigidity to the vehicle’s suspension.

The superior build quality and design of the components allows for a fast installation time with only four holes to drill and no cutting of the front diff housing.

This heavy duty GMC Sierra and Chevy Silverado 2500HD lift kit is built with the highest quality components and is designed to provide years of trouble free service while offering a great ride.

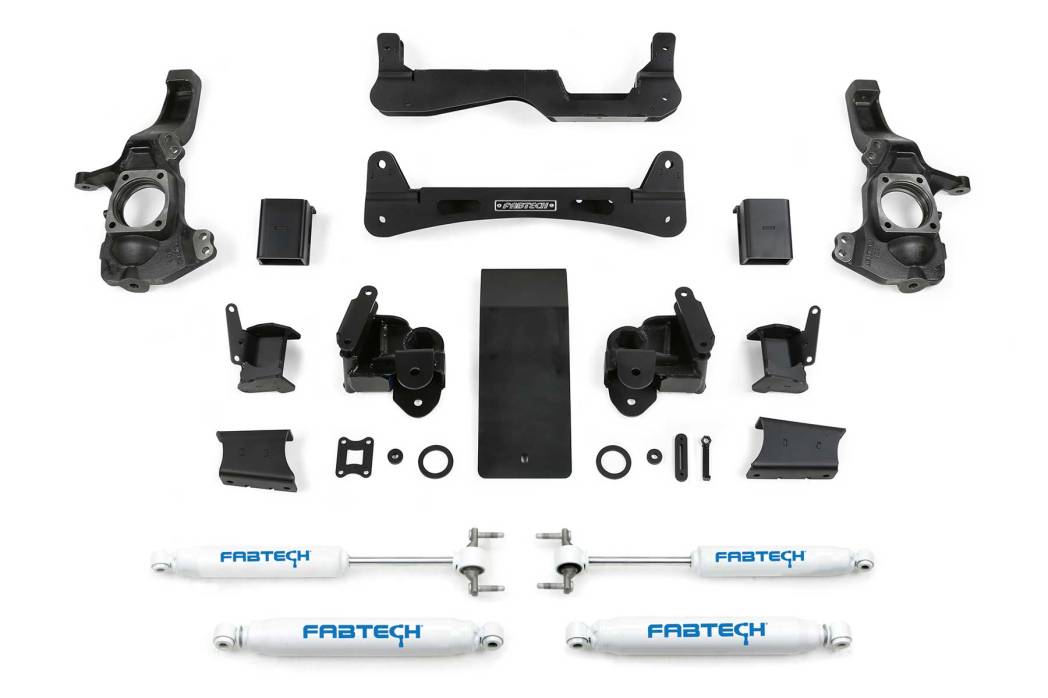

FEATURES

  • Torsion bars remain in the factory frame location for maximum ground clearance
  • RTS® Torsion bar brackets index the bars at factory setting for a smooth ride
  • Heavy duty bracketry constructed of 1/4" thick steel for additional suspension strength
  • Near factory track width helps keep tires under the fenders
  • Front & Rear bump stop brackets eliminate over cycling of suspension
  • Optional Uniball Upper Control Arms
  • CROSSMEMBERS 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
  • STEERING KNUCKLES Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
  • TIE RODS Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
  • SKID PLATE A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
  • DIFFERENTIAL MOUNTS Heavy duty Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
  • SWAY BAR MOUNTS Heavy duty mounts reposition the front sway bar for on road functionality and no bind for offroad use.
  • FRONT & REAR BUMP STOP SPACERS Steel brackets relocate the 4 front and 2 rear compression stops to align with the factory closed cell bump stops to control the travel and eliminate over cycling of the suspension.
  • REAR LIFT BLOCKS 3" tall rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity. This block height helps level the truck front to rear.
  • REAR U-BOLTS U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
  • PERFORMANCE SHOCKS Extended length twin tube shocks provide a good highway ride with the ability to handle offroad use.

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21277 COMPONENT BOX 1
1 FTS21278 COMPONENT BOX 2
1 FTS21279 COMPONENT BOX 3
2 FTS7358 FRONT PERFORMANCE SHOCKS
2 FTS7240 REAR PERFORMANCE SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
20. Does not fit standard cab models.
167. Diesel models only.



Application List

2020-2024 Chevrolet Silverado 2500 HD 2WD/4WD
2020-2024 GMC Sierra 2500 HD 2WD/4WD

Tires & Wheels

Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 37/12.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/minor trimming
Tire Size – 37/12.50R22 Wheel Size – 22×9 w/ 5 3/4in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 306.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
