BDS722F | BDS Suspension 5.5" Performance Suspension With Fox 2.5 Remote Reservoir Coil-overs Chevy/GMC Colorado/Canyon 4WD | 2015-2022

BDS raises the bar once again with new 5.5" Performance Coilover Systems for the Chevy Colorado and GMC Canyon. Designed around the tried-and-true steering knuckle and crossmember technology, these kits provide enough lift fit 33" tires while maintaining the OE suspension geometry for smooth handling and ride characteristics.

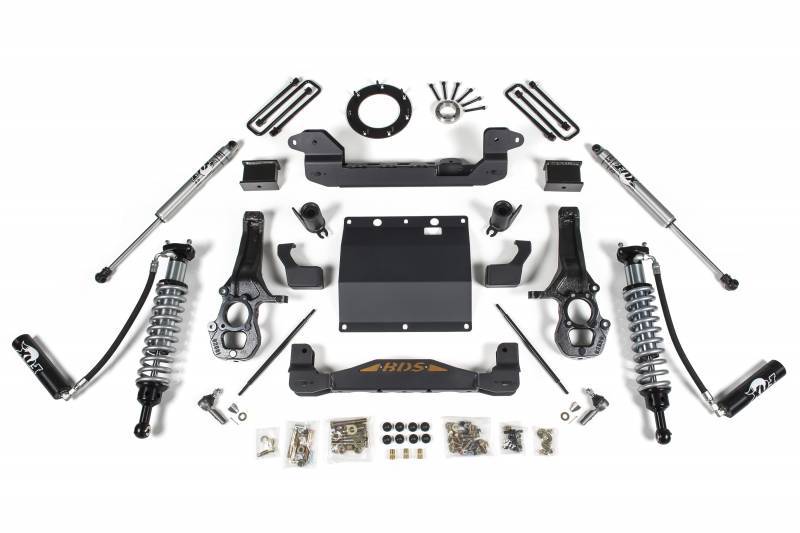

This system uses a pair of heavy duty 1/4" steel high clearance crossmembers to reposition the lower control arms and work in unison with the massive ductile cast iron extended steering knuckles. The crossmembers utilize the factory alignment eccentrics and tie together with a full-width skid plate. The skid plate protects vital front end components for offroad use and ties the crossmembers together for an extremely rigid sub-frame. The front differential is relocated to keep CV axle angles at a minimum and function properly with the supplied transfer case indexing ring. This allows for the use of the factory front driveline once lifted. Front bump stop extension and sway bar links are included as well as new heavy duty Moog tie rod ends to properly set alignment without trimming the inner tie rods.



In place of the factory struts this system uses precision tuned FOX 2.5 remote reservoir coil-overs to achieve superior on and offroad performance. The included Fox 2.5 coil-overs can also be upgraded to the DSC (dual speed compression) adjuster equipped coil-overs for the ability to perfectly fine tune the ride quality and handling.



Finishing off this new 5.5" coilover system, a 4" rear block/u-bolt kit sets the new ride height and levels the stance. Specially tuned FOX 2.0 series IFP gas shocks are supplied to compliment the front coilovers and improve the Colorado/Canyon's performance on or offroad.

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned coilover designed to performance and provide correct ride height right out of box. From valving to spring rate, preload and hose length these FOX coilovers are designed to take all the guess work out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir improve damper capability across any terrain. Up our vehicle's performance with FOX 2.5 R/R Coilovers.

305/55R20 w/20 x 9 and 5.25" back spacing

305/70R17 w/17x9 or 18x9 and 4.5" back spacing

295/70R17 w/17x8 or 18x8 and 4.5" back spacing

*Trimming may be required*

8 hours

4

1. Inner fender trimming is required.

2. Minor welding is required.

3. Electronic assisted power steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.

4. Actual ride height on C/O kits is closer to 6'' of lift.

5. Stock 17" & 18" wheels can not be reinstalled with the lift kit. Aftermarket 20" wheels with maximum of 5.25" Backspacing are recommended - certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See end of inst. sheet for details on installation.

6. Will not fit ZR2 Models.

7. Will fit diesel models.
