BDS722FS | BDS Suspension 5.5 Inch Lift Kit For Chevrolet Colorado / GMC Canyon 4WD (2015-2022) | Rear Fox 2.0 Performance Series Shocks
5.5 Inch Lift Kit For Chevrolet Colorado / GMC Canyon 4WD (2015-2022) | Rear Fox 2.0 Performance Series Shocks
Description
Take your Chevy Colorado and GMC Canyon 4WD truck to the next level with a 5.5-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 295 / 70 with 17 x 8 and 4.5 in. Backspace
- 305 / 70 with 17 x 9 and 4.5 in. Backspace
- 305 / 55 with 20 x 9 and 5.25 in. Backspace
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Inner fender trimming is required.
- Minor welding is required.
- The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
- The actual ride height on C/O kits is closer to 6'' of lift.
- Stock 17" & 18" wheels can not be reinstalled with the lift kit. Aftermarket 20" wheels with a maximum of 5.25" Backspacing are recommended - certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See end of inst. sheet for details on installation.
- Will not fit ZR2 Models.
- Will fit diesel models.
Installation
Est. Install Time :
8 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Welding EquipmentSpecification
- Front Lift Method : Cross-Member
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 5.5"
- Rear Lift Height : 4"
Product Series
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2015 | Chevrolet | Colorado | ALL | ALL | ALL | ALL | ALL |
2015 | GMC | Canyon | ALL | ALL | ALL | ALL | ALL |
2016 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2016 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2016 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2016 | Chevrolet | Colorado | ALL | ALL | GAS | ALL | ALL |
2016 | GMC | Canyon | SLE | ALL | DIESEL | ALL | ALL |
2016 | GMC | Canyon | SLT | ALL | DIESEL | ALL | ALL |
2016 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2017 | Chevrolet | Colorado | Base | ALL | GAS | ALL | ALL |
2017 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2017 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2017 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2017 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2017 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2017 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2017 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2017 | GMC | Canyon | SLE | ALL | DIESEL | ALL | ALL |
2017 | GMC | Canyon | SLT | ALL | DIESEL | ALL | ALL |
2017 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2018 | Chevrolet | Colorado | Base | ALL | GAS | ALL | ALL |
2018 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2018 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2018 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2018 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2018 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2018 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2018 | GMC | Canyon | All Terrain | ALL | DIESEL | ALL | ALL |
2018 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2018 | GMC | Canyon | SLE | ALL | DIESEL | ALL | ALL |
2018 | GMC | Canyon | SLT | ALL | DIESEL | ALL | ALL |
2018 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2019 | Chevrolet | Colorado | Base | ALL | GAS | ALL | ALL |
2019 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2019 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2019 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2019 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2019 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2019 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2019 | GMC | Canyon | All Terrain | ALL | DIESEL | ALL | ALL |
2019 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2019 | GMC | Canyon | SLE | ALL | DIESEL | ALL | ALL |
2019 | GMC | Canyon | SLT | ALL | DIESEL | ALL | ALL |
2019 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2020 | Chevrolet | Colorado | Base | ALL | GAS | ALL | ALL |
2020 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2020 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2020 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2020 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2020 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2020 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2020 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2020 | GMC | Canyon | SLE | ALL | DIESEL | ALL | ALL |
2020 | GMC | Canyon | SLT | ALL | DIESEL | ALL | ALL |
2020 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2021 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2021 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2021 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2021 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2021 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2021 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2021 | Chevrolet | Colorado | Z71 LT | ALL | GAS | ALL | ALL |
2021 | GMC | Canyon | AT4 | ALL | DIESEL | ALL | ALL |
2021 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2021 | GMC | Canyon | Elevation | ALL | DIESEL | ALL | ALL |
2021 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |
2022 | Chevrolet | Colorado | LT | ALL | DIESEL | ALL | ALL |
2022 | Chevrolet | Colorado | LT | ALL | GAS | ALL | ALL |
2022 | Chevrolet | Colorado | WT | ALL | DIESEL | ALL | ALL |
2022 | Chevrolet | Colorado | WT | ALL | GAS | ALL | ALL |
2022 | Chevrolet | Colorado | Z71 | ALL | DIESEL | ALL | ALL |
2022 | Chevrolet | Colorado | Z71 | ALL | GAS | ALL | ALL |
2022 | Chevrolet | Colorado | Z71 LT | ALL | GAS | ALL | ALL |
2022 | GMC | Canyon | AT4 | ALL | DIESEL | ALL | ALL |
2022 | GMC | Canyon | Denali | ALL | DIESEL | ALL | ALL |
2022 | GMC | Canyon | Elevation | ALL | DIESEL | ALL | ALL |
2022 | GMC | Canyon | ALL | ALL | GAS | ALL | ALL |

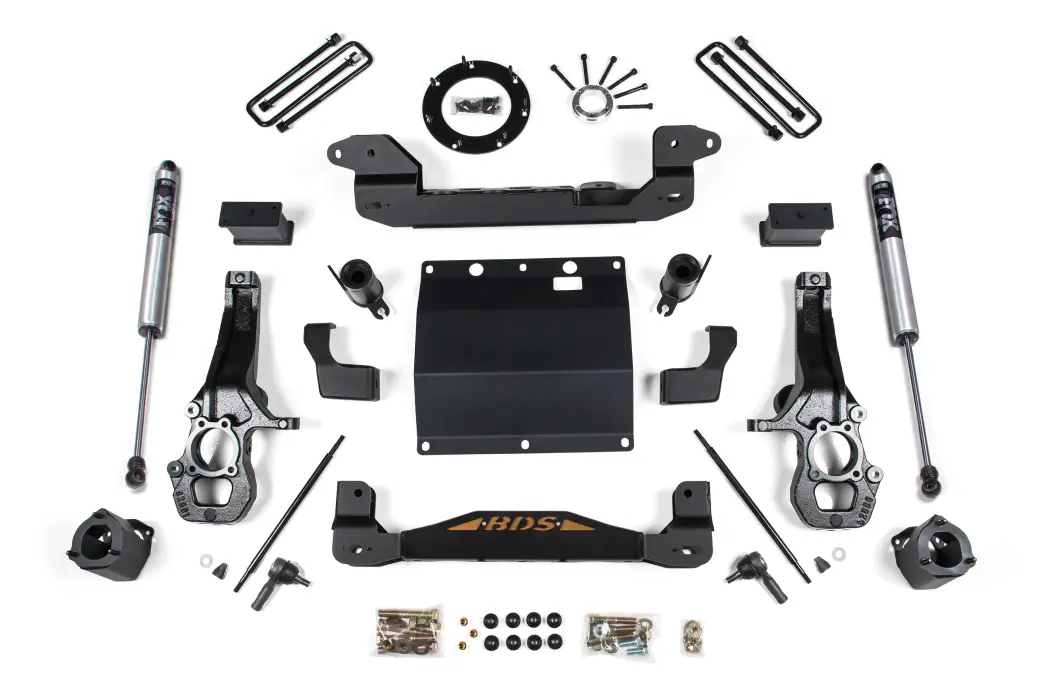

Component List
1 BDS021670 2015-2022 Colorado Front Box Kit 1of4
1 BDS021671 2015-2022 Colorado Front Box Kit 2of4
1 BDS021672 2015-2022 Colorado Front Box Kit 3of4
1 BDS021673 2015-2022 Colorado Front Box Kit 4of4
1 BDS021674 2015-2022 Colorado 5.5" Strut Spacer Box Kit
2 FOX98224758 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
Tires & Wheels
305 / 70 with 17 x 9 and 4.5 in. Backspace
305 / 55 with 20 x 9 and 5.25 in. Backspace
Details
- BDS722FS
- BDS722FS
- 840416420463
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
