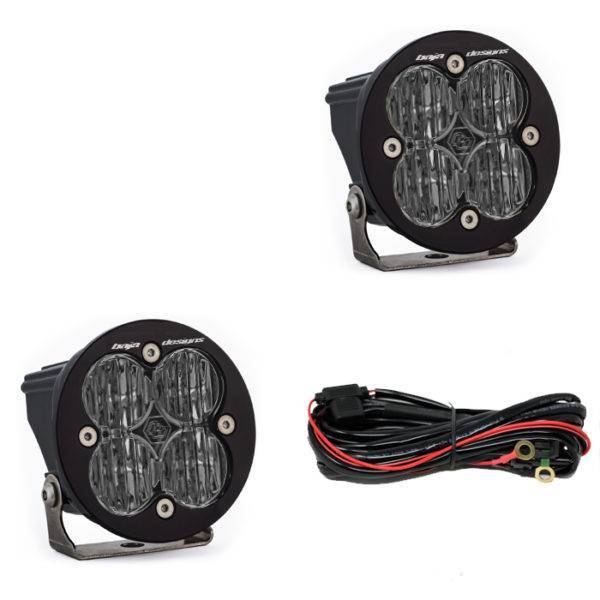

247805 | Baja Designs Squadron-R SAE Wide Cornering White LED Fog Lights | Pair

Squadron-R SAE Wide Cornering White LED Fog Lights | Universal - Check Specification Before Ordering

247805
Pricing: $409.98
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Brand new for Baja Designs is an SAE -certified light. This light is based on the Squadron series. While there are many visual characteristics that stayed the same, the pattern and circuitry are optimized in order to give our SAE light a street-legal punch! We’ve put this light through rigorous tests so you can be assured that it’s a serious upgrade to LED, HID, and Halogen factory fog lights. USPTO Reg No. 5,766,659

BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in-comfort lighting. (Lighting Zones 1 & 2).

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

 Product Type  Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
 Description  Round; Wide Cornering; Clear; Pair
 Beam Pattern  Wide Cornering
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  2
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED
 Lighting Quantity  4
 Brightness (Lumens)  2,480
 Wattage (W)  22
 Amperage Rating (A)  1.6
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  Yes
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Street Legal  Yes
 DOT Approved  Yes
 Standards/Compliance (SAE)  SAE Standard J583
 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

  • 247805
  • 247805
  • 819314029832
  • Baja Designs
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.5 lbs.
  • W7.9000” x H4.6000” x L8.1000”
  • Free Ground Shipping | Exclusions Apply*
