50779 | McGaughys 7 to 9 Inch Lift Kit (S/S Silver) 2014-2018 GM Truck 1500 4WD STAMPED STEEL or ALUMINUM factory control arms only

7″-9″ Premium Lift kit | For vehicles with STAMPED STEEL or ALUMINUM factory control arms only
Lift kit comes powder-coated silver w/ stainless steel inserts for front crossmember

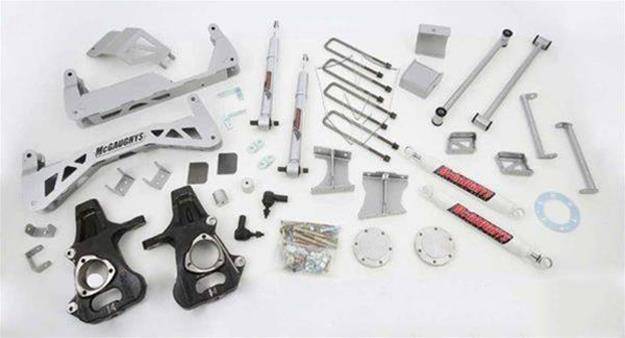

Kit Includes:
(2) Spindles
(1) Front Crossmember
(1) Rear Crossmember
(2) Compression Struts
(1) Skid Plate
(2) Lift Blocks w/ U-bolts & Hardware
(2) Differential Drop Brackets
(2) CV Axle Spacers
(2) Lower A-Frame Support Rods
(4) Compression Strut Brackets
(2) Sway Bar Drops
(2) Sway Bar Extenders
(1) Wheel Spacer
(2) Re-Enforcement Plates
(2) Tie-rods
(2) Front Brake Line Brackets
(2) Rear Shocks
(2) Adjustable Lift Struts

Fitment
2014-2018 GM 1500 Trucks 4wd Models

Vehicle must have STAMPED STEEL or ALUMINUM factory control arms | If factory arms are cast steel, then this lift kit will not fit

Optional Add-Ons
MS51009 illet Face Plate for Front Crossmember (BLACK) (sold separately)
MS51011 Billet Face Plate for Front Crossmember (RAW) (sold separately)
MS50785 Upper Control Arms (sold separately)
MS51052 Billet Ball Joint Caps for Upgraded Upper Control Arms (sold separately)
MS50716 Traction Bars (sold separately) *for reg cabs only*
MS50718 Traction Bars (sold separately) *for ext/quad cabs only*
MS51321 Billet Face Plates for Traction Bars (REG CABS ONLY) (BLACK) sold separately)
MS51323 Billet Face Plates for Traction Bars (REG CABS ONLY) (RAW) (sold separately)
MS51301 Billet Face Plates for Traction Bars (EXT / QUAD CABS ONLY) (BLACK) (sold separately)
MS51303 Billet Face Plates for Traction Bars (EXT / QUAD CABS ONLY) (RAW) (sold separately)
MS51401 Billet Face Plates for Boxed Compression Struts (BLACK) (sold separately)
MS51403 Billet Face Plates for Boxed Compression Struts (RAW) (sold separately)
MS50005 Rear Add-a-Leaf (sold separately)

Replacement Parts
MS3507 Front Strut
MS2950 Rear Shock
MS50704 Outer Tie Rod End
MS50715 Boxed Compression Struts
MS50770 Rear Lift Blocks & U-Bolts

Notes:
If you are adjusting this kit to 8″ or 9″, you will need the Rear Add-a-Leaf #50005 (sold separately) to bring the rear of vehicle up

If running this kit at the 9″ position, we highly recommend using Upper Control Arms #50785 (sold separately) to help with bump stop clearance issues

Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc… You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.

Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
