52359 | McGaughys 7 to 9 Inch Lift Kit, 2011-2019 GM Truck 3500 4WD GAS & DIESEL

7″-9″ Premium Lift kit Lift kit comes powder-coated gloss black
Comes with stainless steel inserts for front crossmember

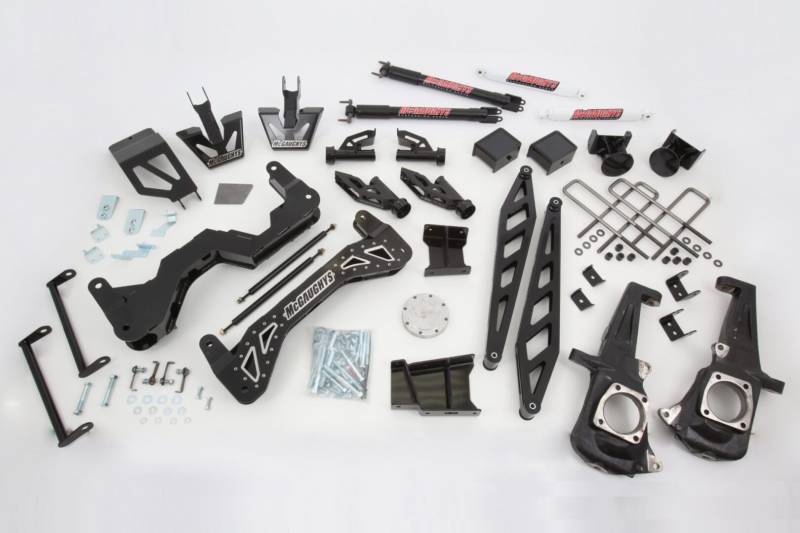

Kit Includes:
(2) Spindles
(2) Lift Blocks w/ U-bolts & Hardware
(1) Front Crossmember
(1) Rear Crossmember
(1) Skid Plate
(2) Sway Bar End Links
(2) Compression Struts
(2) Lower A-frame Support Rods
(2) Torsion Bar Drops
(2) Differential Drop
(1) CV Axle Spacer
(1) Weld-in Filler Plate
(4) Front & Rear Bump Stops
(1) Brake Cable Extender
(1) Rear Brake Bracket Extender
(2) Rear Compression Strut Retainer Brackets
(2) Front Brake Line Bracket Extenders
(2) Upper Shock Mounts w/ Hardware
(2) Front Shocks
(2) Rear Shocks

Note: Kit can be adjusted up to 9″.
Must add Torsion Keys #52310 (sold separately)
Upper Control Arms #52314 (sold separately)
Lift Shims #52361 (sold separately)

Fitment
2011-2019 GM 3500 Trucks 4WD Models
Gas & Diesel Models

Optional Add-Ons
MS52314 Upper Control Arms (not included with kit)
MS52310 Torsion Keys (not included with kit)
MS52361 Rear Lift Shims (not included with kit)
MS52318 Traction Bars (not included with kit)
MS1102 Upgraded Front Reservoir Shocks (not included with kit)
MS1103 Upgraded Rear Reservoir Shocks (not included with kit)
MS52357 Front Shock Reservoir Mounts (not included with kit)
MS51021 (Black) Billet Face Plate for Front Crossmember (not included with kit)
MS51023 (Raw) Billet Face Plate for Front Crossmember (not included with kit)
MS51411 (Black) Billet Face Plates for Upgraded Compression Struts (not included with kit)
MS51413 (Raw) Billet Face Plates for Upgraded Compression Struts (not included with kit)
MS51321 (Black) Billet Face Plates for Traction Bars (not included with kit)
MS51323 (Raw) Billet Face Plates for Traction Bars (not included with kit)
MS51052 Billet Ball Joint Cap for Upper Control Arms (not included with kit)

Replacement Parts
MS2600 Front Shock
MS3250 Rear Shock
MS52360 Sway Bar End Link

PLEASE NOTE:
If you are installing the optional rear shims and rear traction bars, you may need to get longer u-bolts than what come with the kit. This is most common on 3500 trucks when installing all the rear shims along with rear traction bars.

This kit can be adjusted to 8″ or 9″. You will need Torsion Keys #52310 (sold separately), to raise up the front. You will also need the Rear Lift Shim Kit #52361 (sold separately), to raise the rear up.

If running this kit at the 9″ position, we highly recommend using Upper Control Arms #52314 (sold separately) to help with bump stop clearance issues.

Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc… You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.

Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
