52371 | McGaughys 10 to 12 Inch Lift Kit 2011-2019 GM Truck 2500/3500 RAW 2WD/4WD
2011-2019 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD, 3500 HD 2WD/4WD
52371
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing:
$10,402.68
Description
10″-12″ Premium Lift kit Lift kit comes RAW, bare metal, NO powder-coating
Comes with billet face plate for front crossmember, along with front and rear chrome reservoir shocks

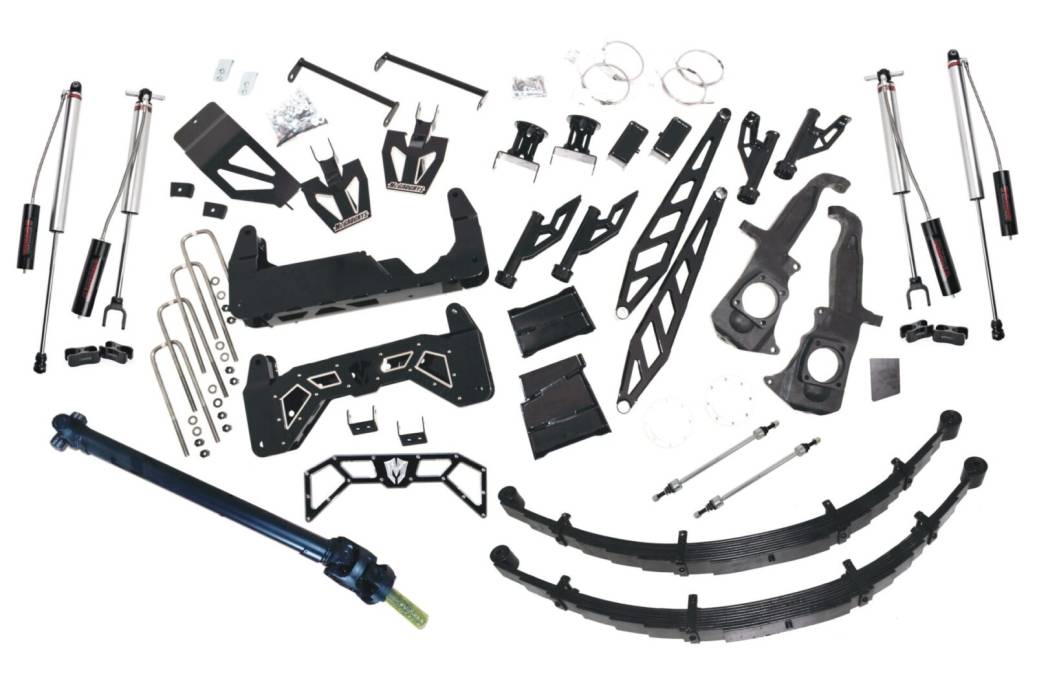

Kit Includes:
(2) Spindles
(2) Leaf Spring Packs
(2) Lift Blocks w/ U-bolts & Hardware
(1) Front Crossmember w/Billet Face Plate
(1) Rear Crossmember
(1) Front Drive Line
(1) Skid Plate
(2) Sway Bar End Links
(2) Compression Struts
(2) Lower A-frame Support Rods
(2) Torsion Bar Drops
(2) Differential Drop Brackets
(1) CV Axle Spacer
(1) Weld-in Filler Plate
(4) Front & Rear Bump Stops
(1) Brake Cable Extender
(1) Rear Brake Bracket Extender
(2) Rear Compression Strut Retainer Brackets
(2) Front Brake Line Bracket Extenders
(2) Upper Shock Mounts w/ Hardware
(2) Front Reservoir Shocks
(2) Rear Reservoir Shocks
***KIT COMES RAW***
Fitment
2011-2019 GM 2500 / 3500 Trucks 2wd & 4wd Models
Gas & Diesel Models
Optional Add-Ons
MS52314 Upper Control Arms (not included with kit)
MS52310 Torsion Keys (not included with kit)
MS52361 Rear Lift Shims (not included with kit)
MS52318 Traction Bars (not included with kit)
MS1102 Upgraded Front Reservoir Shocks (not included with kit)
MS1103 Upgraded Rear Reservoir Shocks (not included with kit)
MS52357 Front Shock Reservoir Mounts (not included with kit)
MS52315 Upgraded Compression Struts (not included with kit)
MS51411 Billet Face Plates for Upgraded Compression Struts (Black) (not included with kit)
MS51413 Billet Face Plates for Upgraded Compression Struts (Raw) (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)
MS51052 Billet Ball Joint Cap for Upper Control Arms (not included with kit)
Replacement Parts
MS1104 Front Shocks
MS1105 Rear Shocks
Notes:
This kit can be adjusted to 11″ or 12″. You will need Torsion Keys #52310 (sold separately), to raise up the front. You will also need the Rear Lift Shim Kit #52361 (sold separately), to raise the rear up.
If running this kit at the 12″ position, we highly recommend using Upper Control Arms #52314 (sold separately) to help with bump stop clearance issues.
Comes with billet face plate for front crossmember, along with front and rear chrome reservoir shocks
Kit Includes:
(2) Spindles
(2) Leaf Spring Packs
(2) Lift Blocks w/ U-bolts & Hardware
(1) Front Crossmember w/Billet Face Plate
(1) Rear Crossmember
(1) Front Drive Line
(1) Skid Plate
(2) Sway Bar End Links
(2) Compression Struts
(2) Lower A-frame Support Rods
(2) Torsion Bar Drops
(2) Differential Drop Brackets
(1) CV Axle Spacer
(1) Weld-in Filler Plate
(4) Front & Rear Bump Stops
(1) Brake Cable Extender
(1) Rear Brake Bracket Extender
(2) Rear Compression Strut Retainer Brackets
(2) Front Brake Line Bracket Extenders
(2) Upper Shock Mounts w/ Hardware
(2) Front Reservoir Shocks
(2) Rear Reservoir Shocks
***KIT COMES RAW***
Fitment
2011-2019 GM 2500 / 3500 Trucks 2wd & 4wd Models
Gas & Diesel Models
Optional Add-Ons
MS52314 Upper Control Arms (not included with kit)
MS52310 Torsion Keys (not included with kit)
MS52361 Rear Lift Shims (not included with kit)
MS52318 Traction Bars (not included with kit)
MS1102 Upgraded Front Reservoir Shocks (not included with kit)
MS1103 Upgraded Rear Reservoir Shocks (not included with kit)
MS52357 Front Shock Reservoir Mounts (not included with kit)
MS52315 Upgraded Compression Struts (not included with kit)
MS51411 Billet Face Plates for Upgraded Compression Struts (Black) (not included with kit)
MS51413 Billet Face Plates for Upgraded Compression Struts (Raw) (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)
MS51052 Billet Ball Joint Cap for Upper Control Arms (not included with kit)
Replacement Parts
MS1104 Front Shocks
MS1105 Rear Shocks
Notes:
This kit can be adjusted to 11″ or 12″. You will need Torsion Keys #52310 (sold separately), to raise up the front. You will also need the Rear Lift Shim Kit #52361 (sold separately), to raise the rear up.
If running this kit at the 12″ position, we highly recommend using Upper Control Arms #52314 (sold separately) to help with bump stop clearance issues.
Application List
2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD
2011-2019 GMC Sierra 2500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD
2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD
2011-2019 GMC Sierra 2500 HD 2WD/4WD
2011-2019 GMC Sierra 3500 HD 2WD/4WD
Details
- 52371
- 52371
- McGaughys Suspension Parts
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- $200.00
- Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
