57283 | MCGaughys 8 Inch Lift Kit Phase 3 2011-2016 Ford F250 4WD

2011-2016 Ford F250 Super Duty 4WD

57283
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $6,232.01
Qty:

Description

8″ Premium Lift Kit Lift kit comes powder coated silver

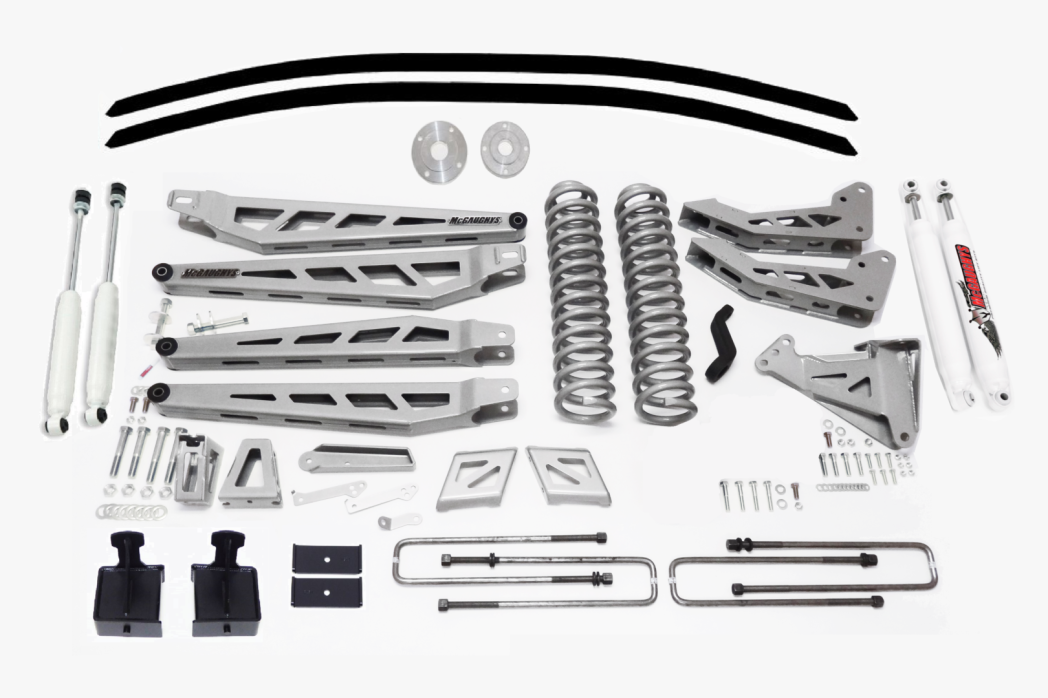

Kit Includes:
(2) 4-Link Drop Down Brackets
(2) Upper Boxed 4-Link Bars
(2) Lower Boxed 4-Link Bars
(2) U-bolt Retainers
(2) Lift Blocks w/ U-bolts & Hardware
(2) Sway Bar Drops
(1) Track Bar Drop Bracket
(2) Front Bump Stops
(1) Steering Shock Drop
(1) Drop Pitman Arm
(2) Front Brake Line Brackets
(1) Rear Brake Line Bracket
(2) Coil Springs
(2) Front Shocks
(2) Rear Shocks

Fitment
2011-2016 Ford F250 Trucks 4wd Models Only

Optional Add-Ons
MS57230 Dual Steering Stabilizer Bracket (not included with kit)
MS1222 Shock for Dual Steering Stabilizer (not included with kit)
MS57218 Traction Bar Kit (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)

Replacement Parts
MS2755 Front Shock
MS3400 Rear Shock

Notes:
If your vehicle is equipped with an upper contact over-load leaf spring, then you will need to source longer u-bolts OR order the corresponding F350 lift kit. As the F350 kits have the longer u-bolts.

If your vehicle is equiped with a two-piece drine line, then you will also need our carrier bearing shim kit (#57203). Sold separately.

Application List

2011-2016 Ford F250 Super Duty 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L44.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
