57291 | McGaughys 6 Lift Kit 2017-2022 Ford F250 4WD

2017-2022 Ford F250 Super Duty 4WD

57291
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $4,051.85
Qty:

Description

6″ Premium Lift Kit Lift kit comes powder coated silver

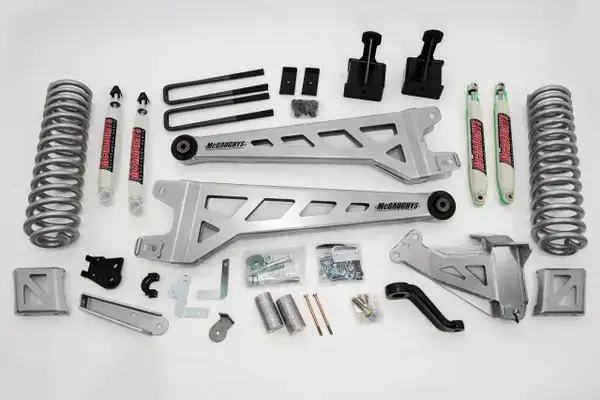

Kit Includes:
(2) Radius Arms
(2) U-bolt Retainers
(2) Lift Blocks w/ U-bolts & Hardware
(2) Sway Bar Drops
(1) Track Bar Drop Bracket
(2) Front Bump Stops
(1) Steering Shock Drop
(1) Drop Pitman Arm
(2) Front Brake Line Brackets
(1) Rear Brake Line Bracket
(2) Coil Springs
(2) Front Shocks
(2) Rear Shocks

Fitment
2017-2022 Ford F250 Trucks 4wd Models Only

Optional Add-Ons
MS57230 Dual Steering Stabilizer Bracket (not included with kit)
MS1222 Shock for Dual Steering Stabilizer (not included with kit)
MS51101 Billet Face Plates for Radius Arms (Black) (not included with kit)
MS51103 Billet Face Plates for Radius Arms (Raw) (not included with kit)
MS57295 Traction Bar Kit (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)

Replacement Parts
MS2655 Front Shock
MS3250 Rear Shock

Notes:
Gas model trucks will require exhaust modification

If your vehicle is equipped with an upper contact over-load leaf spring, then you will need to source longer u-bolts OR order the corresponding F350 lift kit. As the F350 kits have the longer u-bolts.

If your vehicle is equiped with a two-piece drine line, then you will also need our carrier bearing shim kit (#57203). Sold separately.

Application List

2017-2022 Ford F250 Super Duty 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L44.0000”
