57292 | McGaughys 8 Inch Lift Kit S/S Black 2017-2022 Ford F250 4WD w/Flange Style Rear Driveline

8″ Premium Lift Kit Lift kit comes powder coated black
Comes with billet face plates for front radius arms (powder coated black w/machined edge)

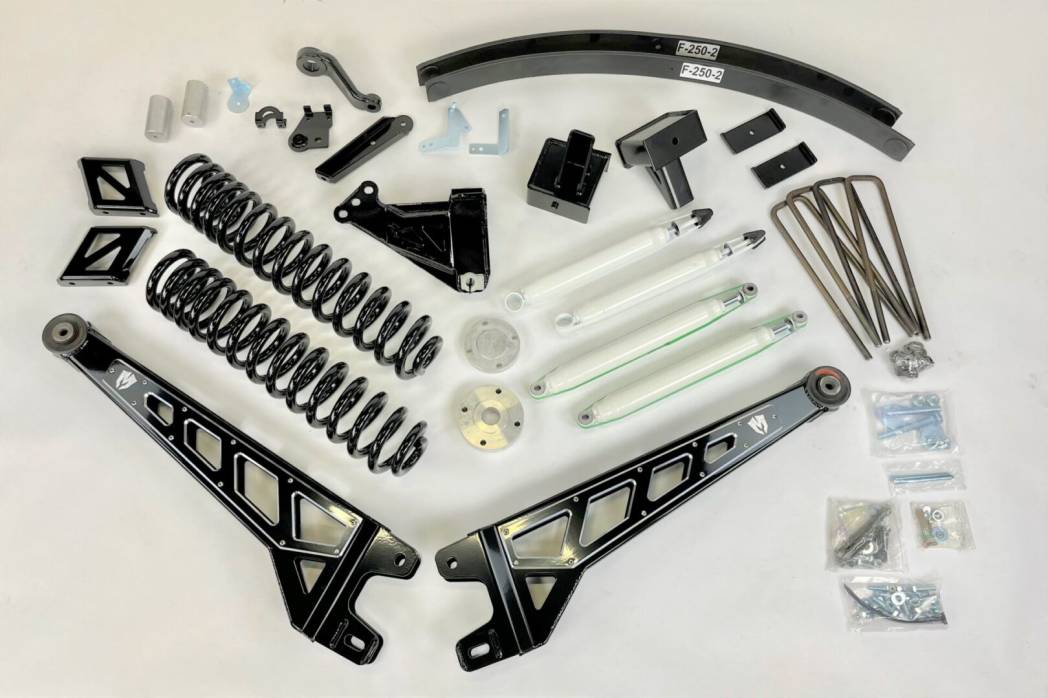

Kit Includes:
(2) Radius Arms
(2) U-bolt Retainers
(2) Lift Blocks w/ U-bolts & Hardware
(2) Sway Bar Drops
(1) Track Bar Drop Bracket
(2) Track Bar Drop Cams
(2) Front Bump Stop Spacers
(1) Driver Side Bump Stop Bracket
(1) Steering Shock Drop
(2) Steering Flip Mount Brackets
(1) Drop Pitman Arm,
(2) Front Brake Line Brackets
(2) Coil Springs
(2) Front Shocks
(2) Rear Shocks
(1) Front Drive Line Spacer
(1) Rear Drive Line Spacer
(2) Overload Leaf Springs, & Hardware

Fitment
2017-2022 Ford F250 Trucks 4wd Models Only
Vehicle must have flanged style rear drive line. Drive line spacer will not fit on trucks with u-joint style rear drive line. U-joint ends will need to be replaced or modified.

Optional Add-Ons
MS57230 Dual Steering Stabilizer Bracket (not included with kit)
MS1222 Shock for Dual Steering Stabilizer (not included with kit)
MS57295 Traction Bar Kit (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)

Replacement Parts
MS2755 Front Shock
MS3400 Rear Shock

Notes:
Vehicle must have flanged style rear drive line. Drive line spacer will not fit on trucks with u-joint style rear drive line. U-joint ends will need to be replaced or modified.

Gas model trucks will require exhaust modification

If your vehicle is equipped with an upper contact over-load leaf spring, then you will need to source longer u-bolts OR order the corresponding F350 lift kit. As the F350 kits have the longer u-bolts.

If your vehicle is equiped with a two-piece drine line, then you will also need our carrier bearing shim kit (#57203). Sold separately.
