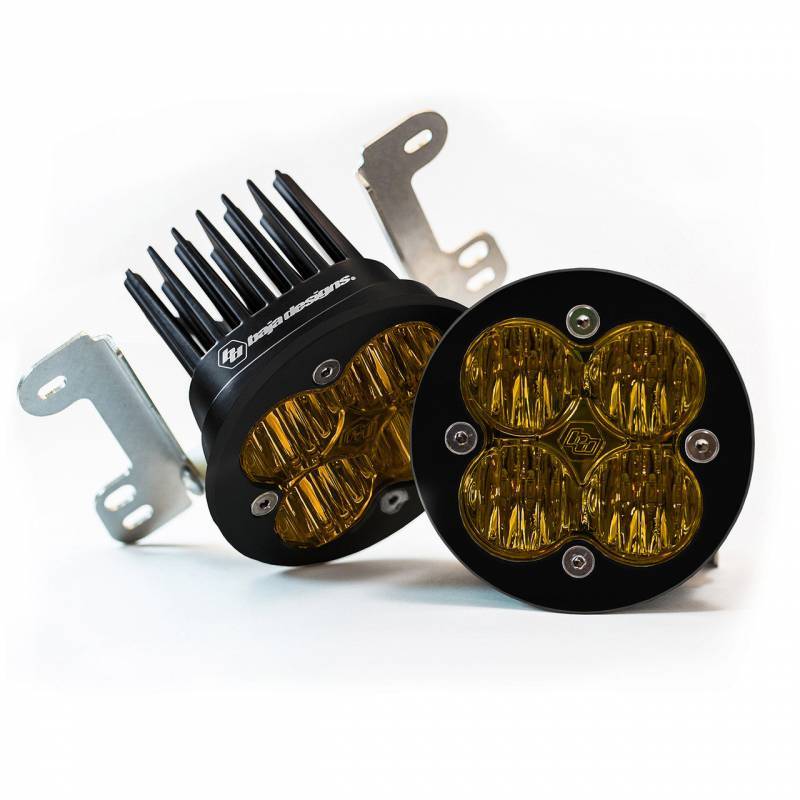

447721 | Baja Designs Squadron-R SAE Pocket Kit Amber Fog Lights For Jeep Wrangler JK | 2007-2018

Squadron-R SAE Pocket Kit Amber Fog Lights | 2007-2018 | Jeep Wrangler JK

447721
Pricing: $594.85
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Based off of the Squadron series an SAE-certified light. While there are many visual characteristics that stayed the same, the pattern and circuitry are optimized in order to give our SAE lights paired with our selective yellow wide cornering lens a street-legal punch! We have packed 2,480 lumens, utilizing four powerful LEDs into a compact package that fits almost anywhere you need the light.

Extensively tested at the factory, and proven out on the trials, the Squadron is a serious upgrade from most LED, HID, and Halogen factory fog lights found on most road vehicles today. We also know the weather does not stop you, as the Squadron SAE models have our patented MoistureBlock technology that makes them waterproof to the elements.

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 247815

 Product Type  Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
 Description  Round; Wide Cornering; Amber; Pair
 Beam Pattern  Wide Cornering
 Lens Color  Amber
 Lighting Modes  Beam
 Light Quantity  2
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED
 Lighting Quantity  4/td>
 Brightness (Lumens)  2,480
 Wattage (W)  22
 Amperage Rating (A)  1.6
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  Yes
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

 Street Legal  Yes
 DOT Approved  Yes
 Standards/Compliance (SAE)  SAE Standard J583
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

2007-2018 Jeep Wrangler JK
