447679 | Baja Designs Squadron-R SAE Pocket Kit Amber Fog Lights For Toyota RAV4/Highlander | 2014-2021

Squadron-R SAE Pocket Kit Amber Fog Lights | 2014-2021 | Toyota: RAV4, Highlander

447679
Pricing: $597.63
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your Toyota Rav 4 or Highlander lighting to the next level with Baja Design’s Squadron-R SAE Fog Pocket Light Kit. This SAE-certified light is similar to our legendary off-road light with the pattern and circuitry optimized to give them a street-legal punch! It emits 2,480 super-bright lumens via four Cree LEDs in the Wide Cornering pattern.

BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 247815

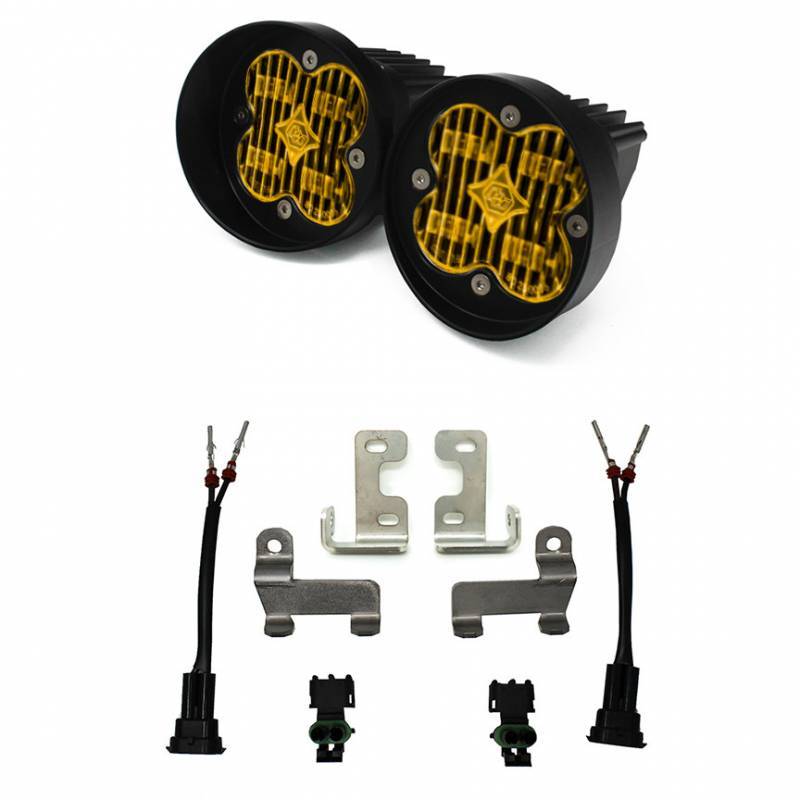

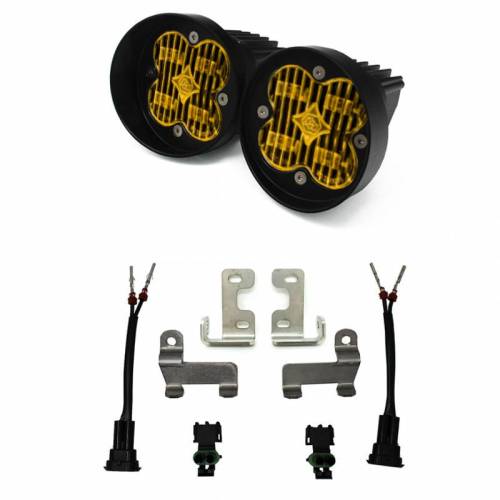

 Product Type  Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
 Description  Round; Wide Cornering; Amber; Pair
 Beam Pattern  Wide Cornering
 Lens Color  Amber
 Lighting Modes  Beam
 Light Quantity  2
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED
 Lighting Quantity  4/td>
 Brightness (Lumens)  2,480
 Wattage (W)  22
 Amperage Rating (A)  1.6
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  Yes
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Street Legal  Yes
 DOT Approved  Yes
 Standards/Compliance (SAE)  SAE Standard J583
 Standards/Compliance (SAE)  SAE Standard J583
 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

2014-2019 Toyota Highlander
2016-2021 Toyota RAV4

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.9 lbs.
  • W9.6000” x H4.8000” x L11.9000”
  • Free Ground Shipping | Exclusions Apply*
